Product details
The Wilwood Fox Body Mustang front hat mounts a twelve-bolt rotor ring. Check the 0.810-inch offset, five-hole flange and 3.06-inch register. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 170-6126

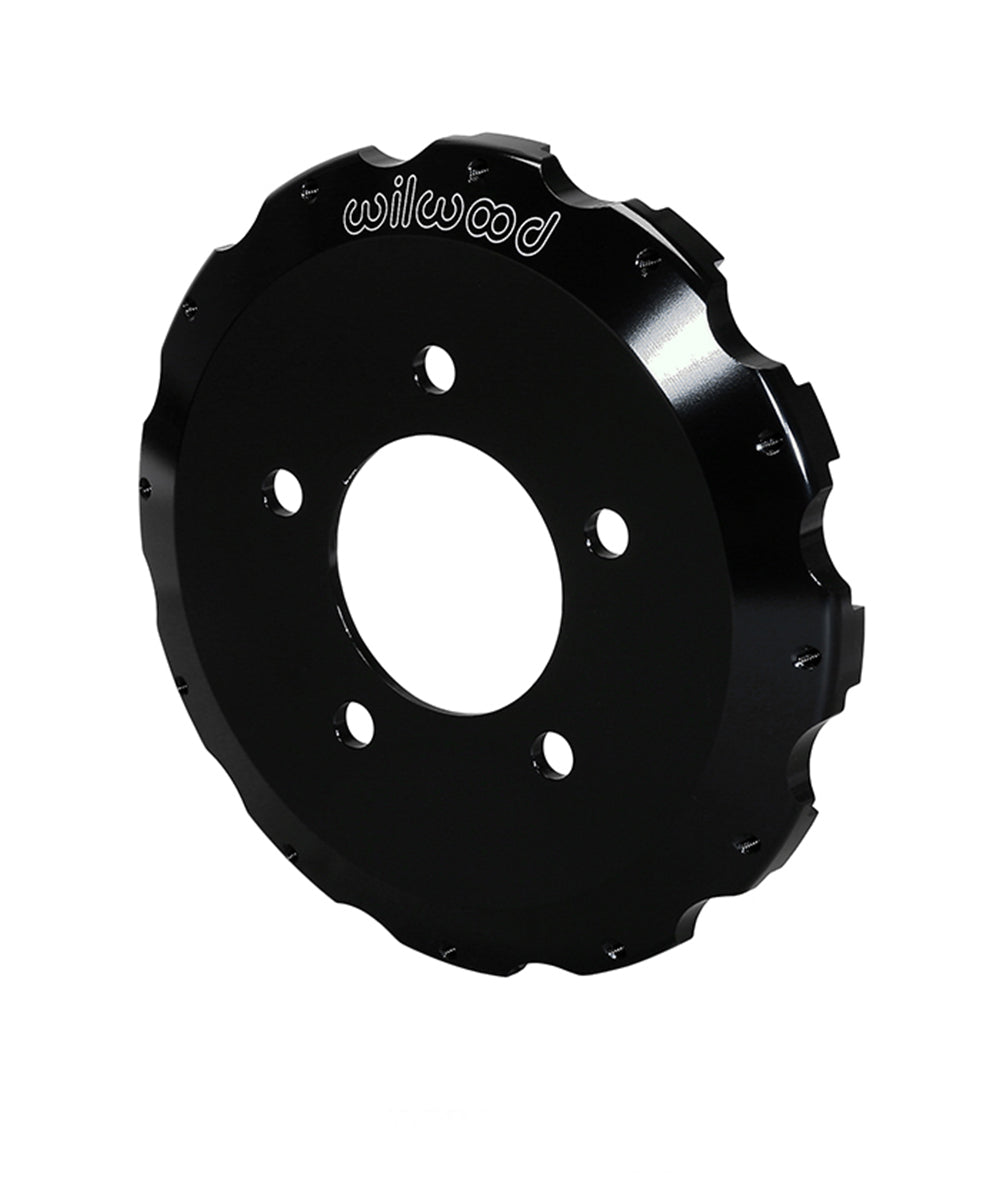

- Component: Short-Offset Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 0.810 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.50 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
- Rotor mounting hole/thread designation: 1/4-20
- Internal clearance diameter: 7.25 inches
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-4572; verify the specific rotor and attachment arrangement before ordering hardware
- Manufacturer installation note: 3.06 " diameter register with counterbore for register ring.
Fitment & Compatibility
The Fox Body Mustang front conversion must specify the same hat, hub register and rotor mount. This version uses a 5 x 4.50-inch hub flange and a twelve-bolt 8.75-inch rotor circle at 0.810-inch offset. Follow the brake-kit instructions for the caliper and ring; the Mustang name does not establish fitment with original or unrelated aftermarket brakes.
Manufacturer Reference
Wilwood component specifications and dimensions
