Product details

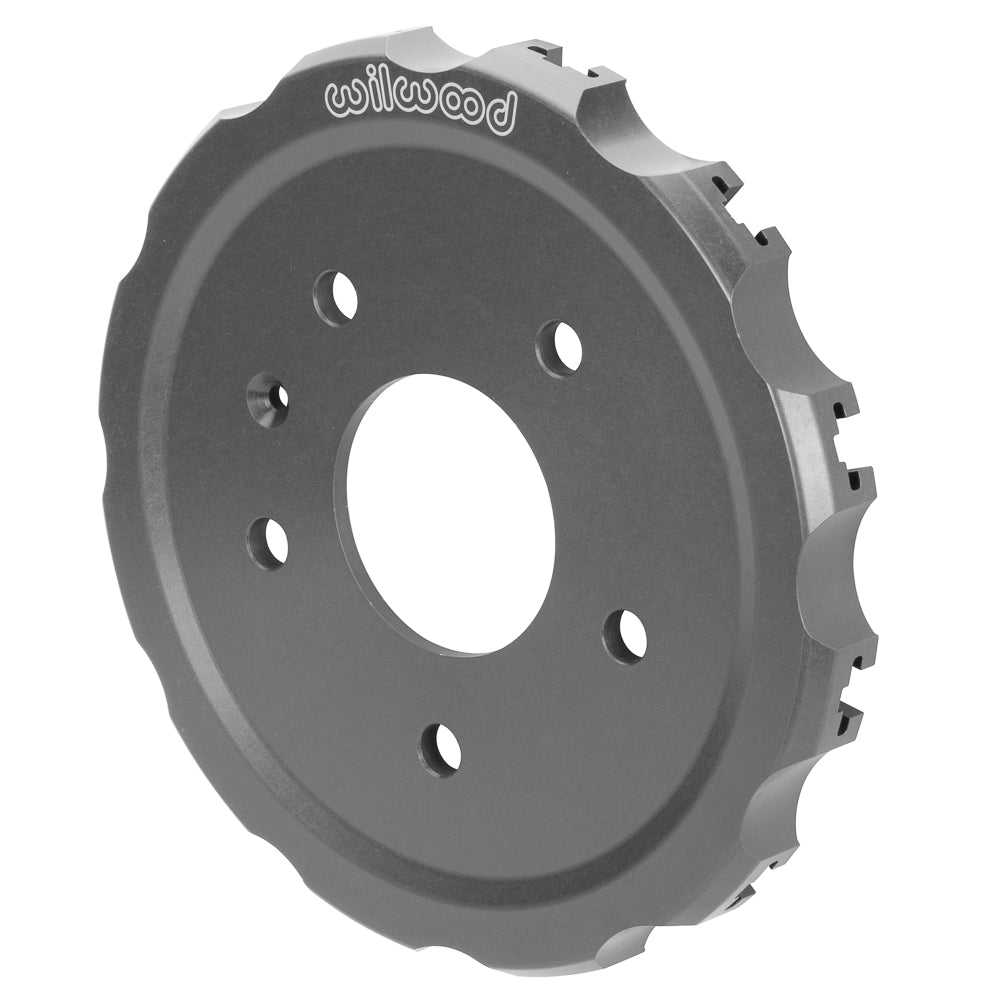

The Wilwood C7 Corvette front hat uses a bobbin-mounted twelve-bolt rotor. Verify the exact model-year package and 0.518-inch offset before ordering. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.
Technical Details
- Manufacturer part number: 170-15744
- Component: Dynamic Brake Rotor Hat
- Material: Aluminum
- Surface finish: Type III Anodize
- Rotor mounting method: Dynamic Mount
- Position in the specified brake assembly: Front
- Hat offset: 0.518 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.75 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.78 inches
- Rotor mounting hole/thread designation: Bobbin
- Internal clearance diameter: 7.11 inches
- Mounting-face thickness: 0.33 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-12759; verify the specific rotor and attachment arrangement before ordering hardware
Fitment & Compatibility
Use this replacement only within the specified Chevrolet Corvette C7 brake conversions. Compare the hub, caliper position and rotor attachment to the complete assembly drawing. Use the correct dynamic mounting hardware and rotor connection; an ordinary fixed-mount bolt set does not establish the specified floating assembly. The product-page application note extends C7 coverage to 2020, while other C7-specific Wilwood components end at 2019. Confirm the actual model year and Wilwood kit; this listing does not assert 2020 C8 compatibility.
Manufacturer Reference
Wilwood component specifications and dimensions
PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
