Product details

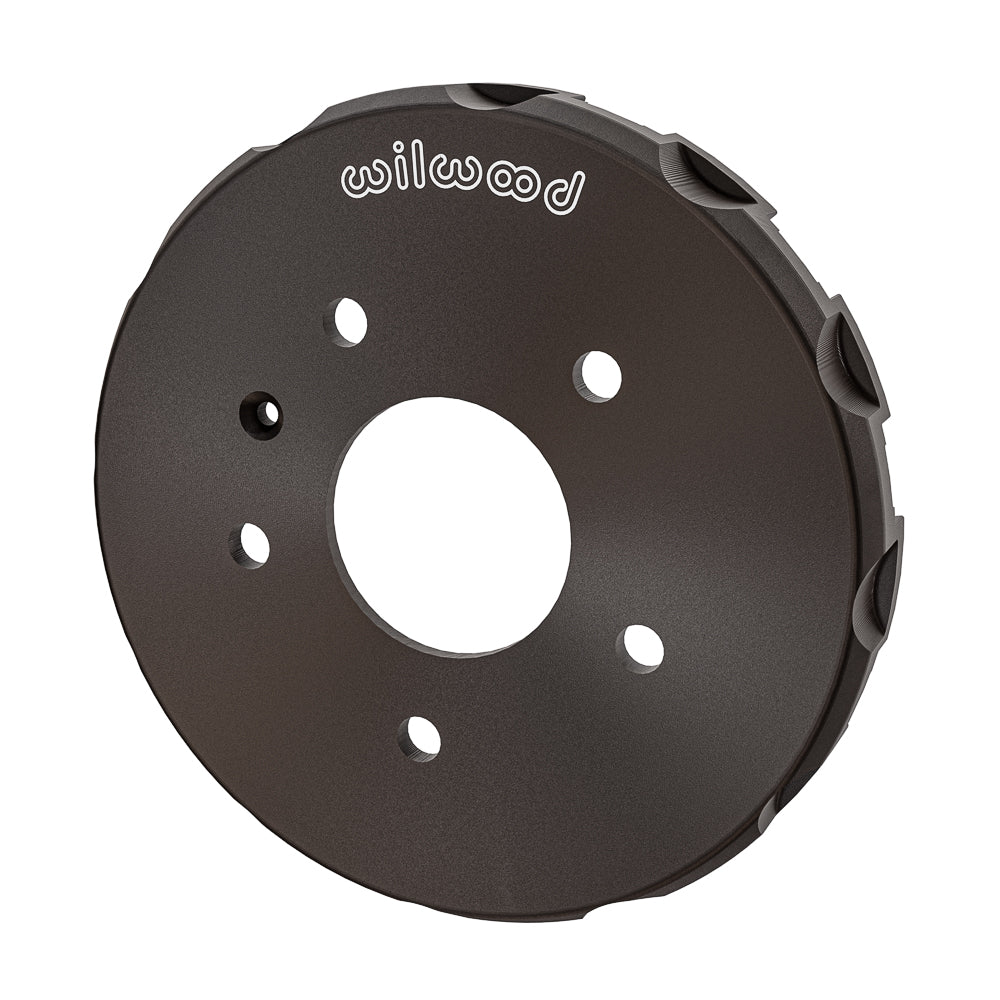

This Wilwood C7 Corvette front hat uses a 7.77-inch lug-drive ring and 0.518-inch offset. Check the exact conversion and rotor-retention system. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 170-15717
- Manufacturer-listed attachment hardware reference: 300-14912; verify the specific rotor and attachment arrangement before ordering hardware
- Manufacturer installation note: 300-14912 Dynamic Lug Mount Clip & Snap Ring kit are required for rotor mounting.
- Component: Lug-Drive Rotor Hat
- Material: Aluminum
- Surface finish: Type III Anodize
- Rotor mounting method: Dynamic Lug Mount
- Position in the specified brake assembly: Front
- Hat offset: 0.518 inch
- Rotor attachment interface: 12lug-7.77 inches; drive-lug connection, not a wheel bolt pattern
- Hub-flange mounting/clearance pattern(s): 5 x 4.75 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.78 inches
- Internal clearance diameter: 6.65 inches
- Mounting-face thickness: 0.33 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
Fitment & Compatibility
Check the existing Chevrolet Corvette C7 2014–2019 brake conversions against the dimensions above. The hub flange and rotor attachment are separate interfaces and both must match the intended brake package. Use the specified lug-drive friction ring and clip/snap-ring retention system. A conventional bolt-on ring is a different attachment arrangement.
Manufacturer Reference
Wilwood component specifications and dimensions
