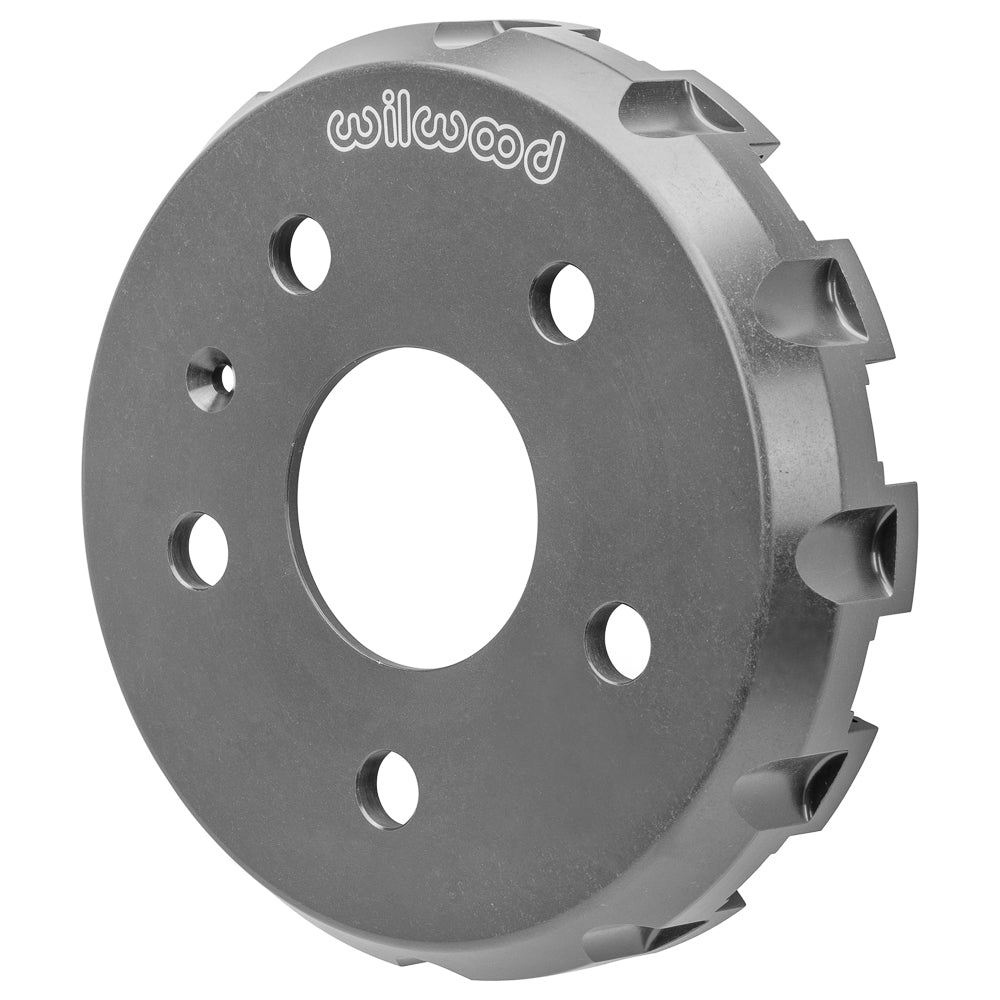

Wilwood Front Camaro (2010–2018) Lug-Drive Hat for a 7.77-Inch Rotor Interface

Twelve drive lugs on a 7.77-inch circle connect this Wilwood Camaro front hat to its rotor. Match 0.920-inch offset and the snap-ring retention system. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer part number: 170-15420
• Center register diameter: 2.66 inches
• Internal clearance diameter: 6.41 inches
• Mounting-face thickness: 0.30 inches
• Hub-side hole clearance diameter(s): 0.640 inches; these are clearance dimensions, not wheel-stud thread sizes
• Manufacturer-listed attachment hardware reference: 300-14912; verify the specific rotor and attachment arrangement before ordering hardware
• Manufacturer installation note: 300-14912 Dynamic Lug Mount Clip & Snap Ring kit are required for rotor mounting.
• Component: Lug-Drive Rotor Hat
• Material: Aluminum
• Surface finish: Type III Anodize
• Rotor mounting method: Dynamic Lug Mount
• Position in the specified brake assembly: Front
• Hat offset: 0.920 inch
• Rotor attachment interface: 12lug-7.77 inches; drive-lug connection, not a wheel bolt pattern
• Hub-flange mounting/clearance pattern(s): 5 x 4.72 inches; verify the actual hub and wheel-stud clearance

Fitment & Compatibility

This is a component for Chevrolet Camaro 2010–2018 brake conversions, not a complete brake kit. Check the hub location, rotor mounting surface and caliper alignment as a system before ordering. Use the specified lug-drive friction ring and clip/snap-ring retention system. A conventional bolt-on ring is a different attachment arrangement.

Manufacturer Reference

Wilwood component specifications and dimensions

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
