Product details

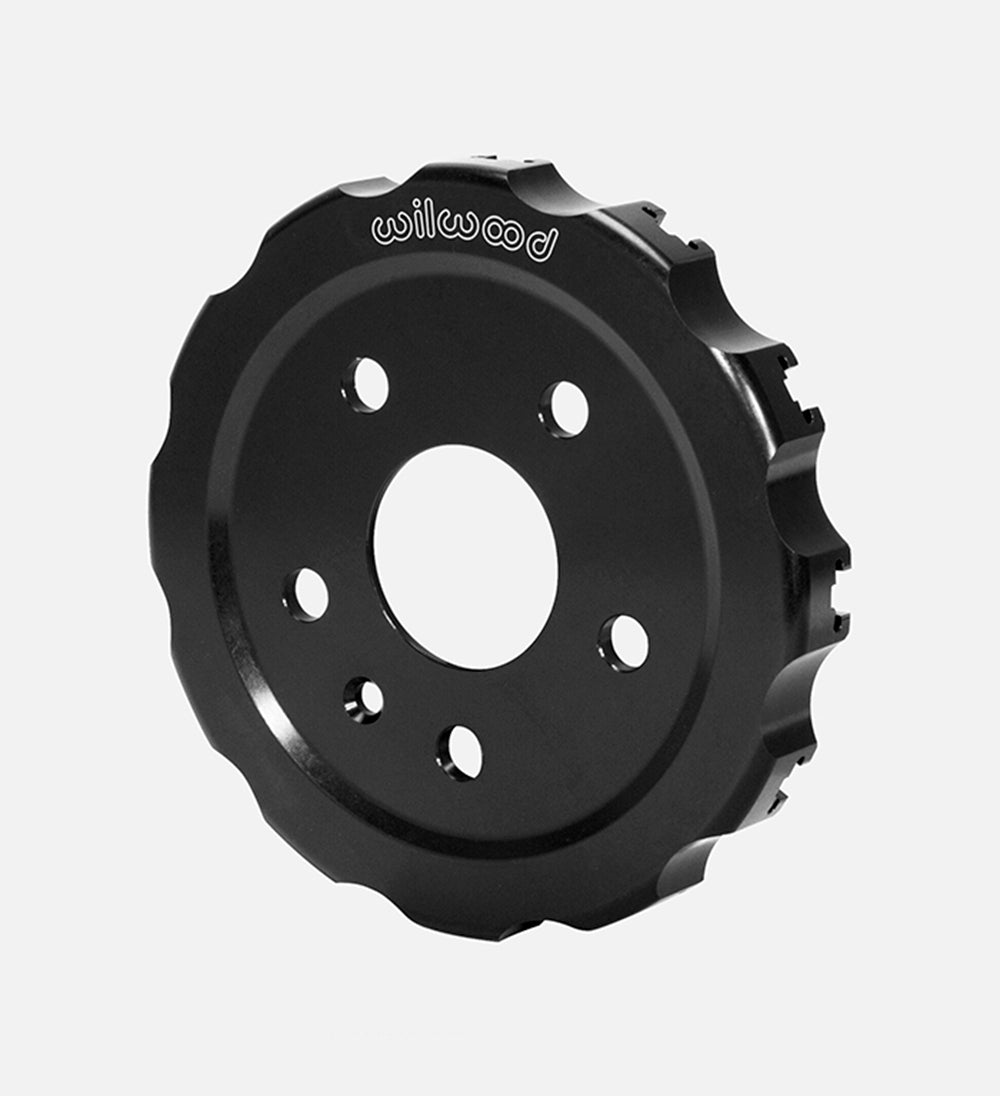

A 0.790-inch offset positions this Wilwood dynamic hat in the listed 2010–2015 Camaro front package. Confirm the 2.66-inch register and rotor mount. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.
Technical Details
- Manufacturer part number: 170-15229
- Position in the specified brake assembly: Front
- Hat offset: 0.790 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.72 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.66 inches
- Rotor mounting hole/thread designation: T-Nut
- Internal clearance diameter: 6.90 inches
- Mounting-face thickness: 0.30 inches
- Hub-side hole clearance diameter(s): 0.640 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-6656; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Dynamic Brake Rotor Hat
- Material: Aluminum
- Surface finish: Type III Anodize
- Rotor mounting method: Dynamic Mount
Fitment & Compatibility
Check the existing Chevrolet Camaro 2010–2015 brake conversions against the dimensions above. The hub flange and rotor attachment are separate interfaces and both must match the intended brake package. Use the correct dynamic mounting hardware and rotor connection; an ordinary fixed-mount bolt set does not establish the specified floating assembly.
Manufacturer Reference
Wilwood component specifications and dimensions
