Product details

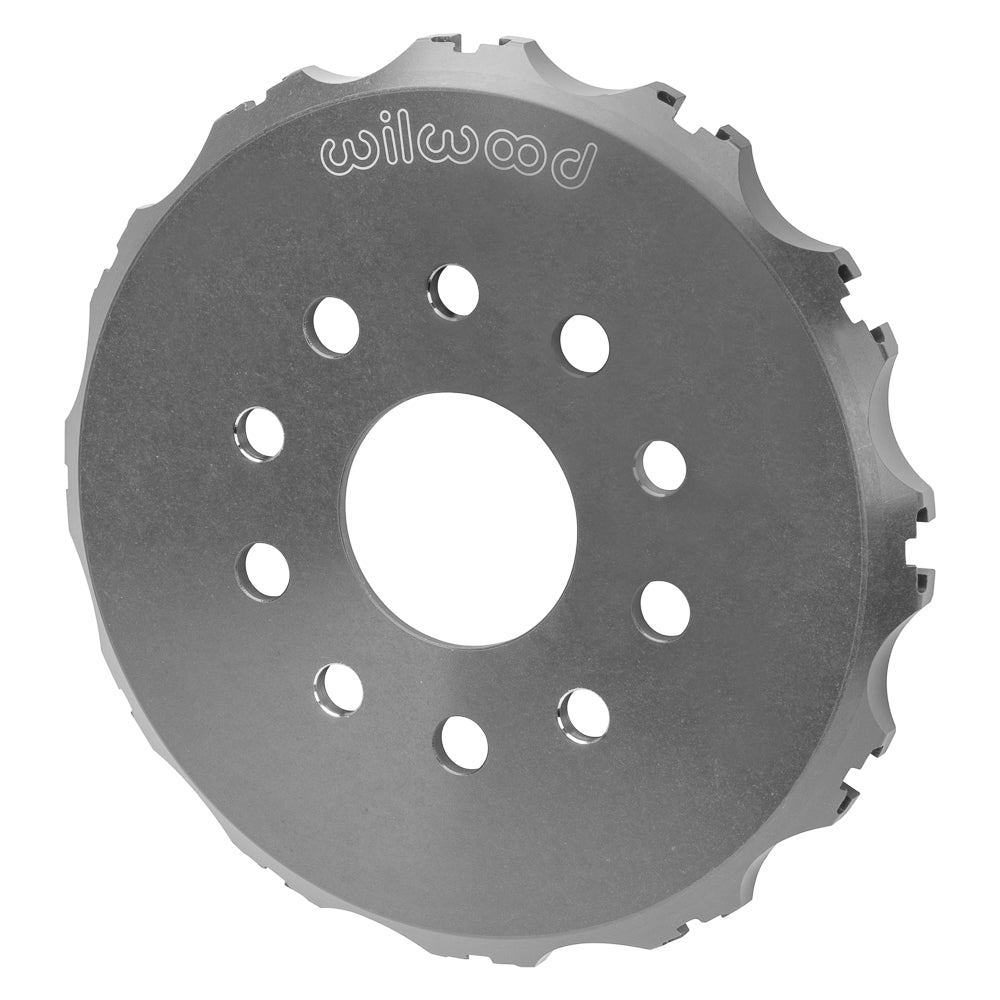

This Wilwood short-offset front hat carries a dynamic rotor assembly. Verify 0.540-inch offset, the 2.53-inch register and specified bobbin hardware. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer part number: 170-14869
- Rotor mounting hole/thread designation: T-Nut
- Internal clearance diameter: 8.01 inches
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.580 inches; these are clearance dimensions, not wheel-stud thread sizes
- Component: Dynamic Brake Rotor Hat
- Material: Aluminum
- Surface finish: Type III Anodize
- Rotor mounting method: Dynamic Mount
- Position in the specified brake assembly: Front
- Hat offset: 0.540 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.50 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.53 inches
Fitment & Compatibility
Match this component to the documented Matched dynamic brake systems. Confirm the mounting stack, center location and rotor hardware; vehicle model alone does not establish compatibility with a modified brake system. Use the correct dynamic mounting hardware and rotor connection; an ordinary fixed-mount bolt set does not establish the specified floating assembly.
Manufacturer Reference
Wilwood component specifications and dimensions
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
