Product details

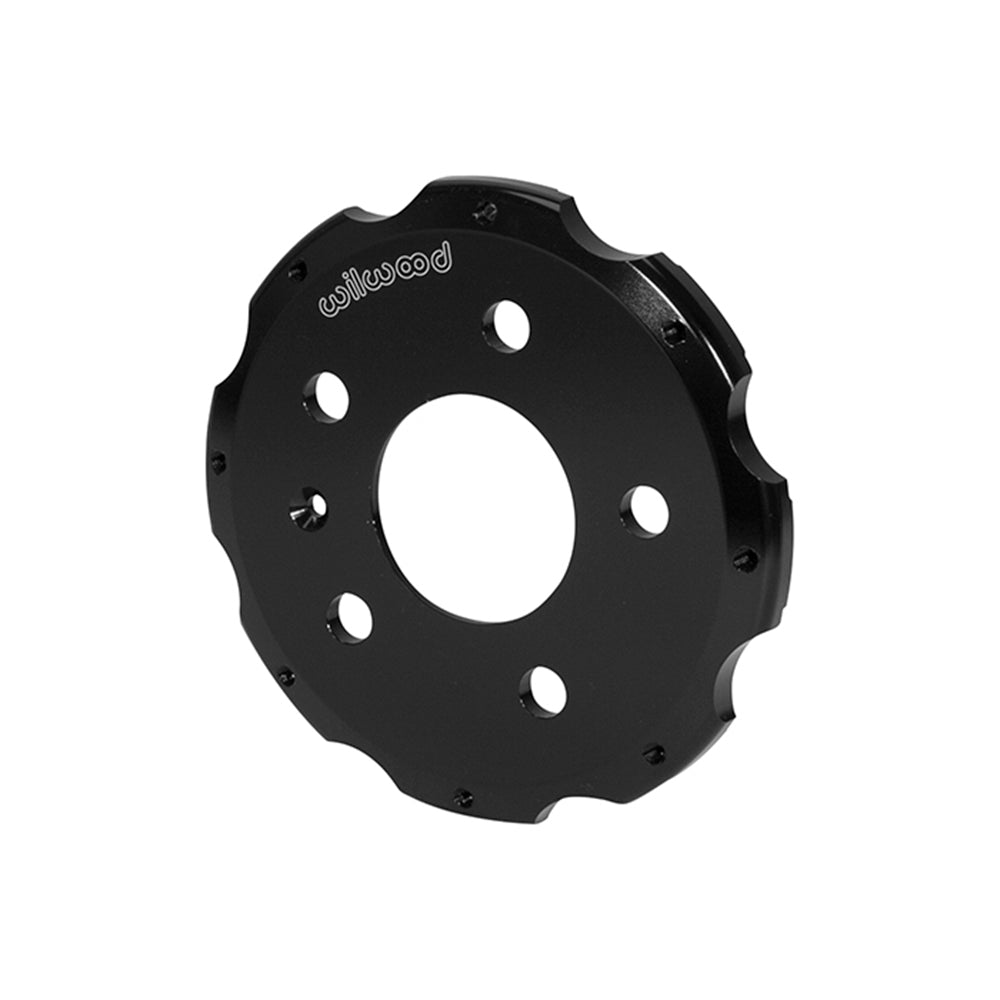

This Wilwood Audi A4 front hat takes an eight-bolt rotor and has 0.340-inch offset. Confirm its 0.31-inch mounting face and 2.68-inch register. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 170-14592
- Hub-side hole clearance diameter(s): 0.590 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-12120; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Short-Offset Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 0.340 inch
- Rotor attachment interface: 8 x 7.00 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.41 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.68 inches
- Rotor mounting hole/thread designation: 5/16-18
- Internal clearance diameter: 6.08 inches
- Mounting-face thickness: 0.31 inches
Fitment & Compatibility
Use this replacement only within the specified Audi A4 brake conversions. Compare the hub, caliper position and rotor attachment to the complete assembly drawing. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
