Product details

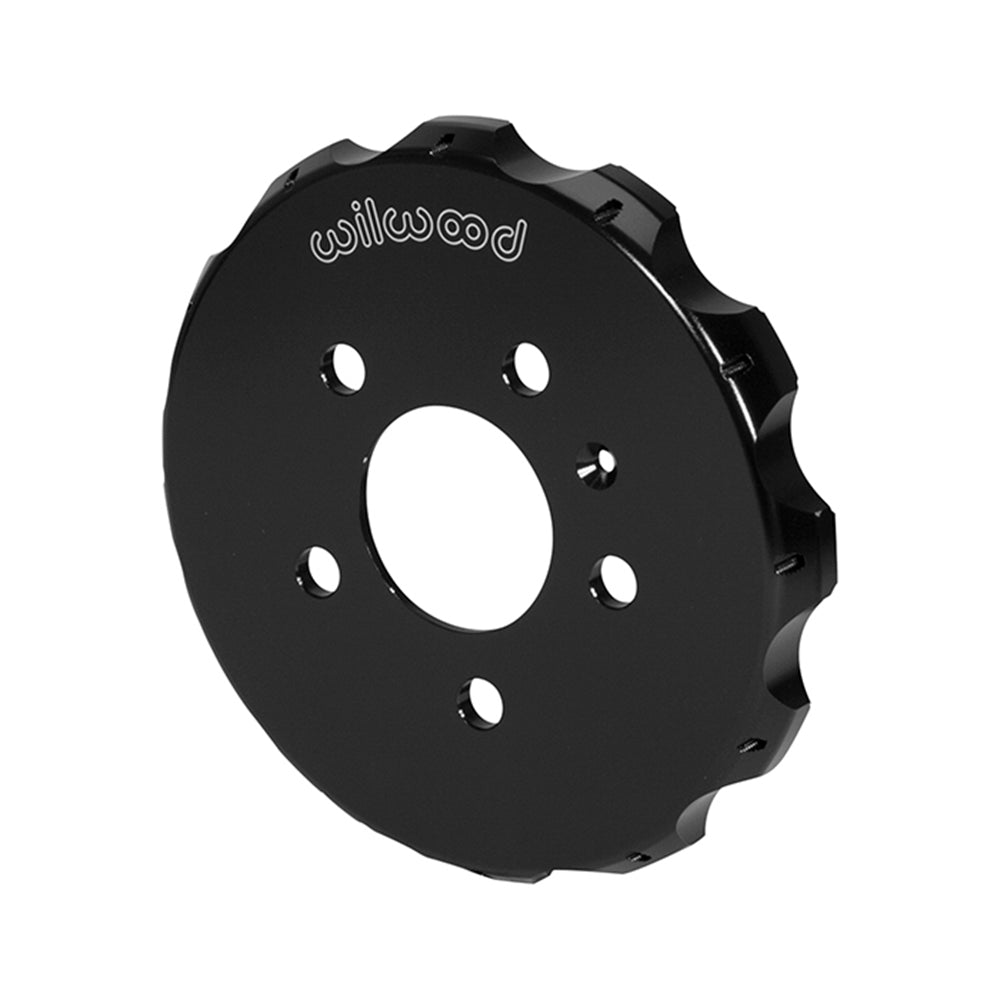

A 0.640-inch offset and 2.68-inch register identify this Wilwood Audi A5 front hat. Match the twelve-bolt rotor ring to the exact conversion. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 170-14585
- Mounting-face thickness: 0.28 inches
- Hub-side hole clearance diameter(s): 0.590 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8008; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Short-Offset Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 0.640 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.41 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.68 inches
- Rotor mounting hole/thread designation: 1/4-20
- Internal clearance diameter: 8.01 inches
Fitment & Compatibility
Select this hat for the exact Audi A5 brake conversions and installed hub arrangement. Compare the original part, rotor mounting circle and required hardware before replacing any component. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
