Product details

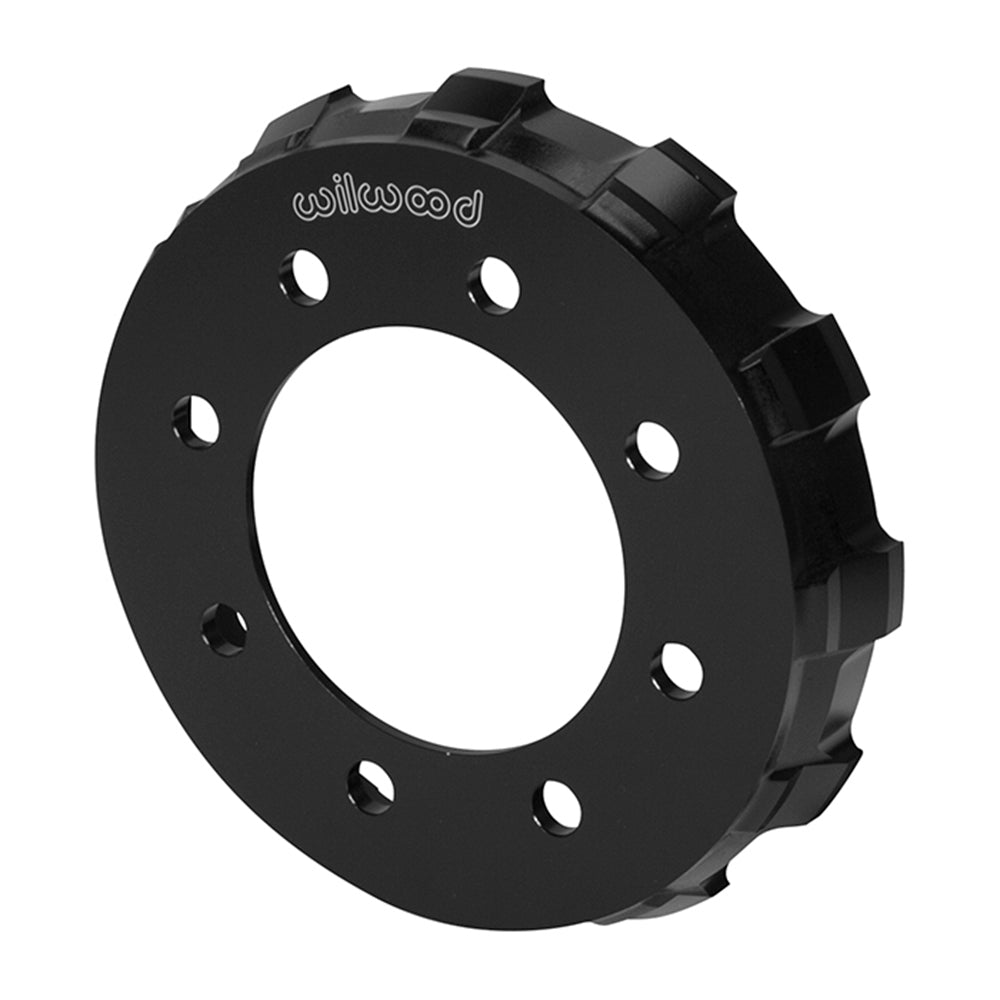

For specified 2013–2017 F250 conversions, this Wilwood hat uses 1.340-inch offset. Verify the eight-hole flange, 5.09-inch register and rotor ring. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.
Technical Details
- Manufacturer part number: 170-14560
- Internal clearance diameter: 8.61 inches
- Mounting-face thickness: 0.40 inches
- Hub-side hole clearance diameter(s): 0.640 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-14086; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Truck Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 1.340 inch
- Rotor attachment interface: 12 x 9.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 8 x 6.692 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 5.09 inches
- Rotor mounting hole/thread designation: 5/16-18
Fitment & Compatibility
Check the existing Ford F250 2013–2017 brake conversions against the dimensions above. The hub flange and rotor attachment are separate interfaces and both must match the intended brake package. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
