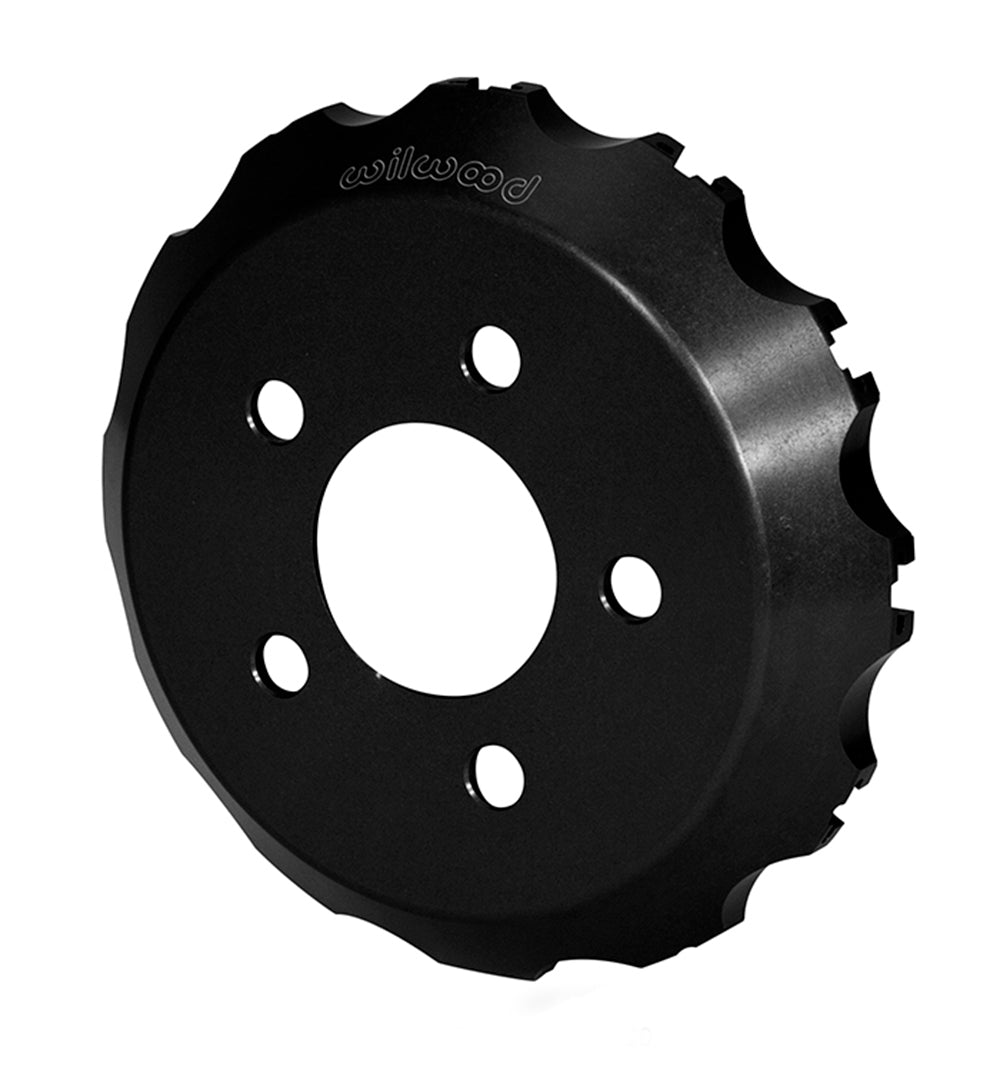

Wilwood Rear Mustang Race Hat with T-Nut Rotor Interface, Competition Use Only

The specified Mustang race conversion uses this Wilwood dynamic rear hat. Check 1.200-inch offset and select the required twelve-point rotor mount. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

• Manufacturer part number: 170-14430
• Material: Aluminum
• Surface finish: Type III Anodize
• Rotor mounting method: Dynamic Mount
• Position in the specified brake assembly: Rear
• Hat offset: 1.200 inch
• Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
• Hub-flange mounting/clearance pattern(s): 5 X 4.50 inches; verify the actual hub and wheel-stud clearance
• Center register diameter: 2.80 inches
• Rotor mounting hole/thread designation: T-Nut
• Internal clearance diameter: 7.25 inches
• Mounting-face thickness: 0.25 inches
• Hub-side hole clearance diameter(s): 0.630 inches; these are clearance dimensions, not wheel-stud thread sizes
• Manufacturer-listed attachment hardware reference: 230-6656; verify the specific rotor and attachment arrangement before ordering hardware
• Use restriction: Competition use only; Wilwood states that this dynamic mount hat is not intended for street use.
• Component: Dynamic Brake Rotor Hat

Fitment & Compatibility

For Ford Mustang racing brake conversions, compare the replacement with the actual hat and complete brake-kit instructions. A matching flange pattern alone does not establish rotor alignment or caliper clearance. Use the correct dynamic mounting hardware and rotor connection; an ordinary fixed-mount bolt set does not establish the specified floating assembly. This is the rear Mustang race configuration. Wilwood explicitly excludes street use for this hat.

Manufacturer Reference

Wilwood component specifications and dimensions · Assembly instructions DS1215

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
