Product details
The C10 ProSpindle conversion uses this Wilwood front hat with 1.380-inch offset. Verify the specific hub, rotor ring and twelve-bolt connection. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 170-14209
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8008; verify the specific rotor and attachment arrangement before ordering hardware
- Manufacturer installation note: 3.06 " diameter register with counterbore for register ring.

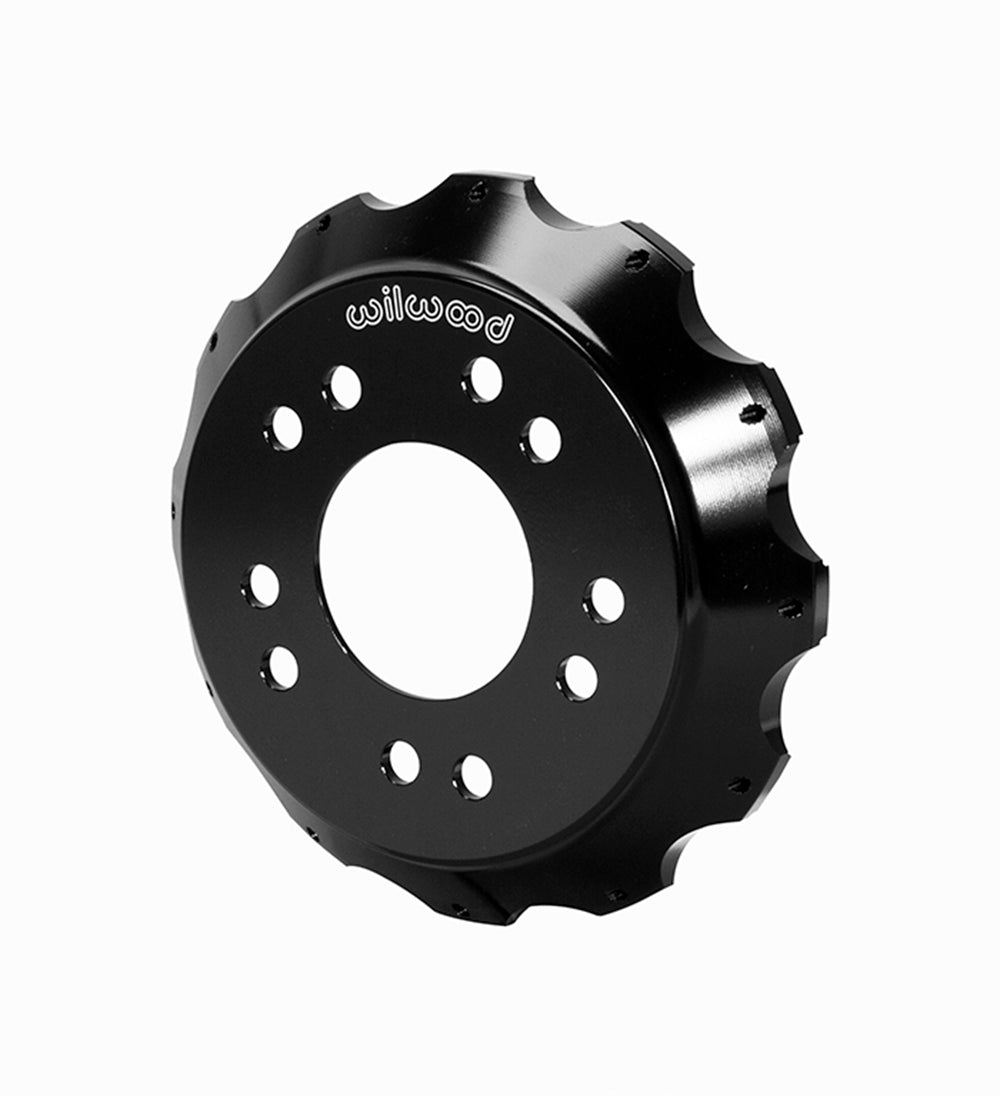

- Component: Flared-Bell Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 1.380 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.75, 5 x 5.00 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
- Rotor mounting hole/thread designation: 1/4-28
- Internal clearance diameter: 6.58 inches
Fitment & Compatibility
Use this front hat with the specified C10 ProSpindle brake conversion. Its 1.380-inch offset and 3.06-inch center locate the ring on the matching hub; the flange offers 5 x 4.75 and 5 x 5.00-inch clearance patterns. The rotor fastens separately on a twelve-hole 8.75-inch circle. Confirm the actual ProSpindle kit and required rotor bolts rather than selecting from a truck model alone.
