Product details

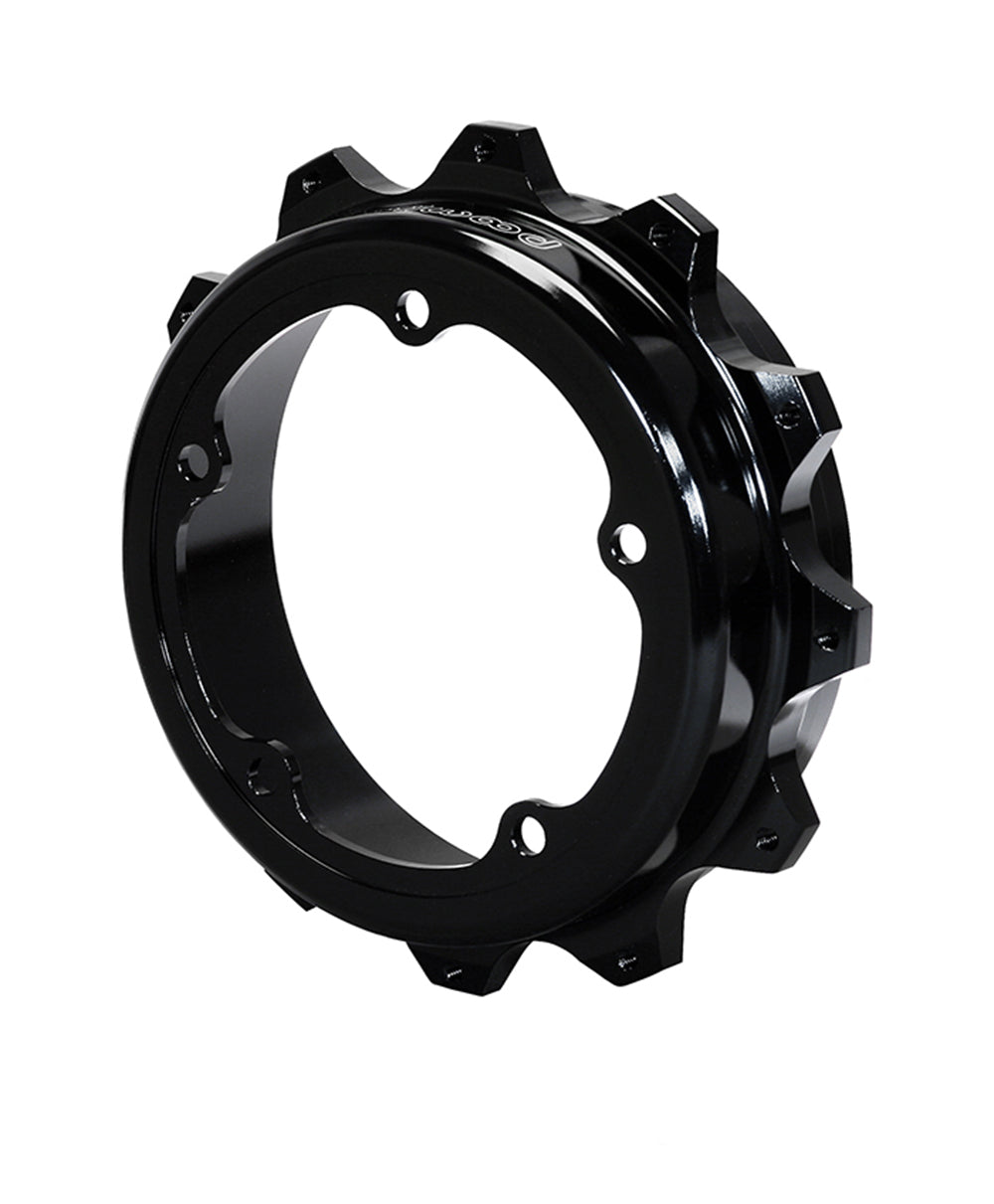

This Wilwood Strange Engineering floater hat has a 5.00-inch register and 1.660-inch offset. Check the parking mechanism and 5 x 5.75 flange. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.
Technical Details
- Manufacturer part number: 170-13906
- Component: Parking-Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Rear
- Hat offset: 1.660 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 5.75 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 5.00 inches
- Rotor mounting hole/thread designation: 1/4-20
- Parking-shoe bore: 7.23 inches
- Internal clearance diameter: 6.85 inches
- Mounting-face thickness: 0.19 inches
- Hub-side hole clearance diameter(s): 0.390 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8008; verify the specific rotor and attachment arrangement before ordering hardware
Fitment & Compatibility
For Strange Engineering floater brake systems, compare the replacement with the actual hat and complete brake-kit instructions. A matching flange pattern alone does not establish rotor alignment or caliper clearance. The parking-shoe diameter, anchor arrangement and complete drum-in-hat mechanism must match. A bare hat is not a complete parking-brake assembly.
Manufacturer Reference
Wilwood component specifications and dimensions
