Product details

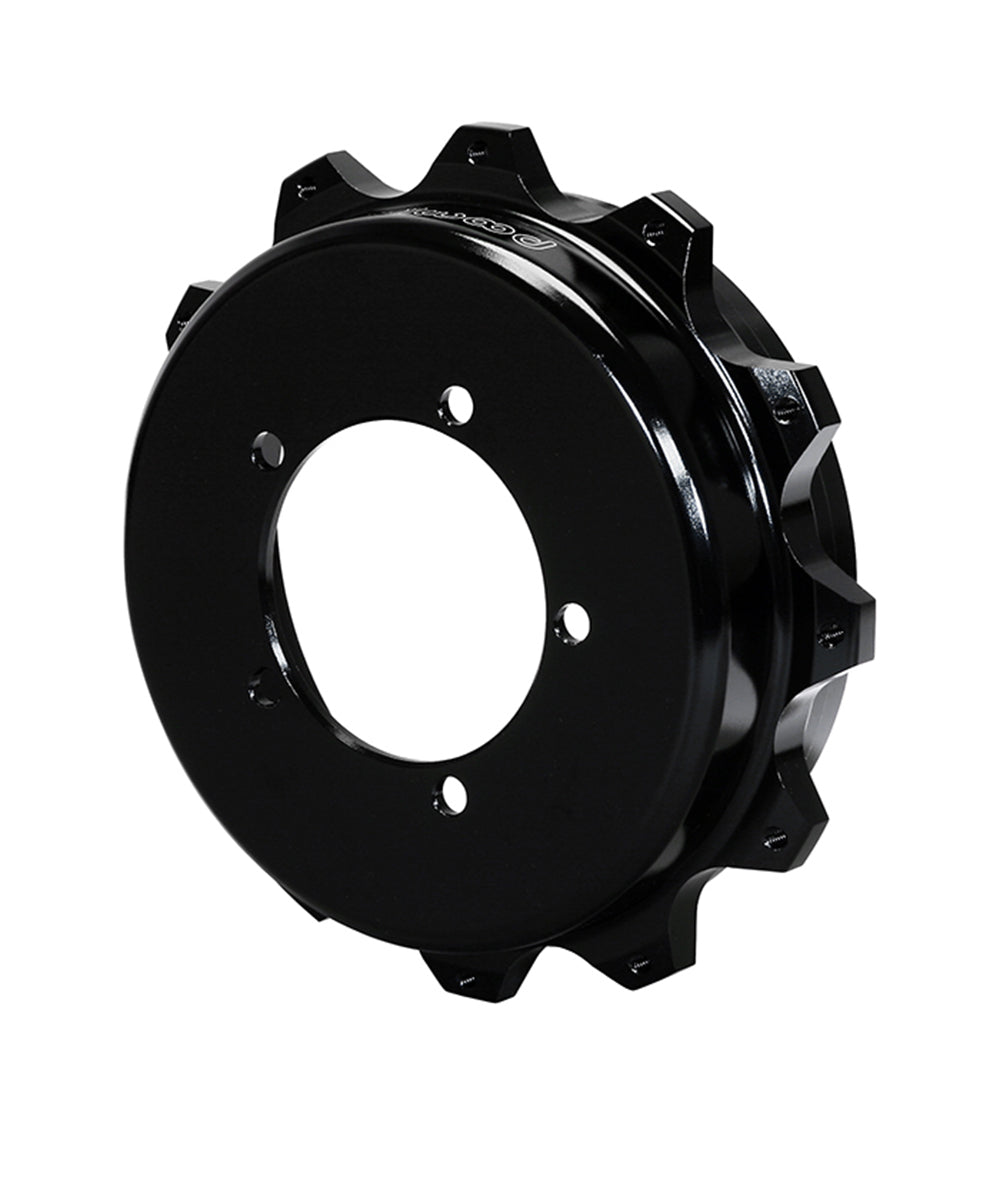

For the specified Speedway Engineering floater, this Wilwood rear hat uses 1.720-inch offset. Confirm the 3.53-inch register and parking assembly. Wilwood Engineering is a Camarillo, California manufacturer founded by Bill Wood in 1977. Disc brake design and manufacturing extend across calipers, brake rotors, master cylinders, valves, fittings and brake lines. Parts for street-performance, specialized applications and motorsport must be selected to meet the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 170-13905
- Manufacturer-listed attachment hardware reference: 230-8008; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Parking-Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Rear
- Hat offset: 1.720 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.25 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.53 inches
- Rotor mounting hole/thread designation: 1/4-20
- Parking-shoe bore: 7.23 inches
- Internal clearance diameter: 6.85 inches
- Mounting-face thickness: 0.18 inches
- Hub-side hole clearance diameter(s): 0.390 inches; these are clearance dimensions, not wheel-stud thread sizes
Fitment & Compatibility
This is a component for Speedway Engineering floater brake systems, not a complete brake kit. Check the hub location, rotor mounting surface and caliper alignment as a system before ordering. The parking-shoe diameter, anchor arrangement and complete drum-in-hat mechanism must match. A bare hat is not a complete parking-brake assembly.
Manufacturer Reference
Wilwood component specifications and dimensions
