Product details

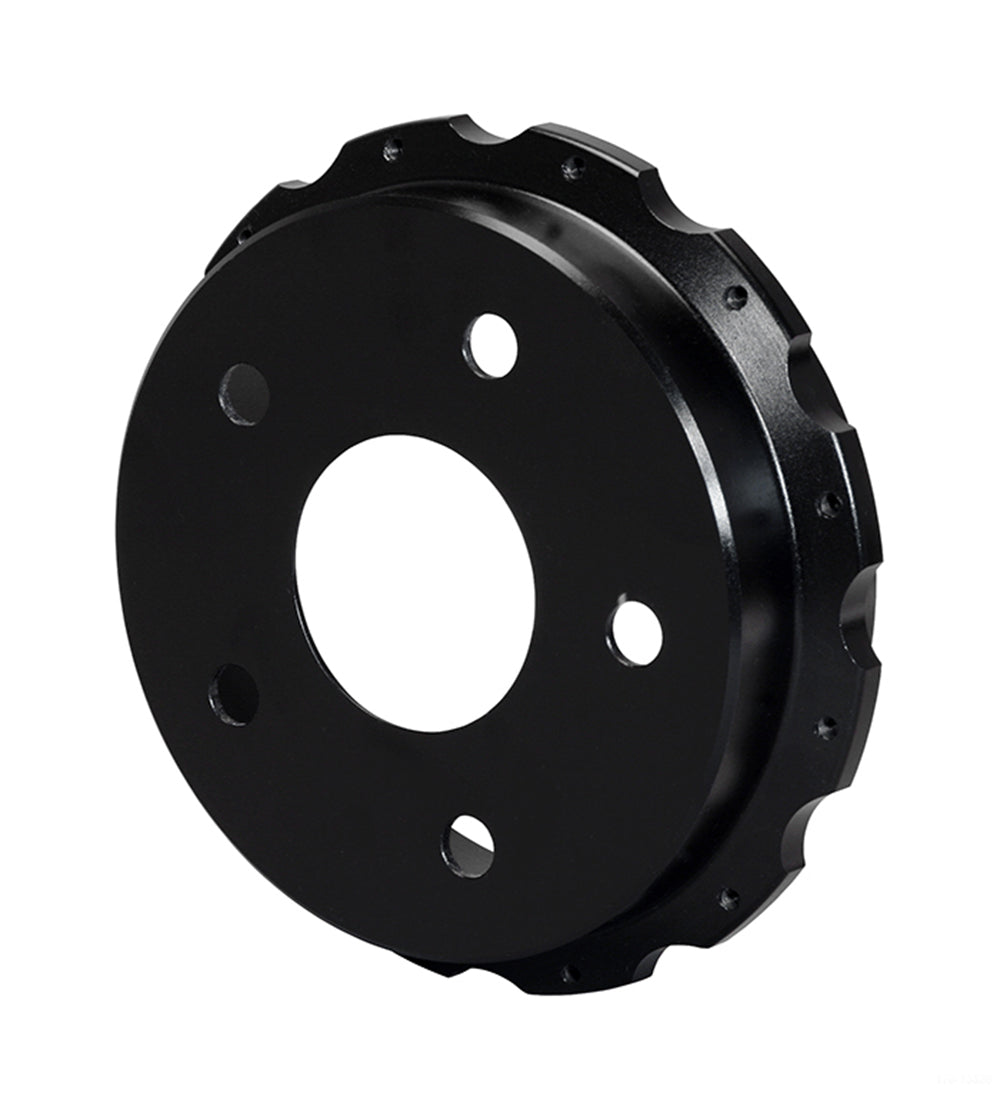

An iron Wilwood parking hat provides the 7.23-inch shoe interface for the specified Bronco conversion. Check 1.540-inch offset and rotor hardware. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.
Technical Details
- Manufacturer part number: 170-13326
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 5.50 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
- Rotor mounting hole/thread designation: 1/4-28
- Parking-shoe bore: 7.23 inches
- Internal clearance diameter: 6.85 inches
- Mounting-face thickness: 0.18 inches
- Hub-side hole clearance diameter(s): 0.640 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8217; verify the specific rotor and attachment arrangement before ordering hardware
- Manufacturer installation note: 3.06 " diameter register with counterbore for register ring.
- Component: Parking-Brake Rotor Hat
- Material: Iron
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Rear
- Hat offset: 1.540 inch
Fitment & Compatibility
Check the existing Ford Bronco brake conversions against the dimensions above. The hub flange and rotor attachment are separate interfaces and both must match the intended brake package. The parking-shoe diameter, anchor arrangement and complete drum-in-hat mechanism must match. A bare hat is not a complete parking-brake assembly.
Manufacturer Reference
Wilwood component specifications and dimensions
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
