Product details

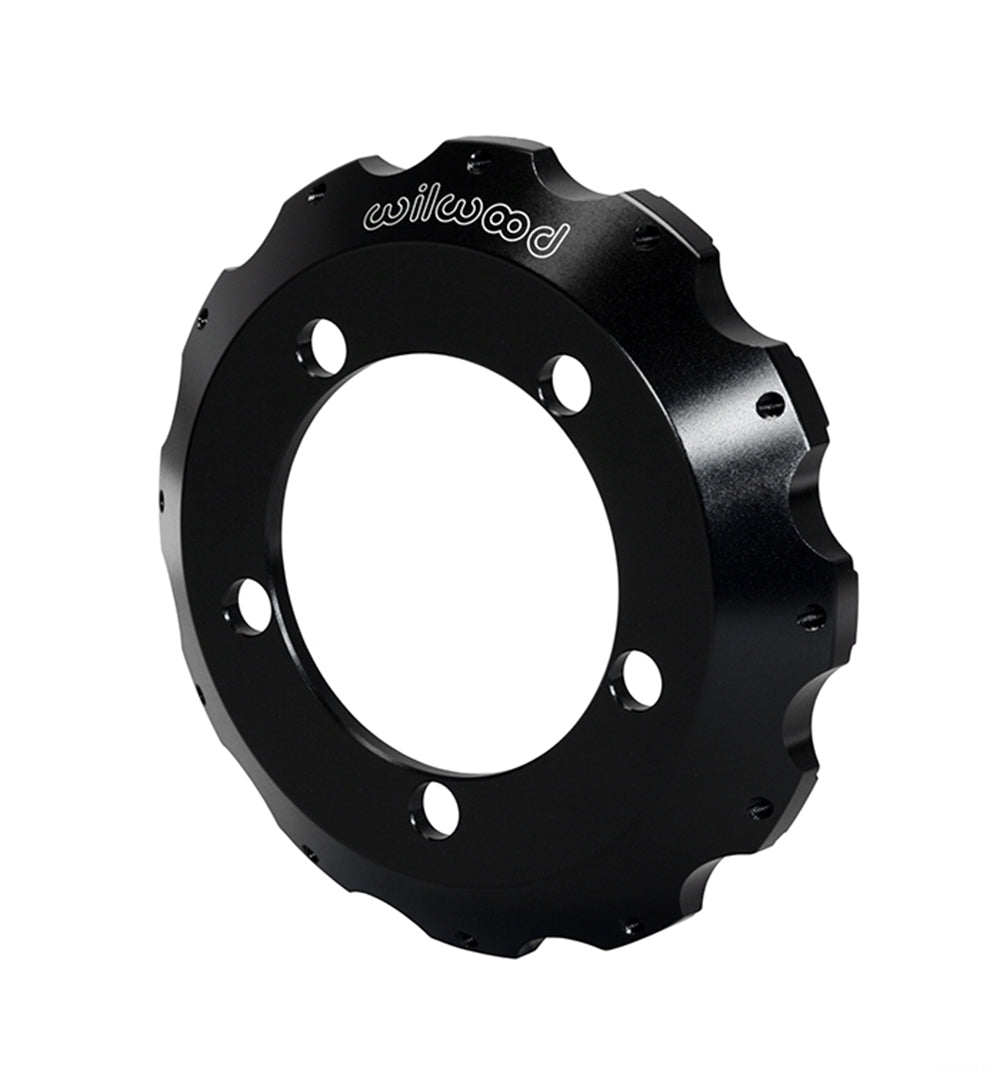

The Wilwood Bronco front hat has a 4.67-inch register and twelve-bolt rotor mount. Confirm the offset reference and supplied dimensions with Wilwood. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.
Technical Details
- Manufacturer part number: 170-13314
- Manufacturer-listed attachment hardware reference: 230-8008; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Short-Offset Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 1.000 inch on the product and kit pages; 1.300 inches in DS1023/DS1024. Confirm the supplied dimension and measurement reference with Wilwood.
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 5.50 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 4.67 inches
- Rotor mounting hole/thread designation: 1/4-20
- Internal clearance diameter: 7.05 inches
- Mounting-face thickness: 0.30 inches
- Hub-side hole clearance diameter(s): 0.640 inches; these are clearance dimensions, not wheel-stud thread sizes
Fitment & Compatibility
The specified Ford Bronco brake conversions must use the same hat geometry and rotor interface. Verify the hub register and offset measurement reference before assembling the brake system. Wilwood publishes 1.000 inch on the product and kit pages and 1.300 inches in DS1023/DS1024. Confirm the supplied offset and its reference faces; the measurements are not treated as interchangeable. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions · Assembly instructions DS1023
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
