Product details

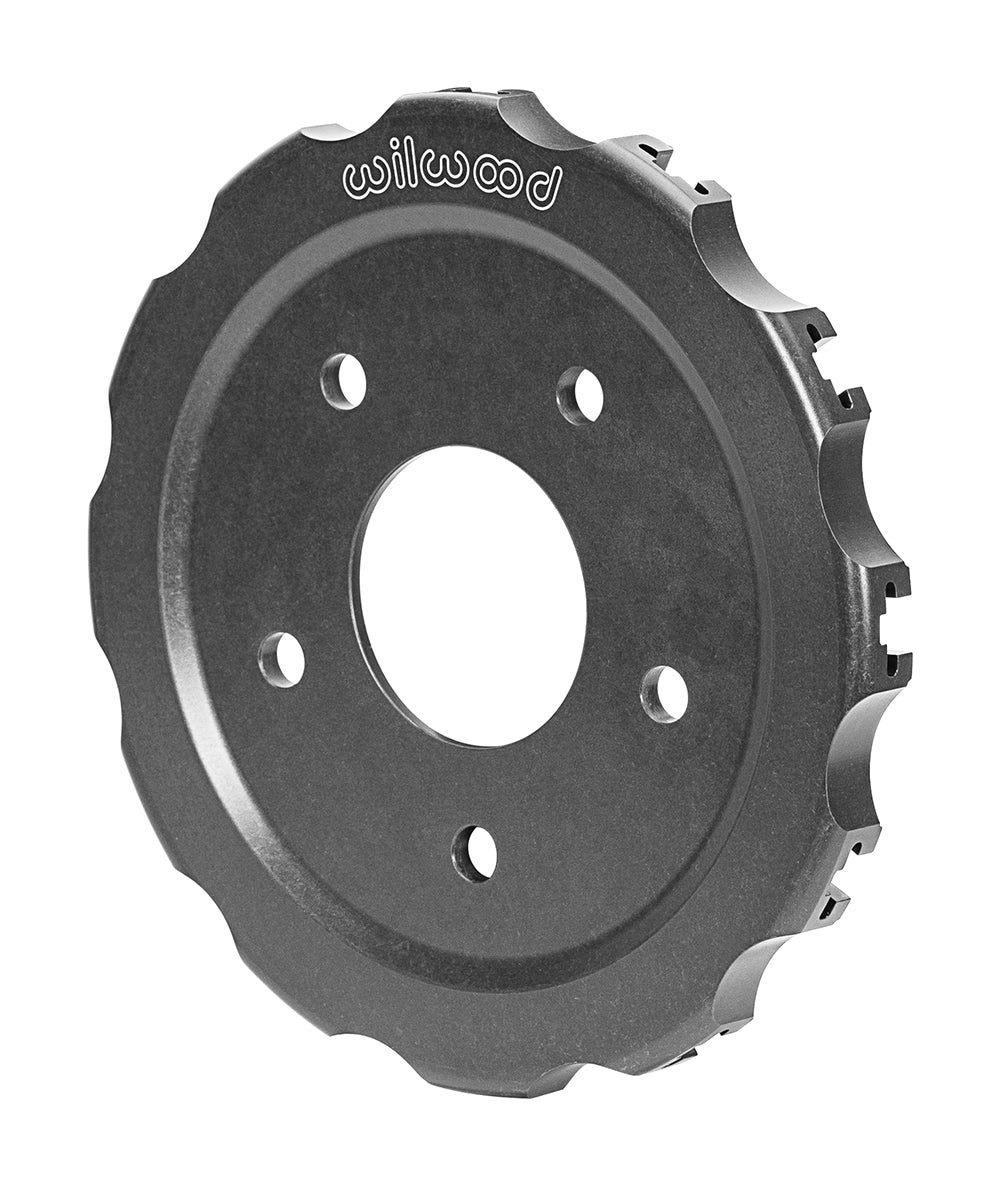

A 0.290-inch offset keeps this Wilwood dynamic front hat shallow. Match its bobbin hardware, 2.78-inch register and five-hole hub flange. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.
Technical Details
- Manufacturer part number: 170-13170
- Hub-flange mounting/clearance pattern(s): 5 x 4.75 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.78 inches
- Rotor mounting hole/thread designation: Bobbin
- Internal clearance diameter: 6.90 inches
- Mounting-face thickness: 0.30 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Attachment hardware: Obtain the correct part-specific hardware specification from Wilwood
- Manufacturer installation note: Wheel mounting pad must not be larger than 6.00" to fit into inset area of this hat.
- Component: Dynamic Bobbin-Mount Rotor Hat
- Material: Aluminum
- Surface finish: Type III Anodize
- Rotor mounting method: Dynamic Mount
- Position in the specified brake assembly: Front
- Hat offset: 0.290 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
Fitment & Compatibility
For Matched dynamic brake systems, compare the replacement with the actual hat and complete brake-kit instructions. A matching flange pattern alone does not establish rotor alignment or caliper clearance. Use the correct dynamic mounting hardware and rotor connection; an ordinary fixed-mount bolt set does not establish the specified floating assembly.
Manufacturer Reference
Wilwood component specifications and dimensions
