Product details

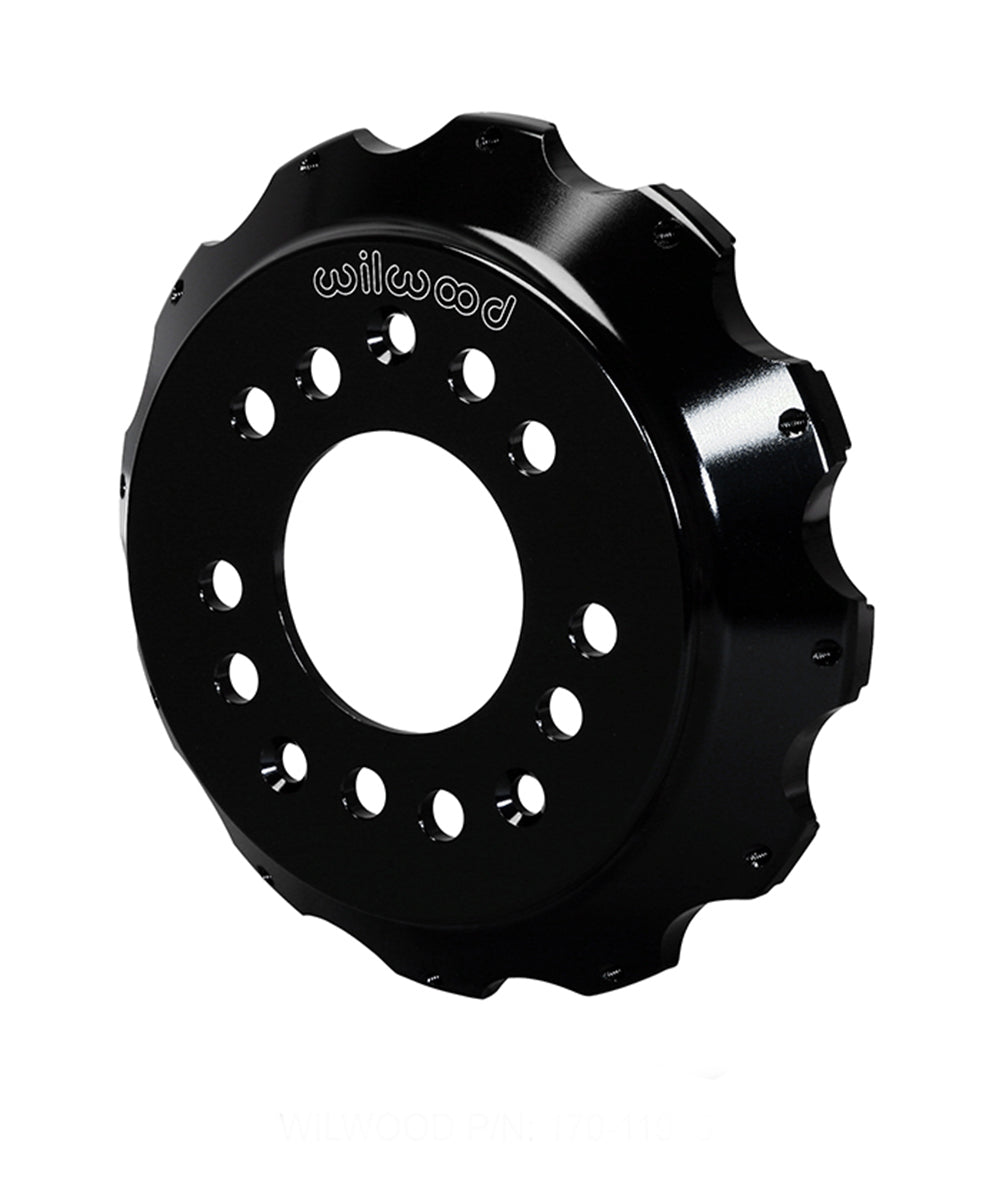

Wilwood lists this 1.380-inch-offset front hat for 1993–1996 RX-7 conversions. Verify the rotor circle, hub register and attachment hardware. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.
Technical Details
- Manufacturer part number: 170-11965
- Rotor mounting hole/thread designation: 1/4-20
- Internal clearance diameter: 6.40 inches
- Mounting-face thickness: 0.28 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8008; verify the specific rotor and attachment arrangement before ordering hardware
- Manufacturer installation note: 3.06 " diameter register with counterbore for register ring.
- Component: Flared-Bell Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 1.380 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 X 4.50, 5 X 4.75 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
Fitment & Compatibility
Select this hat for the exact Mazda RX-7 1993–1996 brake conversions and installed hub arrangement. Compare the original part, rotor mounting circle and required hardware before replacing any component. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
