Product details
Wilwood lists this 1.200-inch-offset hat for Magnum/Challenger conversions. Match the front kit, 5 x 4.53-inch flange and twelve-bolt rotor. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 170-11766
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 1.200 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 X 4.53 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
- Rotor mounting hole/thread designation: 1/4-20
- Internal clearance diameter: 7.09 inches
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.630 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-4572; verify the specific rotor and attachment arrangement before ordering hardware
- Manufacturer installation note: 3.06 " diameter register with counterbore for register ring.

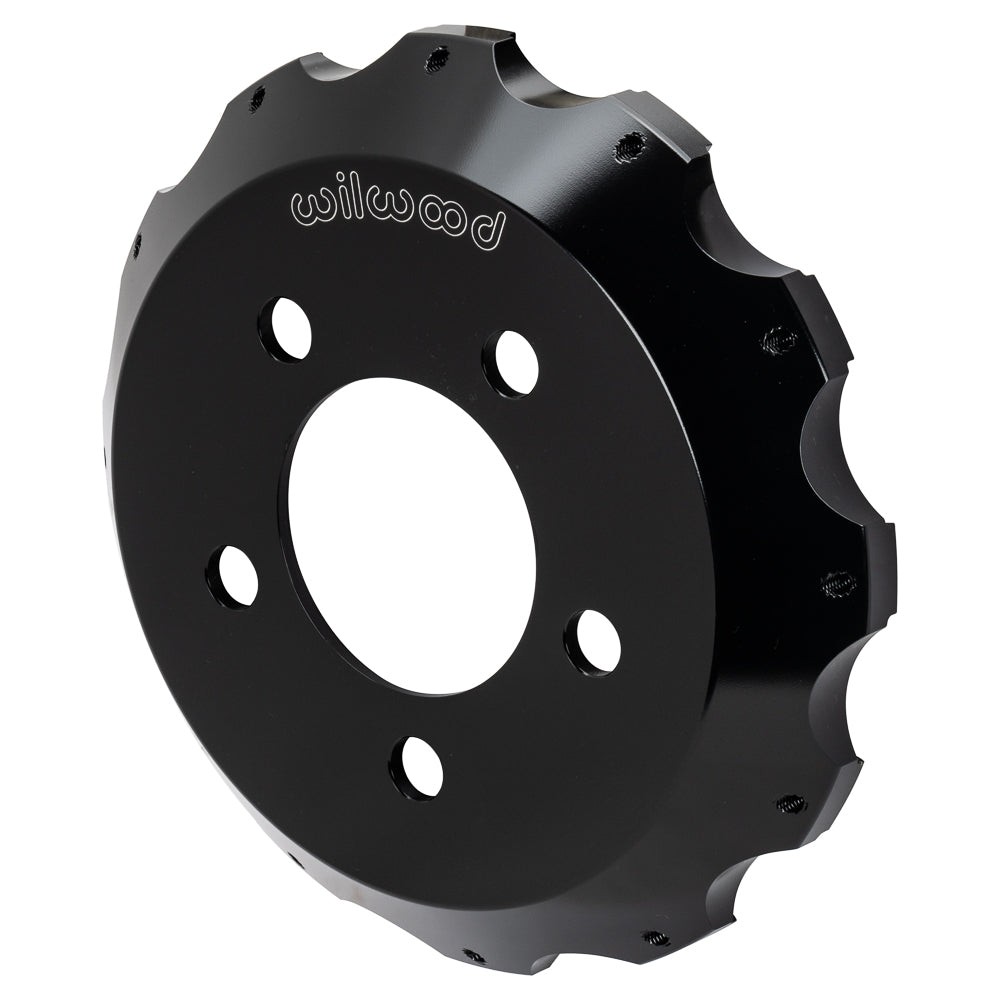

- Component: Flared-Bell Brake Rotor Hat
- Material: Aluminum
Fitment & Compatibility
Use this replacement only within the specified Dodge Magnum and Challenger brake conversions. Compare the hub, caliper position and rotor attachment to the complete assembly drawing. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
