Product details

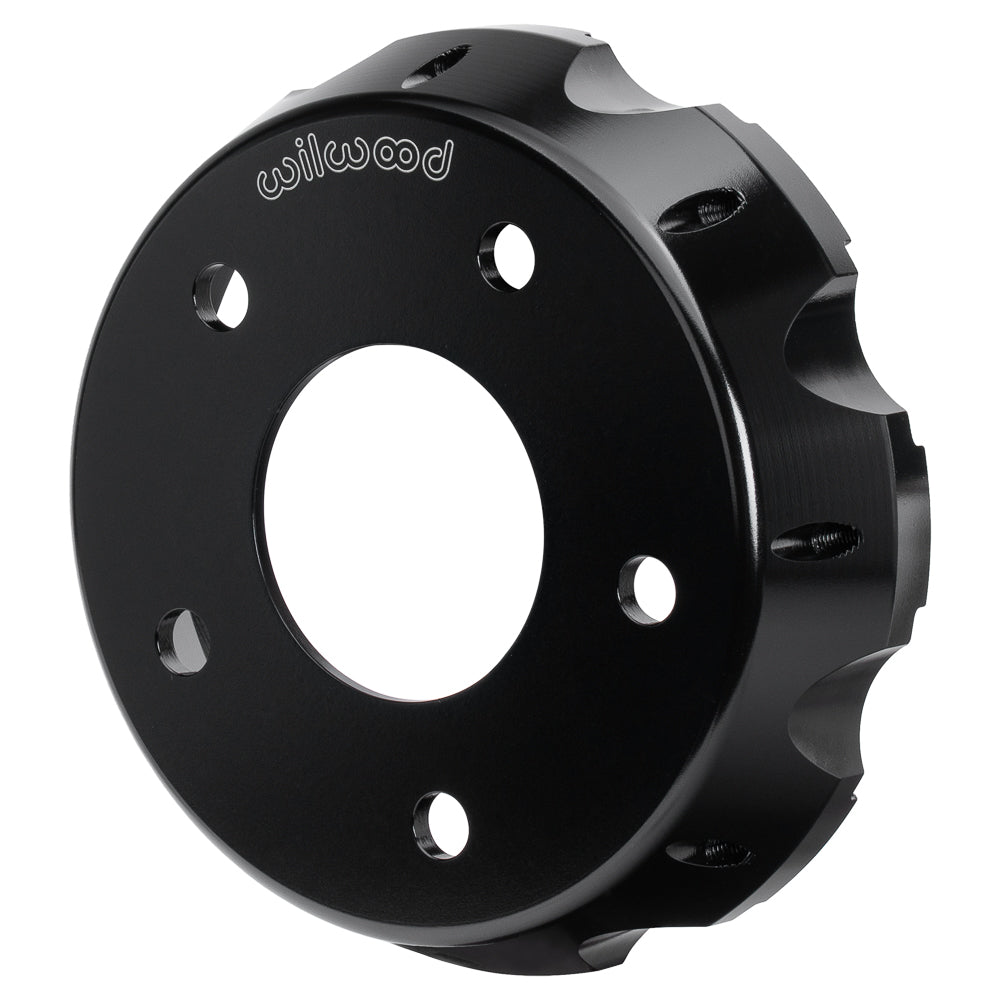

A 2.78-inch register and 1.590-inch offset identify this Wilwood Camaro drag hat. Confirm the 1998–2002 conversion and separate rotor fasteners. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.
Technical Details
- Manufacturer part number: 170-10782
- Center register diameter: 2.78 inches
- Rotor mounting hole/thread designation: 5/16-18
- Internal clearance diameter: 6.04 inches
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8390; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Drag Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 1.590 inch
- Rotor attachment interface: 8 x 7.00 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.75 inches; verify the actual hub and wheel-stud clearance
Fitment & Compatibility
Check the existing Chevrolet Camaro 1998–2002 drag brake conversions against the dimensions above. The hub flange and rotor attachment are separate interfaces and both must match the intended brake package. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
