Product details

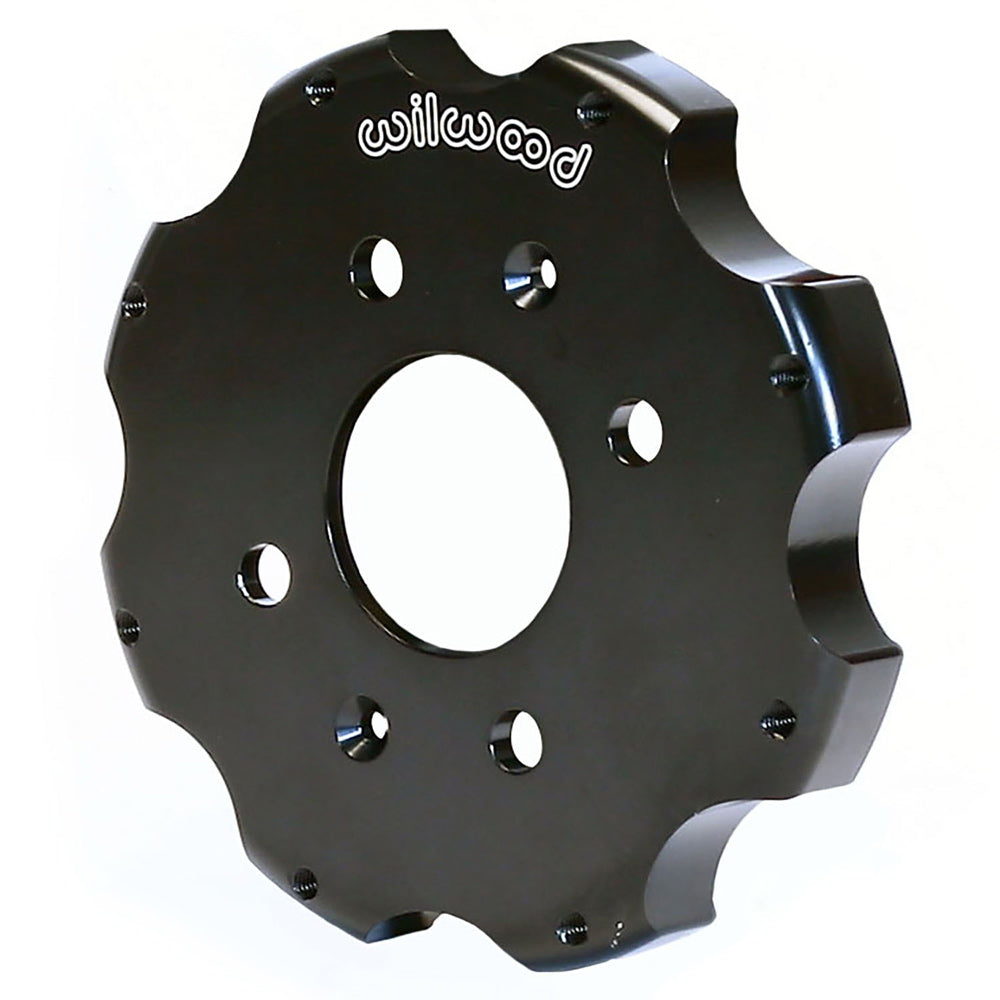

A 0.830-inch offset and 2.53-inch register define this Wilwood Mini Cooper front hat. Verify the exact conversion and eight-bolt rotor ring. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 170-10650
- Position in the specified brake assembly: Front
- Hat offset: 0.830 inch
- Rotor attachment interface: 8 x 7.00 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 4 x 3.93 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.53 inches
- Rotor mounting hole/thread designation: 5/16-18
- Internal clearance diameter: 5.90 inches
- Mounting-face thickness: 0.26 inches
- Hub-side hole clearance diameter(s): 0.641 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8390; verify the specific rotor and attachment arrangement before ordering hardware
- Component: Short-Offset Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
Fitment & Compatibility
This is a component for Mini Cooper brake conversions, not a complete brake kit. Check the hub location, rotor mounting surface and caliper alignment as a system before ordering. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
