Product details
Wilwood's Camaro front hat positions the rotor at 1.620-inch offset. Check the flared bell, hub anchoring screws and twelve-bolt rotor flange. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.
Technical Details
- Manufacturer part number: 170-10489
- Manufacturer installation note: Hat is drilled and countersunk in three places to accommodate hat to hub anchoring screws used with specific Wilwood hat mount hubs. Use 230-7032 (contains 6 qty. 1/4-20 x .50 Flat Head Hex Drive mounting screws)

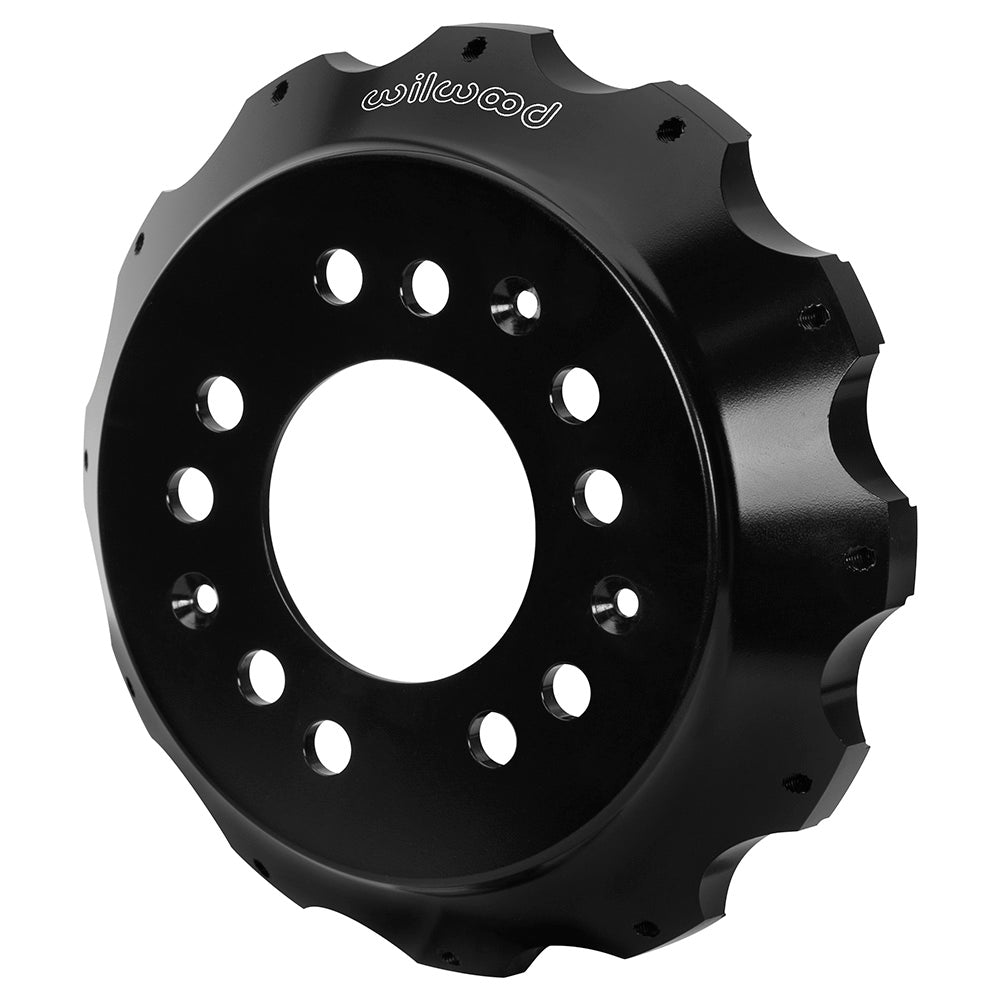

- Component: Flared-Bell Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 1.620 inch
- Rotor attachment interface: 12 x 8.75 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 x 4.50, 5 x 4.75 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
- Rotor mounting hole/thread designation: 1/4-20
- Internal clearance diameter: 6.40 inches
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8008; verify the specific rotor and attachment arrangement before ordering hardware
Fitment & Compatibility
Check the existing Chevrolet Camaro brake conversions against the dimensions above. The hub flange and rotor attachment are separate interfaces and both must match the intended brake package. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
