Product details
A 1.230-inch offset locates the rotor in the specified Wilwood Mustang drag package. Verify the hat, hub register and 5 x 4.50-inch flange. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.
Technical Details
- Manufacturer part number: 170-10041
- Hub-flange mounting/clearance pattern(s): 5 x 4.50 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 2.80 inches
- Rotor mounting hole/thread designation: 5/16-18
- Internal clearance diameter: 5.90 inches
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.580 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-8390; verify the specific rotor and attachment arrangement before ordering hardware

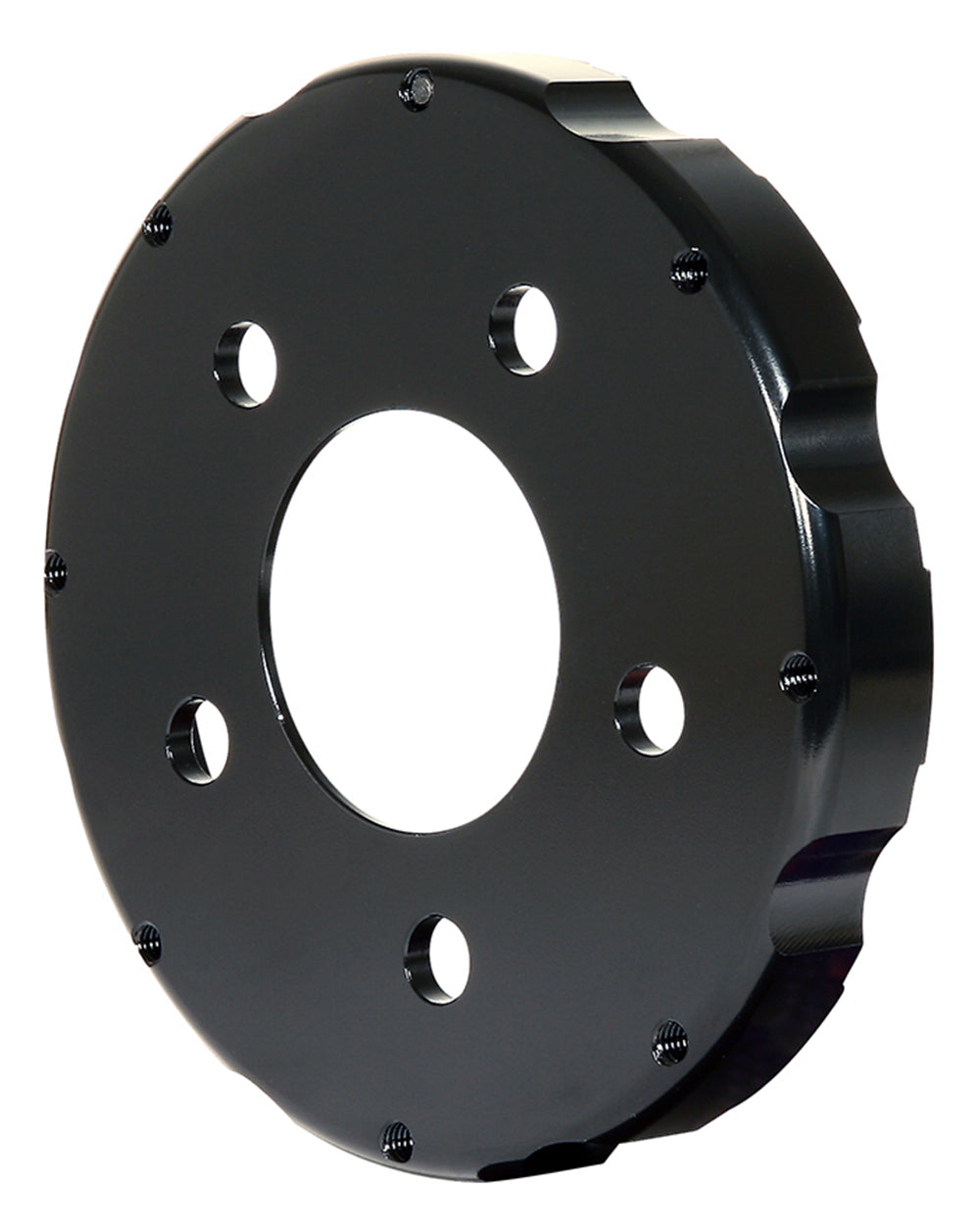

- Component: Drag Brake Rotor Hat
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Front
- Hat offset: 1.230 inch
- Rotor attachment interface: 8 x 7.00 inches; rotor attachment, separate from the hub flange
Fitment & Compatibility
Select this hat for the exact Ford Mustang brake conversions and installed hub arrangement. Compare the original part, rotor mounting circle and required hardware before replacing any component. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions
PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
