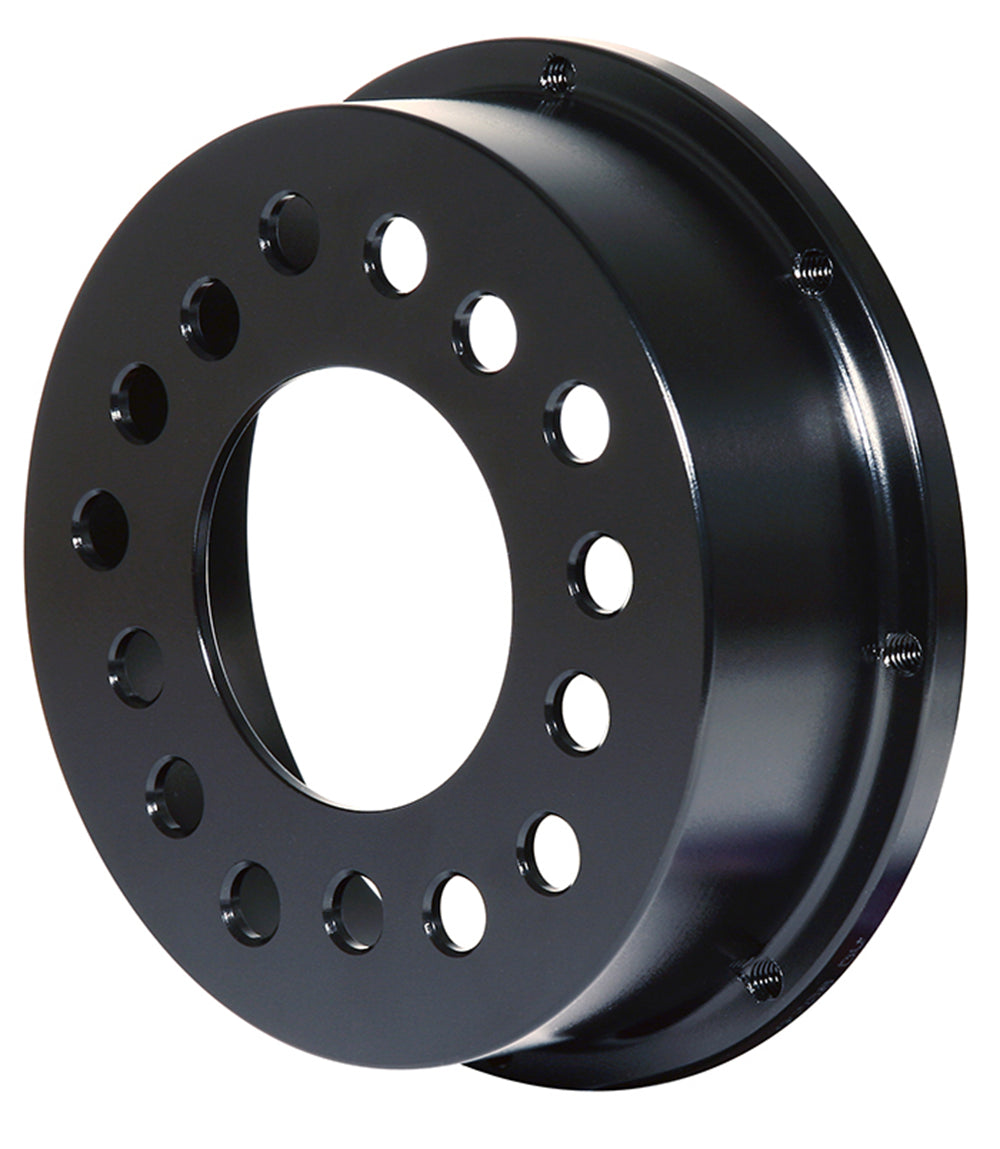

Three hub-flange patterns share this Wilwood rear drag hat. Its 1.770-inch offset and 8 x 7.00-inch rotor circle must match the brake assembly. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.
Technical Details
- Manufacturer part number: 170-0357
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Rear
- Hat offset: 1.770 inch
- Rotor attachment interface: 8 x 7.00 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 X 4.50, 5 X 4.75, 5 X 5.00 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
- Rotor mounting hole/thread designation: 5/16-18
- Internal clearance diameter: 6.14 inches
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-0233D; verify the specific rotor and attachment arrangement before ordering hardware
- Rotor-bolt clearance: The listed 230-0233D kit uses short-profile hex-head bolts for the solid-rotor drag assembly. Use 230-2589 only where the installation provides sufficient clearance between the rotor-bolt heads and caliper mounting hardware.
- Manufacturer installation note: 3.06 " diameter register with counterbore for register ring.
- Component: Drag Brake Rotor Hat
- Material: Aluminum
Fitment & Compatibility
This is a component for Drag brake systems, not a complete brake kit. Check the hub location, rotor mounting surface and caliper alignment as a system before ordering. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
