Product details

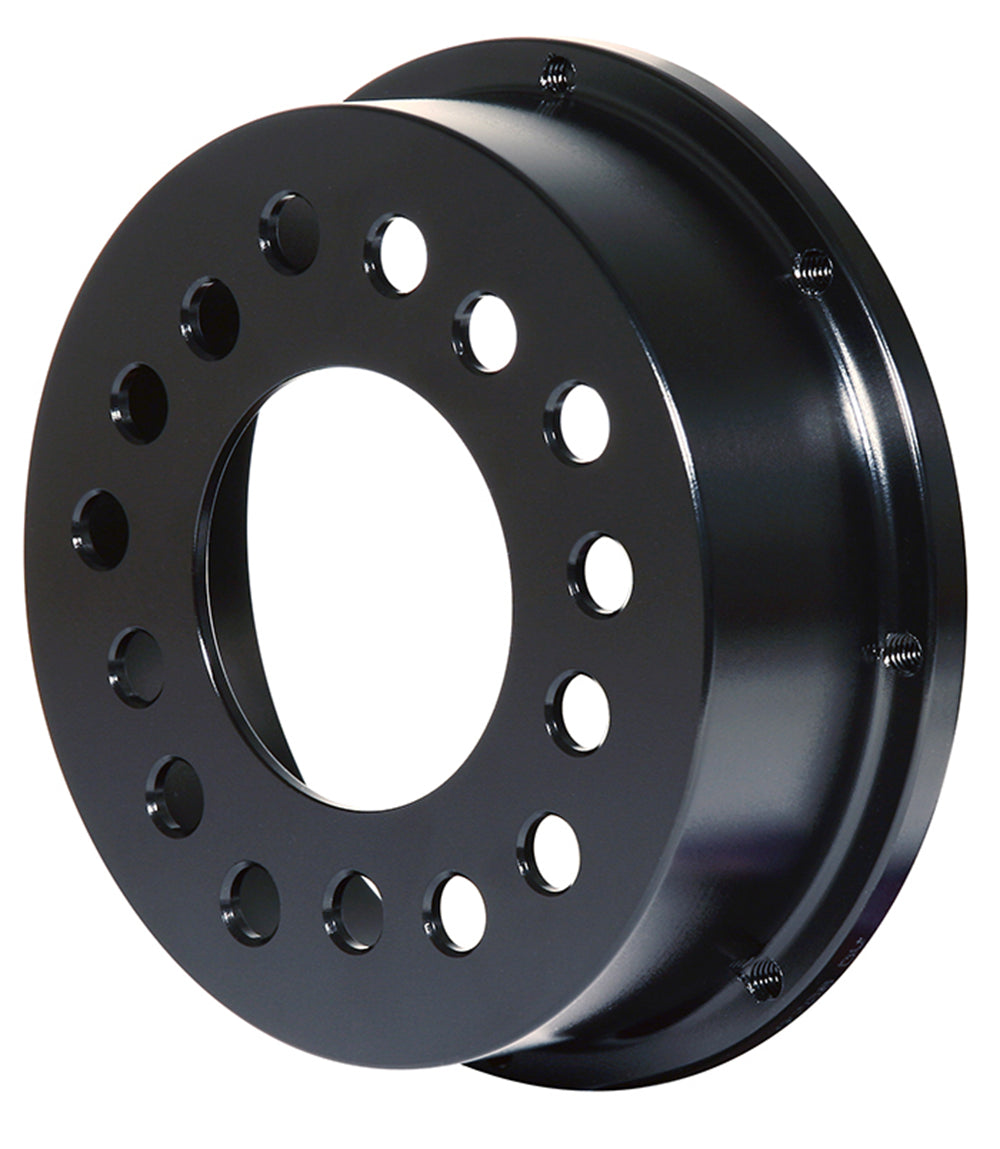

Wilwood's 1.590-inch rear drag hat has a 3.06-inch register and threaded rotor mounts. Select the matching eight-bolt ring and mounting hardware. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.
Technical Details
- Manufacturer part number: 170-0317
- Material: Aluminum
- Surface finish: Black E-Coat
- Rotor mounting method: Fixed Mount
- Position in the specified brake assembly: Rear
- Hat offset: 1.590 inch
- Rotor attachment interface: 8 x 7.00 inches; rotor attachment, separate from the hub flange
- Hub-flange mounting/clearance pattern(s): 5 X 4.50, 5 X 4.75, 5 X 5.00 inches; verify the actual hub and wheel-stud clearance
- Center register diameter: 3.06 inches
- Rotor mounting hole/thread designation: 5/16-18
- Internal clearance diameter: 6.14 inches
- Mounting-face thickness: 0.25 inches
- Hub-side hole clearance diameter(s): 0.520 inches; these are clearance dimensions, not wheel-stud thread sizes
- Manufacturer-listed attachment hardware reference: 230-0233D; verify the specific rotor and attachment arrangement before ordering hardware
- Rotor-bolt clearance: The listed 230-0233D kit uses short-profile hex-head bolts for the solid-rotor drag assembly. Use 230-2589 only where the installation provides sufficient clearance between the rotor-bolt heads and caliper mounting hardware.
- Manufacturer installation note: 3.06 " diameter register with counterbore for register ring.
- Component: Drag Brake Rotor Hat
Fitment & Compatibility
Identify the installed brake conversion before choosing this hat for Drag brake systems. The offset, center register and attachment hardware must agree with the rotor and hub in that assembly. Select the rotor and attachment hardware separately for the documented assembly. Follow the installation drawing for engagement and clearance at every mounting point.
Manufacturer Reference
Wilwood component specifications and dimensions · Wilwood 230-0233D / 230-2589 hardware-clearance reference
