Product details

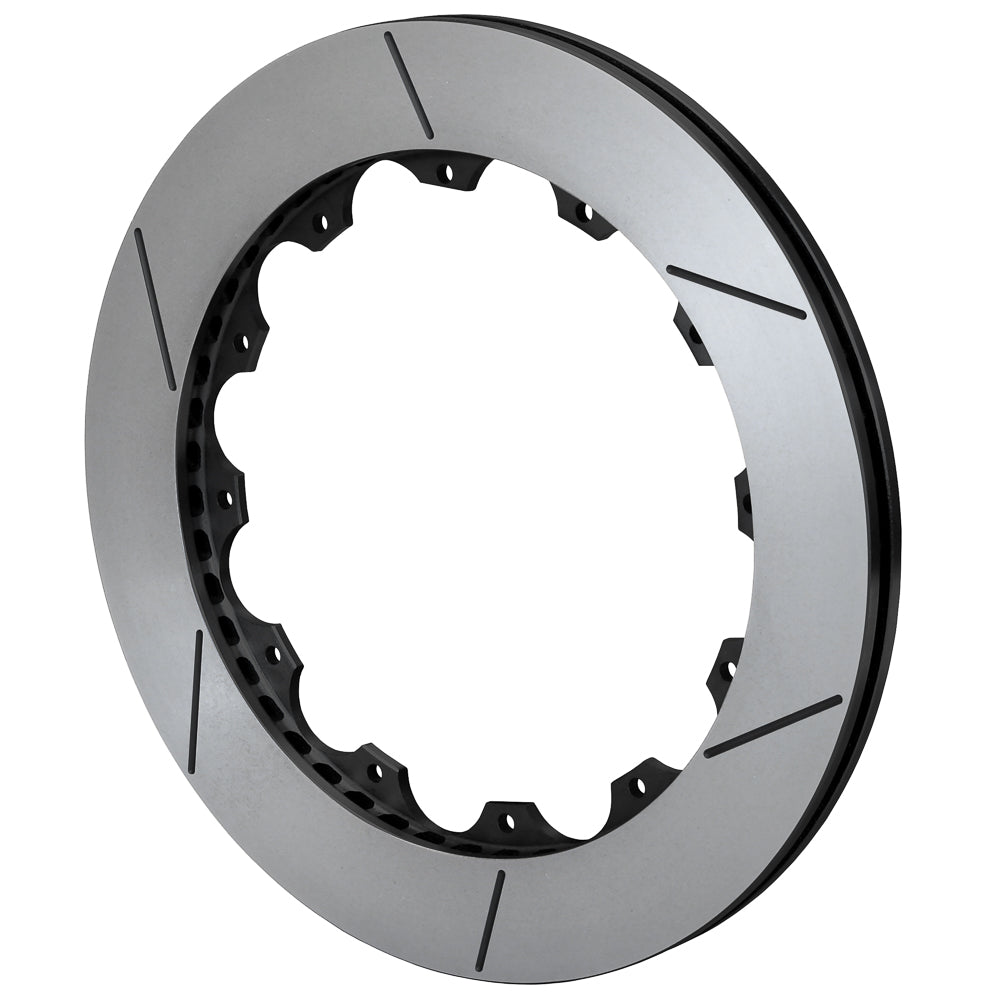

The coated left-hand GT ring retains the slim 0.81-inch friction section of this 12.88-inch brake configuration. Black electro-coat accompanies an iron casting with 48 curved vanes and a balanced, slotted surface arrangement. Bill Wood established Wilwood in 1977. From Camarillo, California, the company designs and manufactures disc brake systems covering motorsport, street performance and specialized applications, with calipers, rotors, master cylinders, valves, fittings and lines in its product range. This rotor should be selected with the mounting arrangement, friction compound and hydraulic system in mind.
Technical Details
- Manufacturer part number: 160-9960-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.88 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 10.20 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.46 inches
- Opposite-hand companion rotor: 160-9959-GTB (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Heavy-duty iron construction with 48 vanes.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Verify the 0.251-inch mounting holes and left-side orientation. Use the caliper and hat specified for the narrow ring, not a thicker rotor with the same outside diameter.
Wilwood product specifications · Rotor dimension diagram
PMB Performance brings more than 20 years of brake expertise to component selection. Contact us with your existing rotor and brake-package details if you need help checking the match.
