Product details

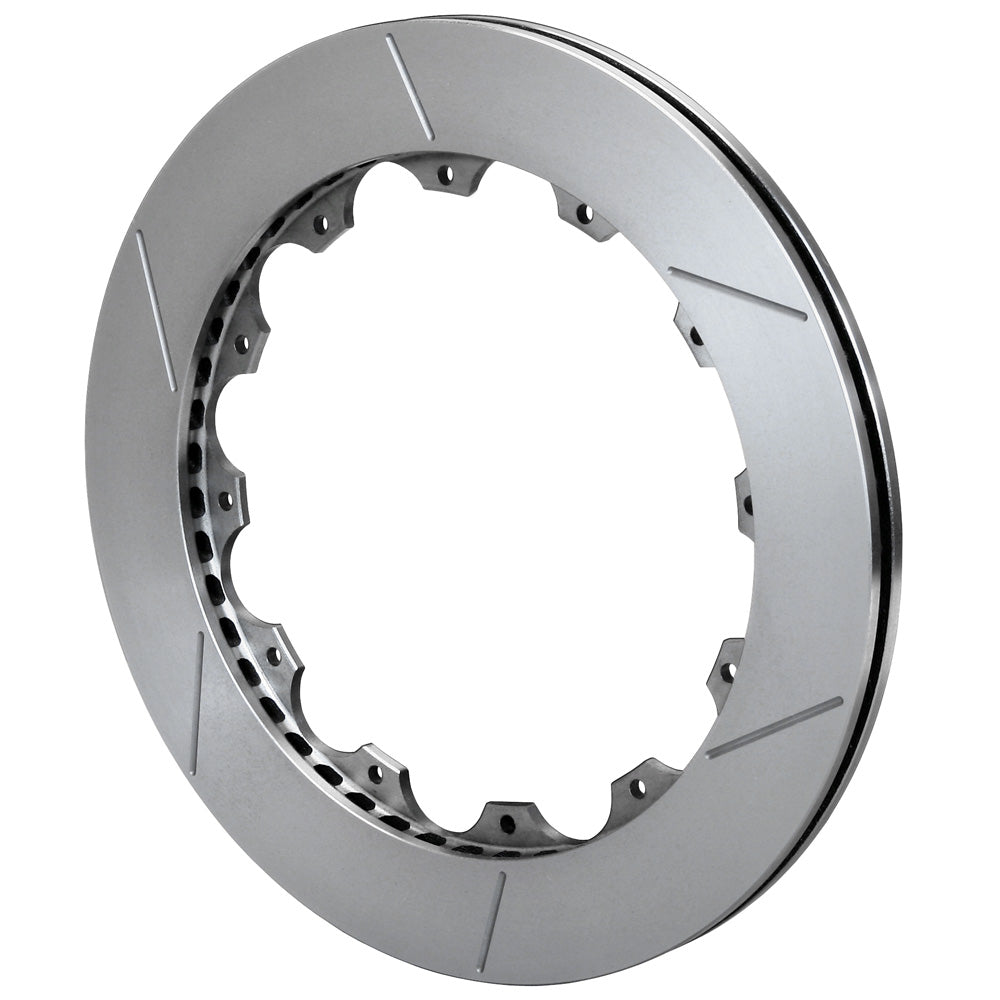

The left-hand GT rotor brings a slotted surface to the 12.88-inch, 0.81-inch-thick iron ring. Its curved-vane core and twelve-hole mounting flange identify the replacement, with the plain finish leaving the casting uncoated. Founded in 1977, Bill Wood’s Wilwood is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street performance and specialized applications. Its range runs from calipers and rotors to master cylinders, valves, fittings and lines. Choosing a rotor involves matching those surrounding components as well as the vehicle’s intended use.
Technical Details
- Manufacturer part number: 160-9960
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.88 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 10.20 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.46 inches
- Opposite-hand companion rotor: 160-9959 (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Heavy-duty iron construction with 48 vanes.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the 8.75-inch attachment circle and 9.46-inch far-side clearance. Neither the outside diameter nor the shared hat pattern alone establishes the correct rotor thickness.
Wilwood product specifications · Rotor dimension diagram
