Product details

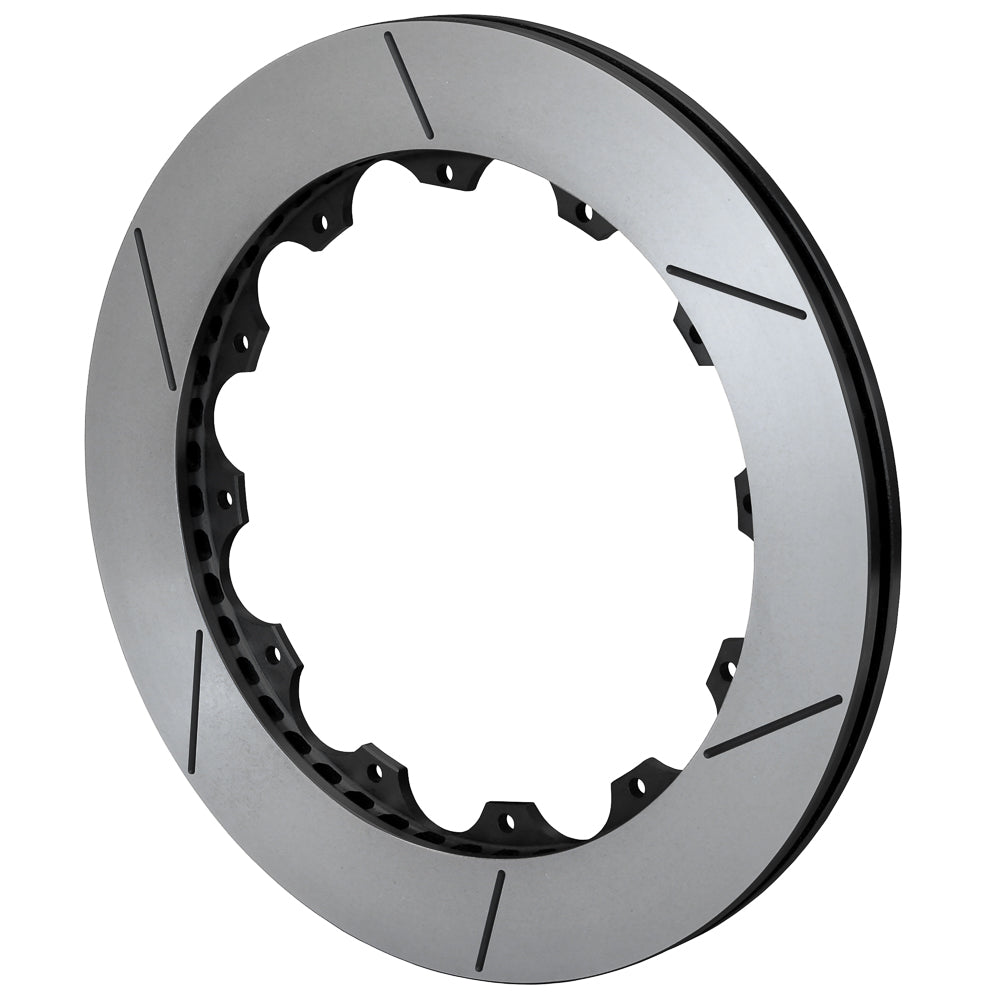

Black electro-coat identifies this right-hand GT rotor’s finish without changing the narrow 0.81-inch section. The 12.88-inch iron ring uses 48 curved vanes and GT face slots, with an 8.25-inch register for the separate hat. A rotor must suit both the mechanical installation and the rest of the braking system. Wilwood brings that system perspective to its calipers, rotors, master cylinders, valves, fittings and lines, designing and manufacturing disc brake systems for motorsport, street performance and specialized applications. Bill Wood founded the Camarillo, California company in 1977.
Technical Details
- Manufacturer part number: 160-9959-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.88 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 10.20 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.46 inches
- Opposite-hand companion rotor: 160-9960-GTB (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Heavy-duty iron construction with 48 vanes.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Check the 0.251-inch attachment holes and exact caliper clearance. The finish should not be confused with burnishing, which is not applied to this rotor.
Wilwood product specifications · Rotor dimension diagram
PMB Performance offers more than 20 years of brake experience and practical help with replacement parts. Contact our team if you need assistance confirming the rotor for your installation.
