Product details

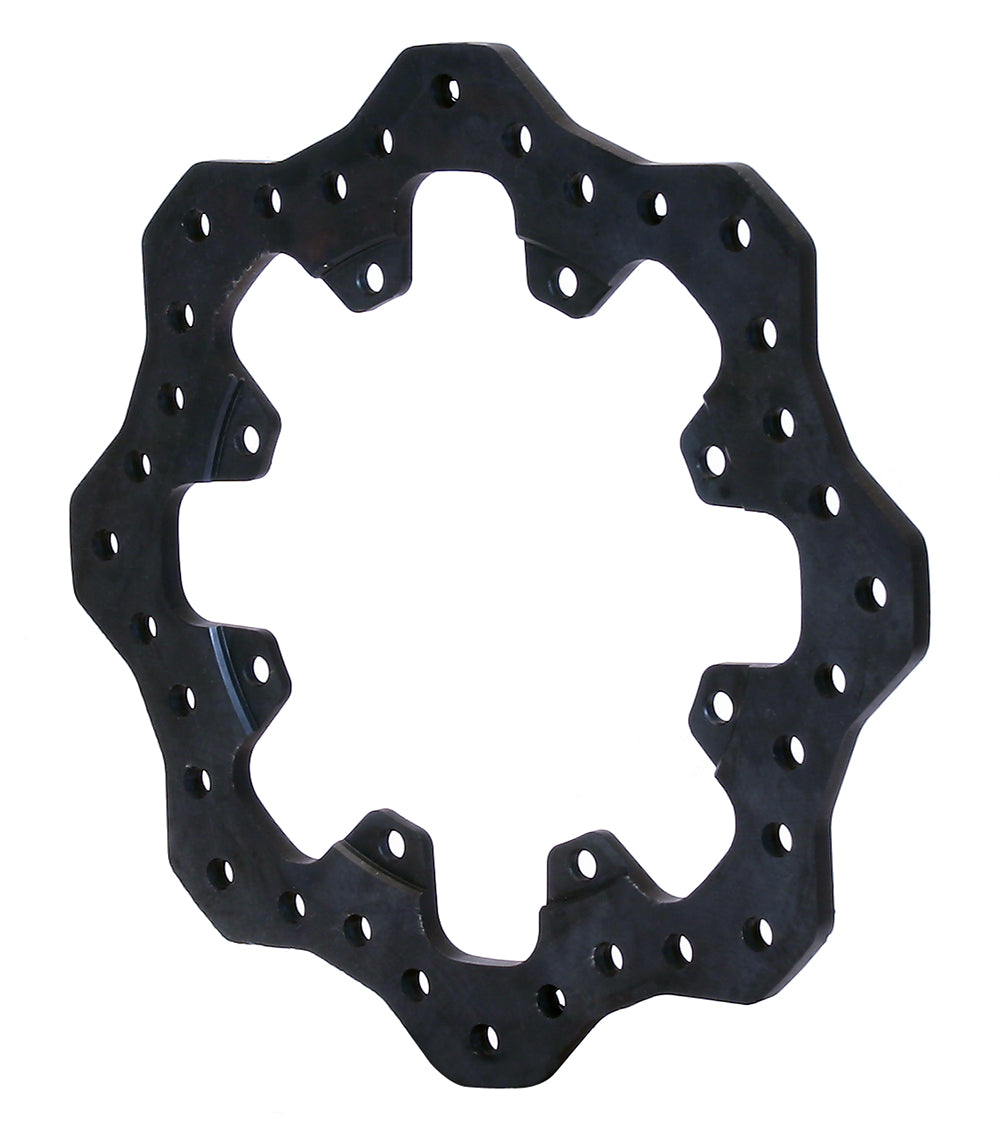

A larger 12.19-inch perimeter distinguishes this scalloped steel ring from the 11.75-inch version. It retains the thin 0.35-inch section, drilled friction face and black-oxide finish used in the specified drag or dirt racing brake arrangement. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-9773
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.19 inches
- Nominal thickness: 0.35 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Oxide
- Approximate weight: 4.60 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 6.38 inches
- Intended use and restrictions: For drag or dirt racing; not for street use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Not for street use. Match the eight-hole 7.00-inch carrier and 6.38-inch register, checking the caliper’s pad sweep against the full 12.19-inch diameter.
