Product details

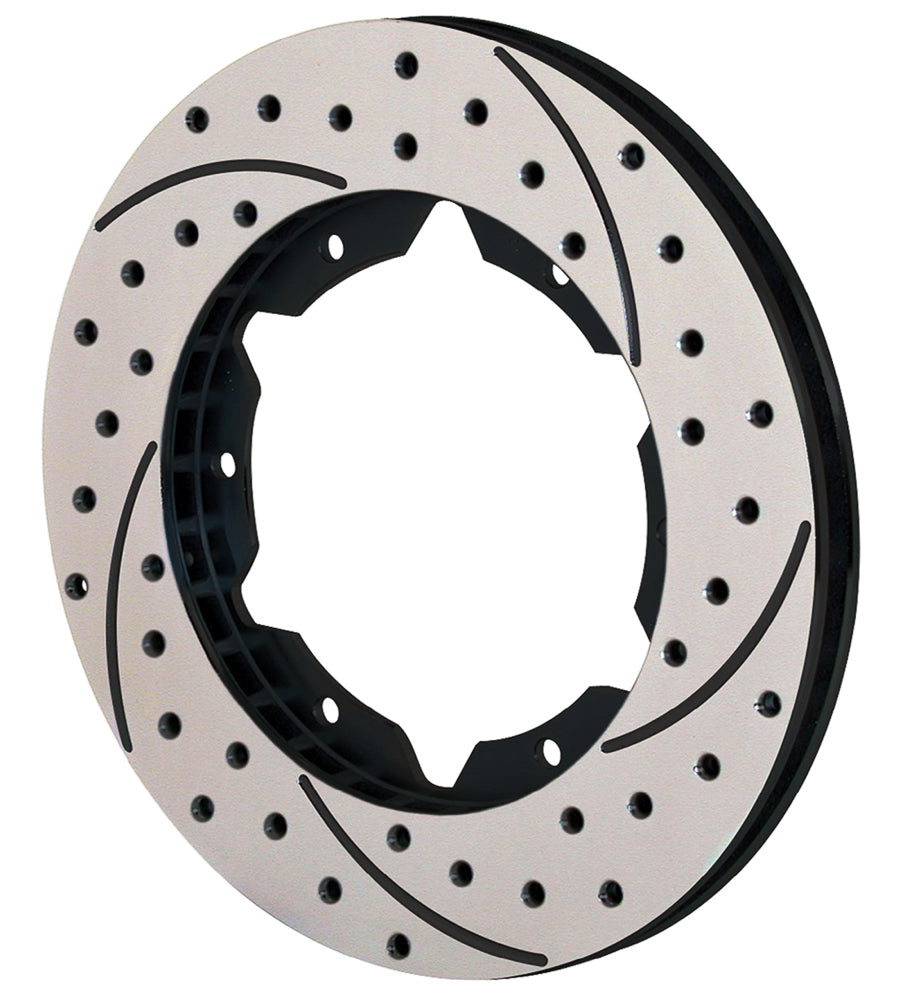

This right-hand SRP ring carries a drilled-and-slotted surface in a compact 10.50-inch diameter. Its 0.75-inch iron section uses 30 vanes and a six-hole mounting flange, setting it apart from thicker 0.81-inch compact rotors. Established in 1977 by Bill Wood, Wilwood develops its range around complete disc brake systems. The Camarillo, California manufacturer designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Installation geometry, pad selection and braking duty should be considered together when choosing this component.
Technical Details
- Manufacturer part number: 160-9249-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.50 inches
- Nominal thickness: 0.75 inches
- Rotor material: Iron
- Construction: 30 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 6.40 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Right-hand
- Rotor attachment pattern: 6 x 5.50 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 4.94 inches
- Far-side inside diameter: 6.75 inches
- Opposite-hand companion rotor: 160-9250-BK (sold separately)
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Check the 5.50-inch attachment circle, 0.326-inch holes and 6.75-inch far-side inside diameter. Match both the rotor thickness and pad sweep to the installed caliper.
