Product details

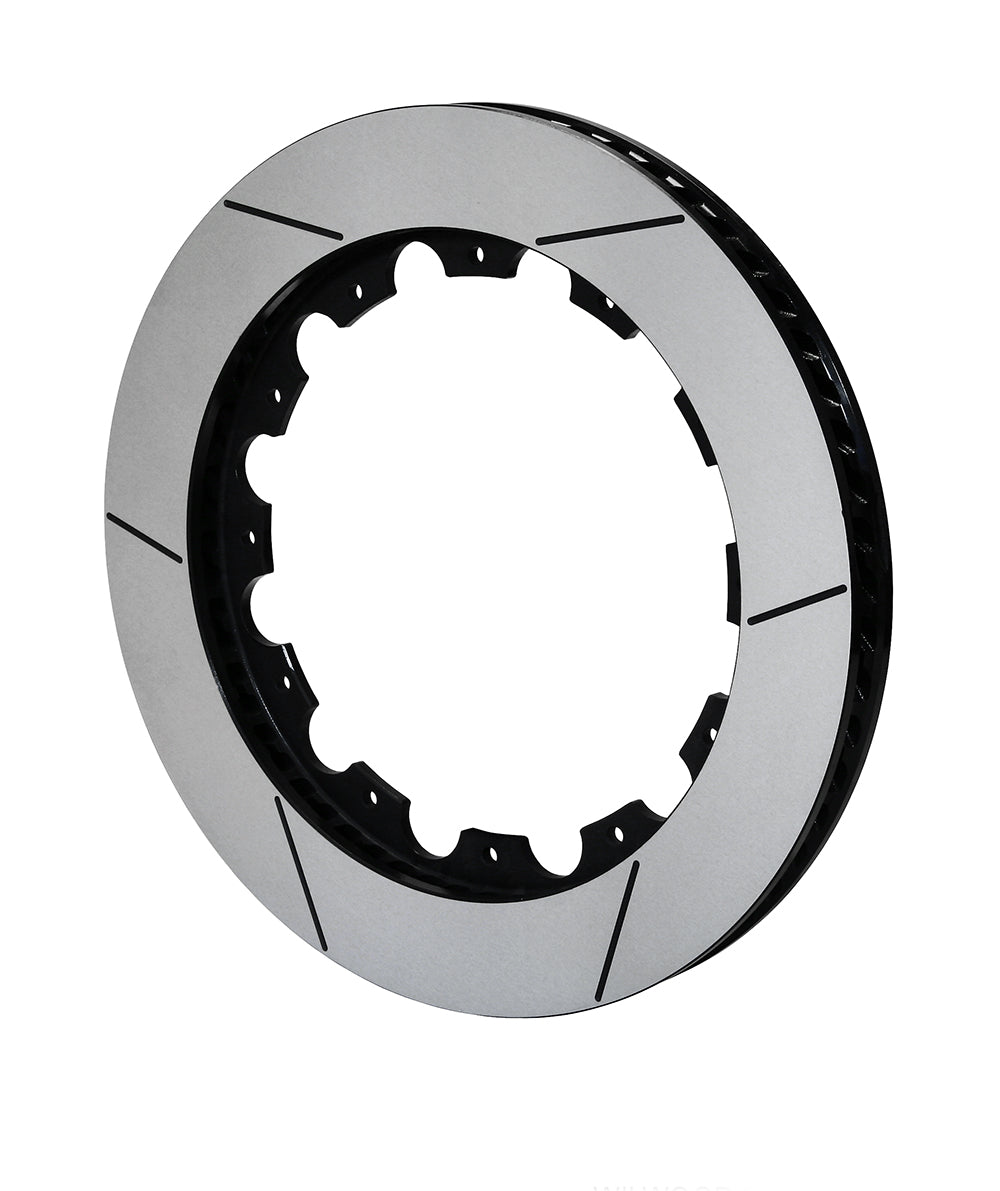

The wide 10.75-inch twelve-bolt flange defines this right-hand 16-inch GT rotor. Its Spec-37 ring uses a 1.38-inch section and 60 curved vanes, with a 10.00-inch center register and black electro-coat finish. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-8953-GTB
- Quantity: One rotor; not an axle pair
- Outside diameter: 16.00 inches
- Nominal thickness: 1.38 inches
- Rotor material: Spec-37 Iron
- Construction: 60 curved vanes
- Friction surface: GT Slotted
- Finish: Black Electro Coat
- Approximate weight: 22.50 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 10.75 inches
- Rotor mounting hole / thread: 0.316 inches
- Registration / lug inside diameter: 10.00 inches
- Far-side inside diameter: 11.76 inches
- Opposite-hand companion rotor: 160-8954-GTB (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Check the 0.316-inch mounting holes and 11.76-inch far-side inside diameter. The 10.25-inch flange version is a separate rotor despite a similar outside diameter.
Wilwood product specifications · Rotor dimension diagram
PMB Performance brings more than 20 years of brake expertise to component selection. Contact us with your existing rotor and brake-package details if you need help checking the match.
