Product details

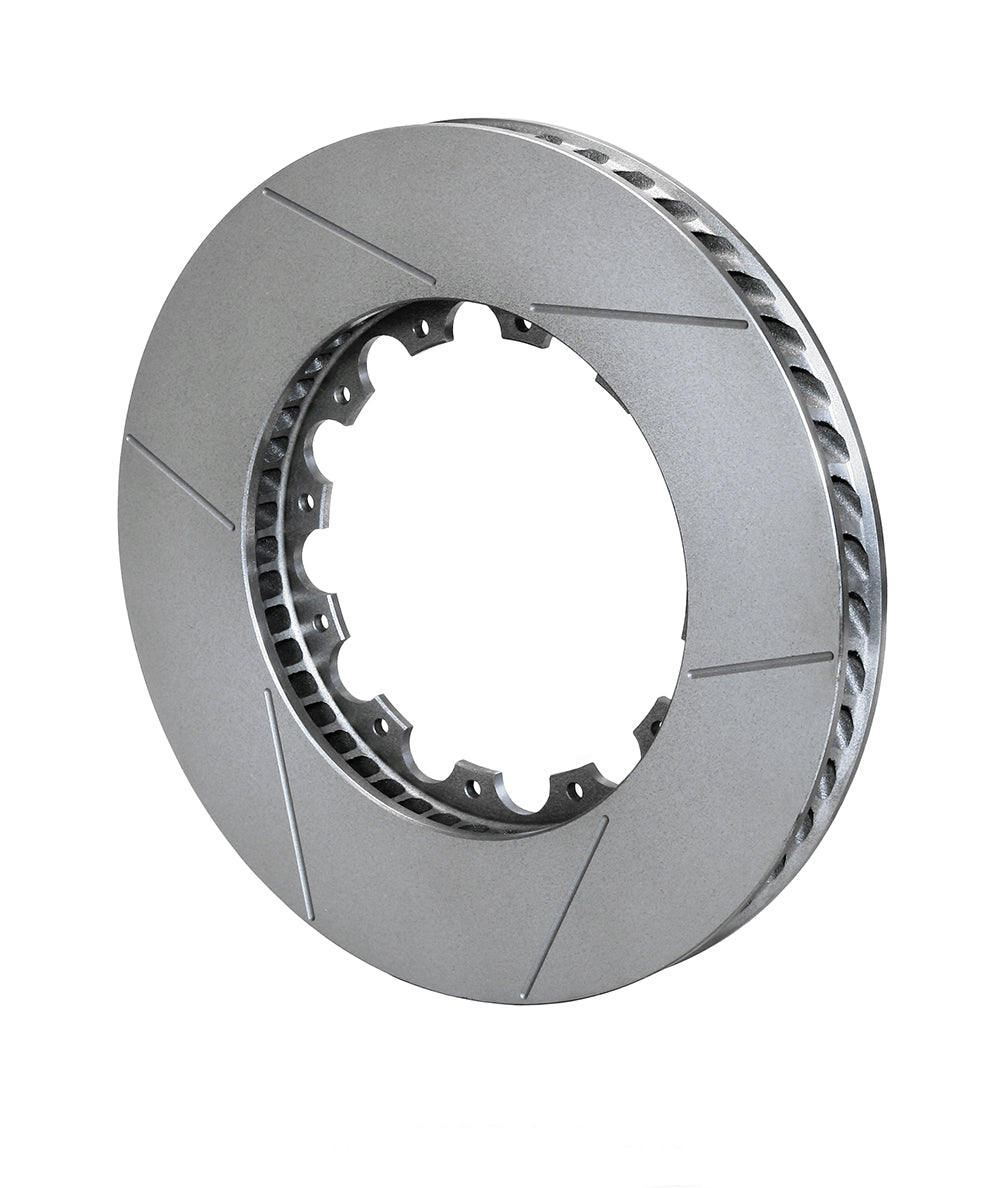

This left-hand GT ring places a 12.60-inch slotted friction surface around a compact twelve-bolt mounting center. The 1.25-inch Spec-37 section and 48 curved vanes suit the corresponding complete brake assembly, with a listed 15.60-lb weight. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-8747
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.60 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 15.60 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 7.00 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 7.69 inches
- Opposite-hand companion rotor: 160-8746 (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the 6.38-inch register and 7.69-inch far-side clearance. The 7.00-inch rotor attachment circle is not a wheel pattern and must have the correct twelve-hole count.
Wilwood product specifications · Rotor dimension diagram
