Product details

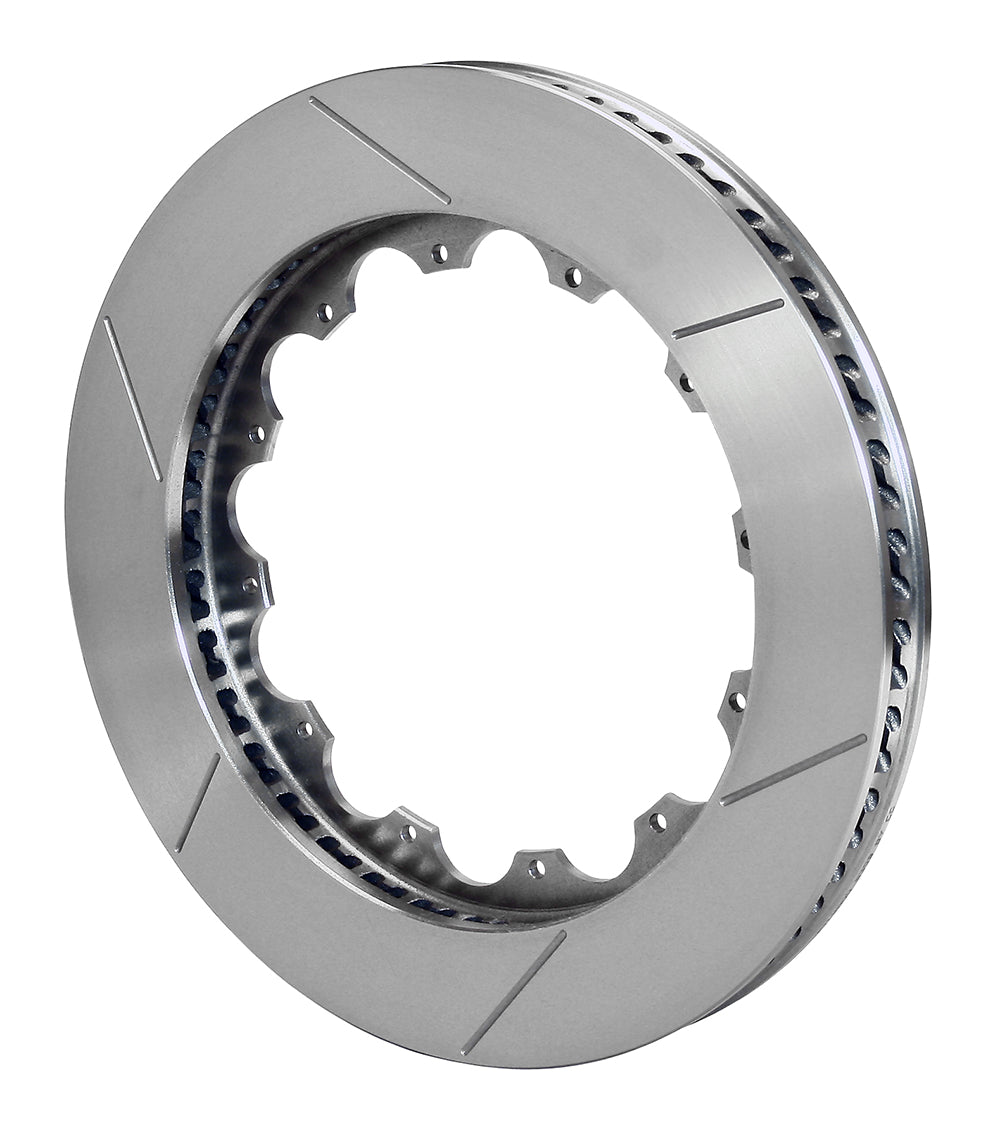

The plain-finish left-hand GT rotor retains a narrow 1.10-inch section for the corresponding 14-inch brake package. Its Spec-37 casting uses 72 curved vanes and an 8.25-inch register within a twelve-hole mounting flange. A rotor must suit both the mechanical installation and the rest of the braking system. Wilwood brings that system perspective to its calipers, rotors, master cylinders, valves, fittings and lines, designing and manufacturing disc brake systems for motorsport, street performance and specialized applications. Bill Wood founded the Camarillo, California company in 1977.
Technical Details
- Manufacturer part number: 160-8403
- Quantity: One rotor; not an axle pair
- Outside diameter: 14.00 inches
- Nominal thickness: 1.10 inches
- Rotor material: Spec-37 Iron
- Construction: 72 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 14.70 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 10.00 inches
- Opposite-hand companion rotor: 160-8402 (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the 10.00-inch far-side clearance and 0.251-inch holes. Use the correct left-side orientation and do not substitute a thicker ring based only on the mounting circle.
Wilwood product specifications · Rotor dimension diagram
PMB Performance brings more than 20 years of brake expertise to component selection. Contact us with your existing rotor and brake-package details if you need help checking the match.
