Product details

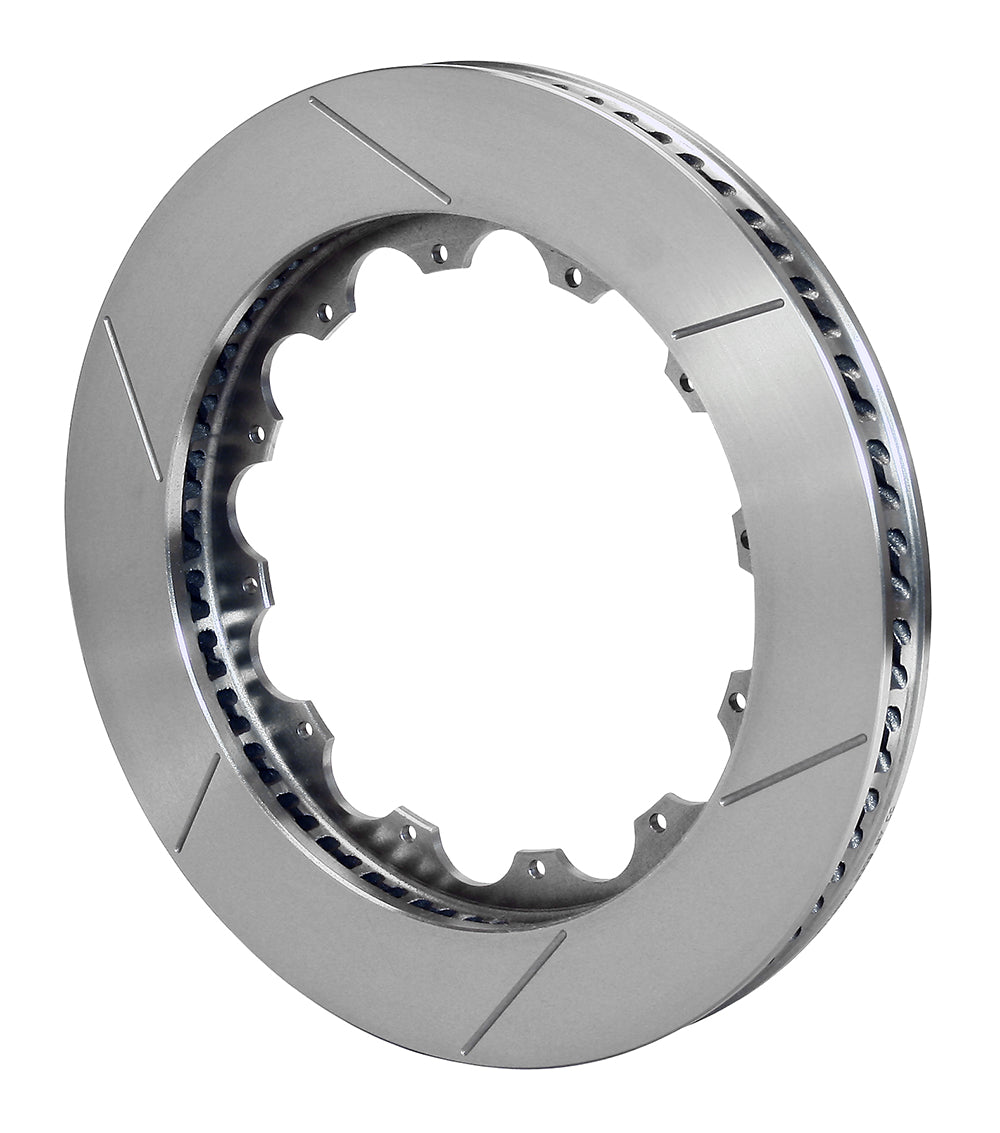

This right-hand GT rotor provides the narrower 1.10-inch friction section within the 14-inch Spec-37 range. Its plain-finish casting uses 72 curved vanes and a slotted face, with twelve holes attaching it to the separate hat. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-8402
- Quantity: One rotor; not an axle pair
- Outside diameter: 14.00 inches
- Nominal thickness: 1.10 inches
- Rotor material: Spec-37 Iron
- Construction: 72 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 14.70 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 10.00 inches
- Opposite-hand companion rotor: 160-8403 (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Check the 8.25-inch register and 10.00-inch far-side inside diameter. The 1.25-inch version requires different caliper clearance even though the outside diameter and bolt circle are similar.
Wilwood product specifications · Rotor dimension diagram
PMB Performance offers more than 20 years of brake experience and practical help with replacement parts. Contact our team if you need assistance confirming the rotor for your installation.
