Product details

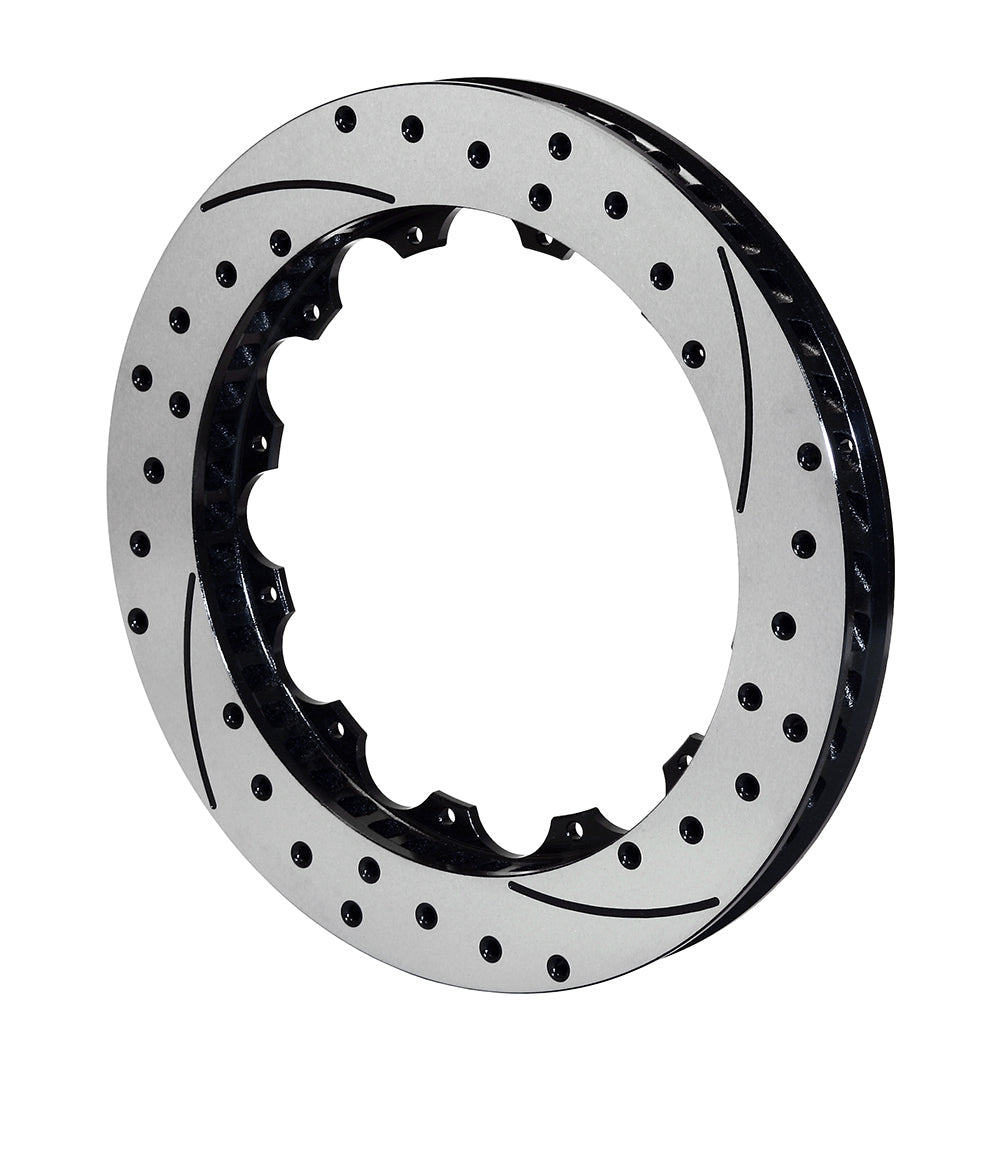

The left-hand surface and vane orientation define this SRP ring for the corresponding side of a 14-inch assembly. Its 1.25-inch Spec-37 section is paired with a 72-vane core and black-finished casting. Camarillo, California is home to Wilwood, founded by Bill Wood in 1977. The company designs and manufactures disc brake systems for motorsport, street performance and specialized applications, supplying rotors, calipers, master cylinders, valves, fittings and lines. Matching the rotor to the complete assembly matters as much as selecting its diameter or surface treatment.
Technical Details
- Manufacturer part number: 160-8397-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 14.00 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 72 curved vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 17.40 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 10.00 inches
- Opposite-hand companion rotor: 160-8396-BK (sold separately)
- Intended use and restrictions: For racing durability, Wilwood recommends comparable GT rotors. Suitable for moderate-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the 8.25-inch registration diameter and 0.251-inch holes. For racing applications where durability is the priority, compare Wilwood’s GT option for the same required geometry.
Wilwood product specifications · Rotor dimension diagram
PMB Performance has supported brake projects for more than 20 years. Our team can help identify the correct replacement when your caliper, hat or hub configuration needs a closer look.
