Product details

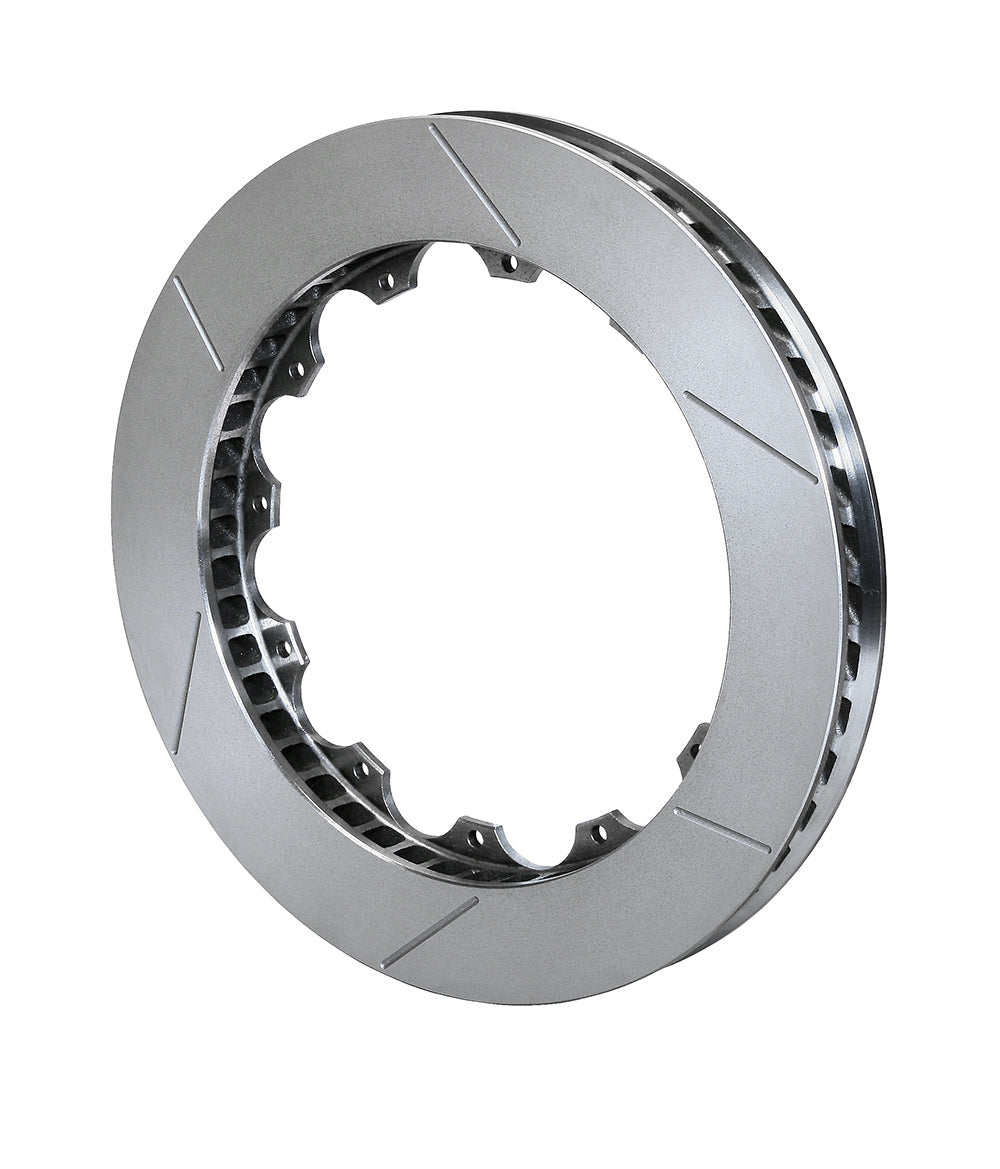

A left-hand curved-vane casting supports the GT slotted faces of this 13.06-inch ring. The plain-finish rotor is nominally 1.25 inches thick and mounts to a separate hat through twelve small attachment holes. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-8166
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.06 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 12.30 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.46 inches
- Opposite-hand companion rotor: 160-8165 (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Verify the 0.251-inch hole diameter and 9.46-inch far-side clearance. Use the correct 13.06-inch pad sweep rather than selecting another ring on the shared flange alone.
Wilwood product specifications · Rotor dimension diagram
