Product details

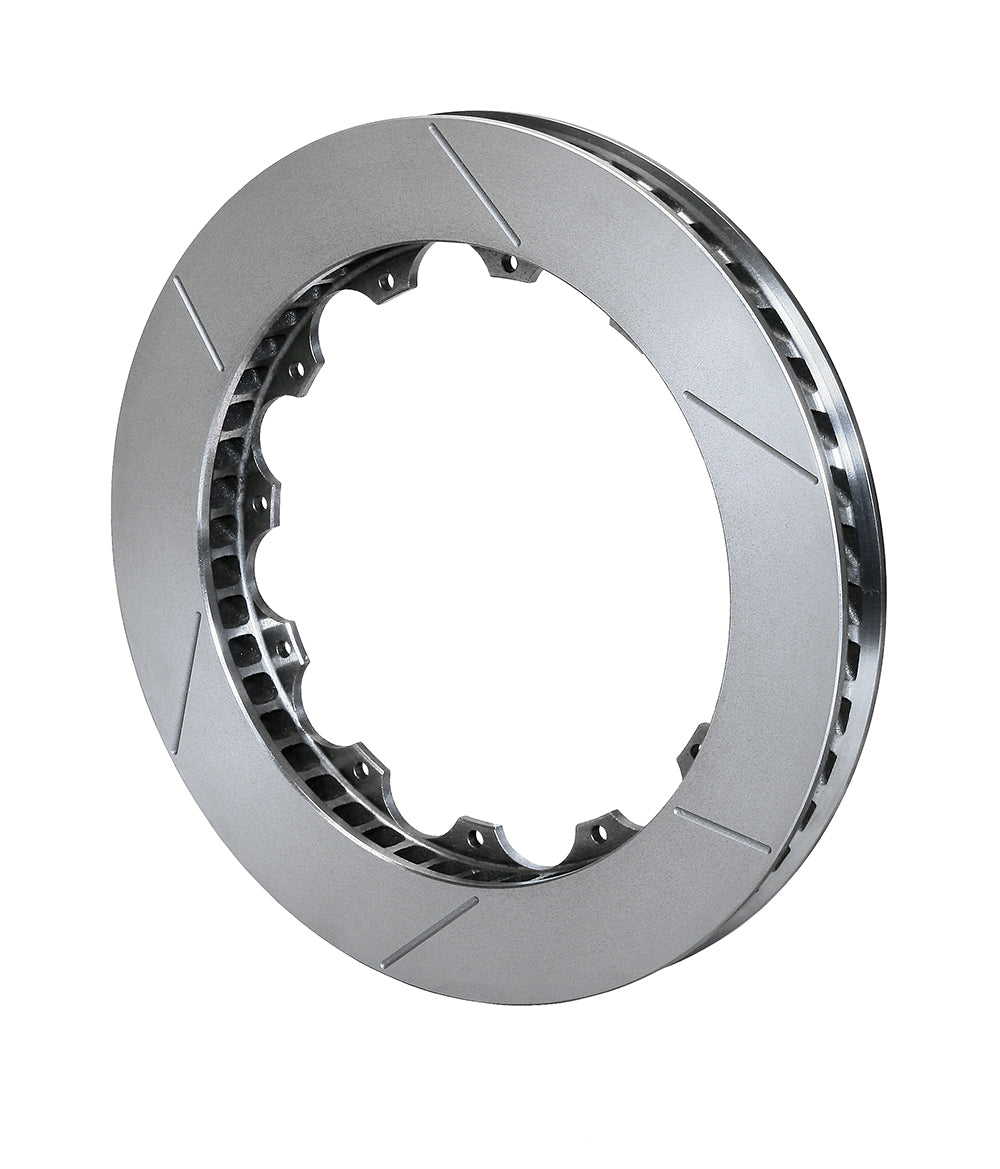

This right-hand GT rotor provides a 13.06-inch slotted friction diameter with a 1.25-inch Spec-37 section. The plain-finish 48-vane ring uses a twelve-hole mounting flange, distinguishing it from the thicker eight-bolt version of a similar diameter. A well-matched brake installation starts with compatible components. Wilwood designs and manufactures disc brake systems that include calipers, rotors, master cylinders, valves, fittings and lines, serving motorsport, street performance and specialized applications. Bill Wood founded the company in 1977 in Camarillo, California; this rotor should be evaluated as part of the complete braking package.
Technical Details
- Manufacturer part number: 160-8165
- Quantity: One rotor; not an axle pair
- Outside diameter: 13.06 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 48 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 12.30 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Right-hand
- Rotor attachment pattern: 12 x 8.75 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.25 inches
- Far-side inside diameter: 9.46 inches
- Opposite-hand companion rotor: 160-8166 (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the 8.75-inch attachment circle, 0.251-inch holes and 9.46-inch far-side clearance. The separate hat must register correctly in the 8.25-inch center.
Wilwood product specifications · Rotor dimension diagram
