Product details

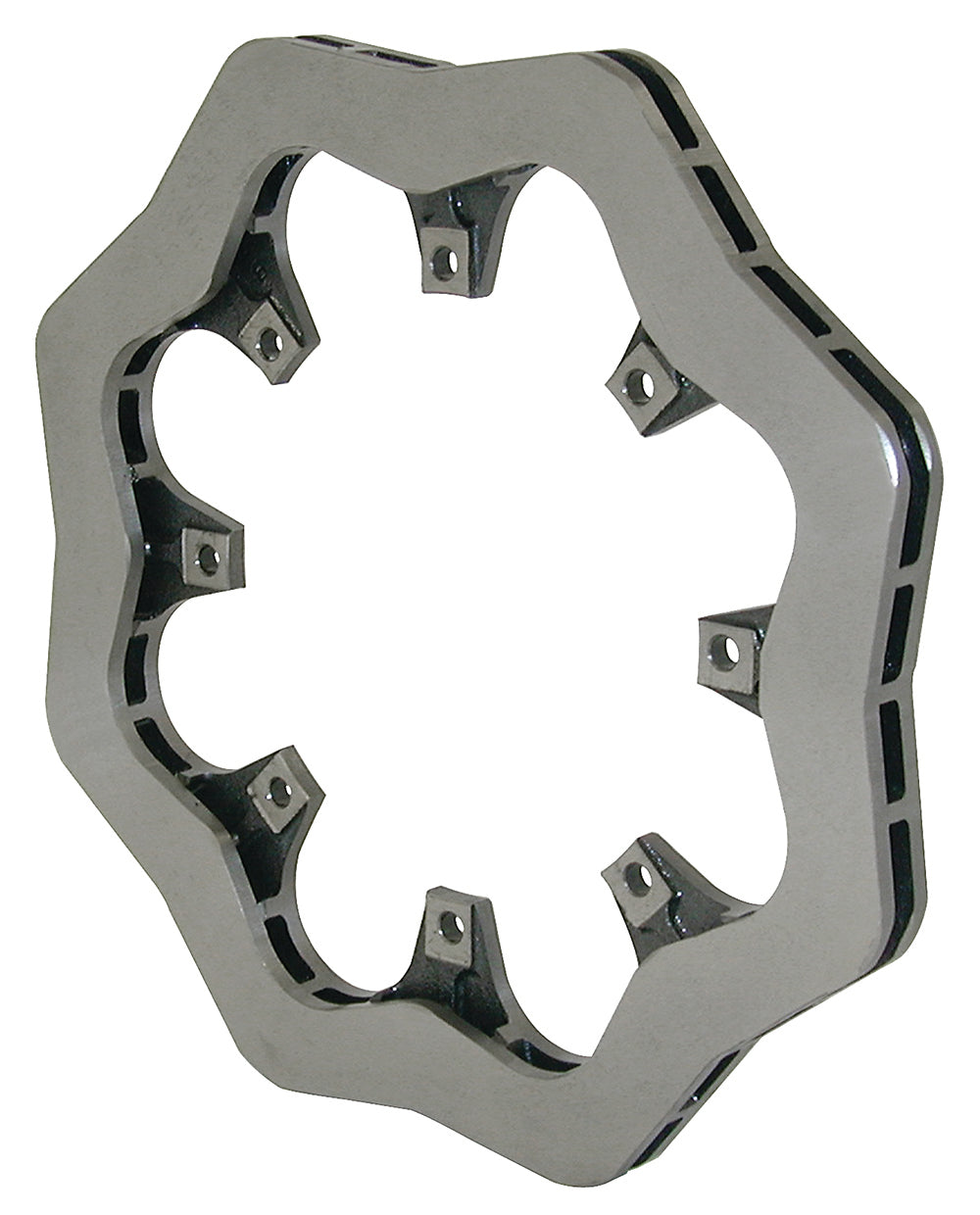

A deeply scalloped outer profile reduces this 11.75-inch Ultralite rotor to a listed 5.40 lb. The 0.81-inch iron ring retains 32 vanes and plain friction faces for the specific light dirt-racing duty identified by Wilwood. Wilwood’s calipers, rotors, master cylinders, valves, fittings and lines support complete disc brake systems rather than an isolated component choice. Founded in 1977 by Bill Wood and based in Camarillo, California, the company designs and manufactures these systems for motorsport, street performance and specialized applications. Correct pairing of the rotor with its surrounding hardware is essential.
Technical Details
- Manufacturer part number: 160-8135
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 32 vanes
- Friction surface: Plain Face
- Finish: Plain
- Approximate weight: 5.40 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 8.34 inches
- Intended use and restrictions: For light dirt racing. Scalloped rotors are unsafe for street use and can fail if misused.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Unsafe for street use; misuse can cause failure. Confirm the approved light dirt-racing package, 6.38-inch register and eight-on-7.00-inch attachment.
Wilwood product specifications · Rotor dimension diagram
Put PMB Performance’s 20-plus years of brake knowledge to work when matching this part to your build. We can help review the dimensions and application requirements.
