Product details

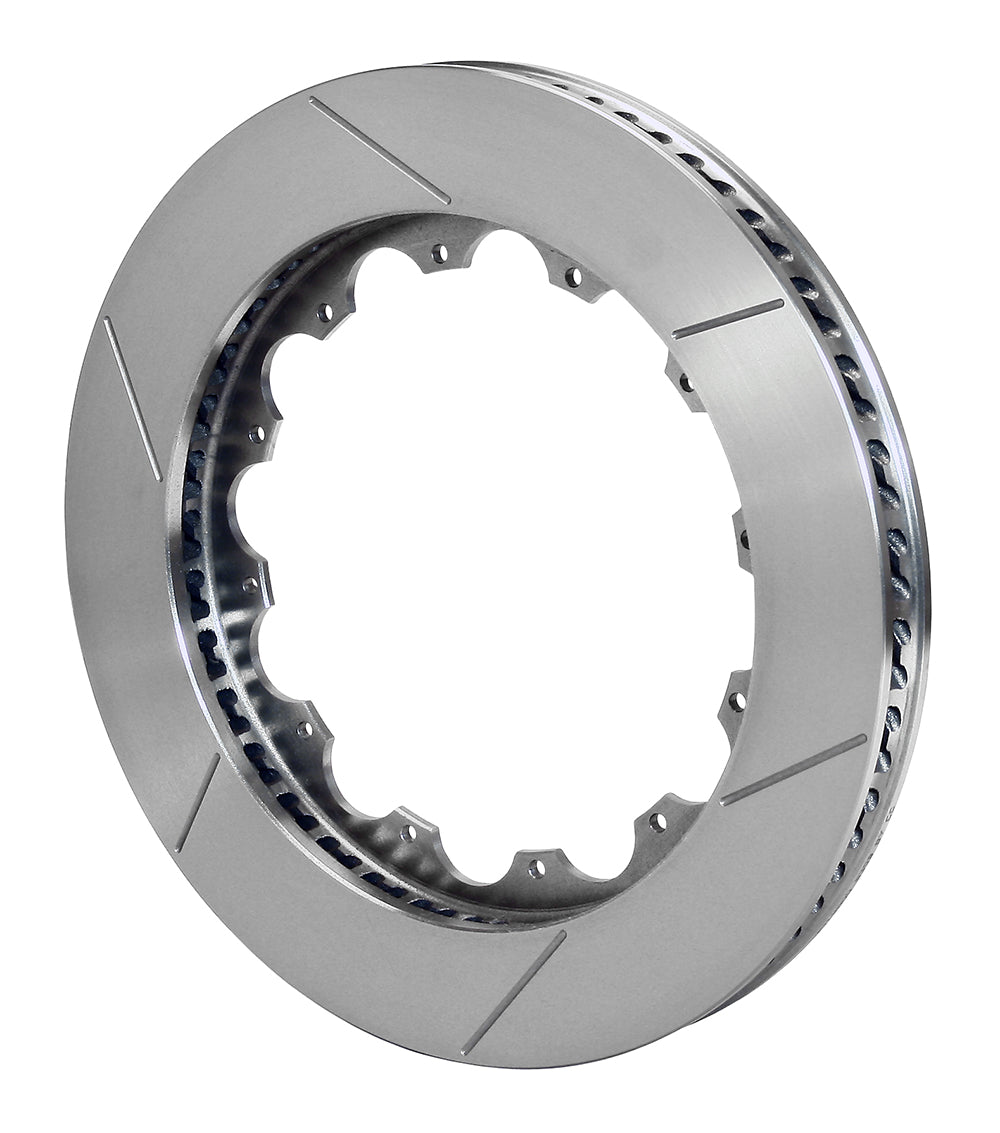

A left-hand 72-vane core and wide center flange define this 14-inch GT rotor. The slotted Spec-37 ring is 1.25 inches thick, with a twelve-on-9.19-inch connection designed for the corresponding separate hat. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-8024
- Quantity: One rotor; not an axle pair
- Outside diameter: 14.00 inches
- Nominal thickness: 1.25 inches
- Rotor material: Spec-37 Iron
- Construction: 72 curved vanes
- Friction surface: GT Slotted
- Finish: Plain
- Approximate weight: 17.30 lb
- Factory burnished: No
- Dynamically balanced: Yes
- Installation orientation: Left-hand
- Rotor attachment pattern: 12 x 9.19 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 8.57 inches
- Far-side inside diameter: 10.00 inches
- Opposite-hand companion rotor: 160-8023 (sold separately)
- Intended use and restrictions: Suitable for high-temperature racing and street use. Spec-37 heavy-wall castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the 8.57-inch register before ordering. Both the attachment circle and 10.00-inch far-side clearance must agree with the complete brake assembly.
