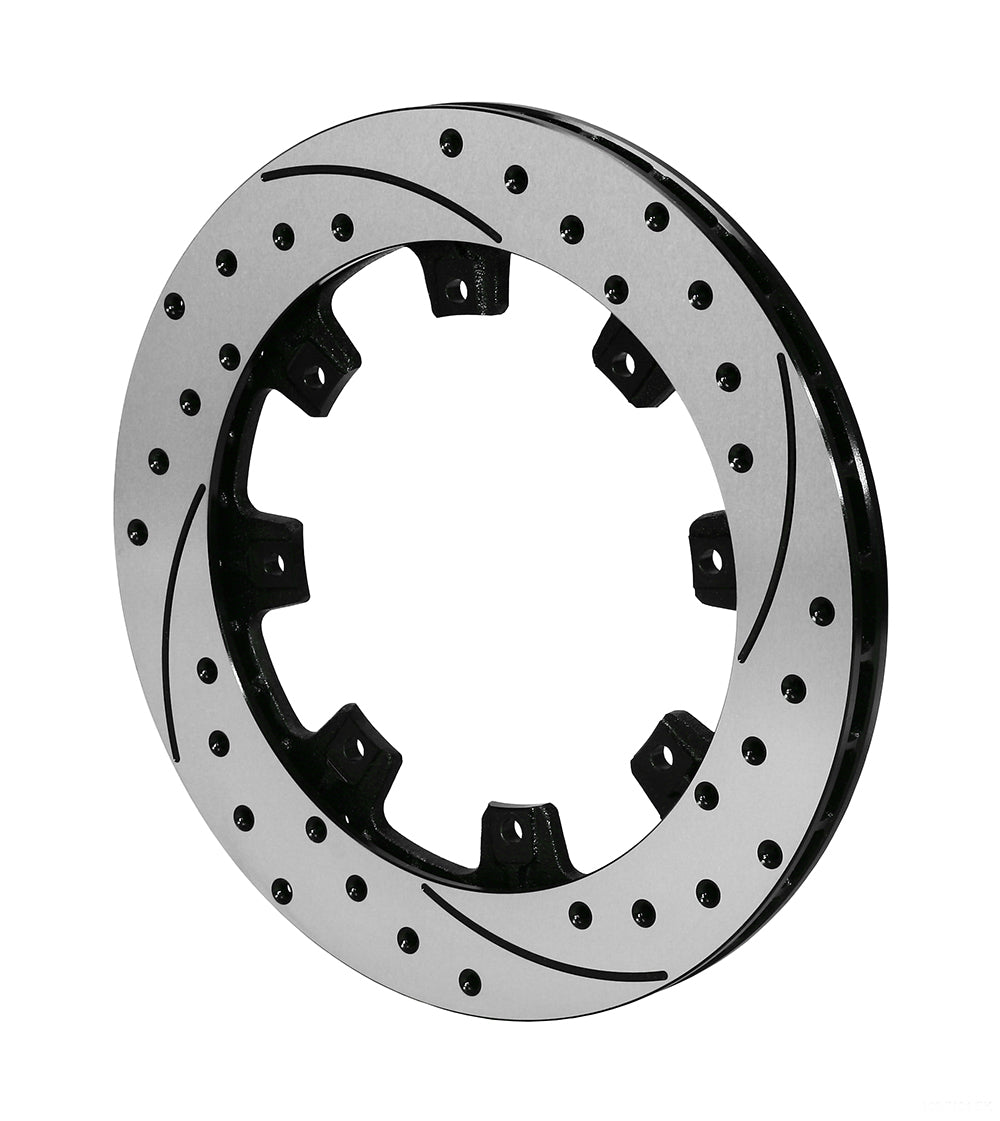

Wilwood Right-Hand 11.75-Inch SRP Ring, 32-Vane Iron with Black Electro-Coat

This right-hand SRP ring combines an 11.75-inch drilled-and-slotted face with a 32-vane iron core. Its 0.81-inch section and eight-hole mounting flange make it a specific alternative to the plain HP ring in a compatible assembly. Disc brake systems have been Wilwood’s focus since Bill Wood founded the company in 1977. Based in Camarillo, California, Wilwood designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. The rotor is one part of that system and needs compatible pads, calipers and mounting components.

Technical Details

• Manufacturer part number: 160-7101-BK
• Quantity: One rotor; not an axle pair
• Outside diameter: 11.75 inches
• Nominal thickness: 0.81 inches
• Rotor material: Iron
• Construction: 32 vanes
• Friction surface: SRP Drilled & Slotted
• Finish: Black Electro Coat
• Approximate weight: 8.00 lb
• Factory burnished: No
• Dynamically balanced: No
• Installation orientation: Right-hand
• Rotor attachment pattern: 8 x 7.00 inches
• Rotor mounting hole / thread: 0.326 inches
• Registration / lug inside diameter: 6.38 inches
• Far-side inside diameter: 8.34 inches
• Opposite-hand companion rotor: 160-7102-BK (sold separately)
• Intended use and restrictions: For racing durability, Wilwood recommends comparable ULHP or GT rotors. Suitable for moderate-temperature racing and street use. Medium-weight castings.

The hat or hub, fasteners, caliper and pads are not included.

Fitment & Compatibility

Check the 8.34-inch far-side clearance and 0.326-inch attachment holes. Review the comparable ULHP or GT rotor when durability under racing duty takes precedence in component selection.
