Product details

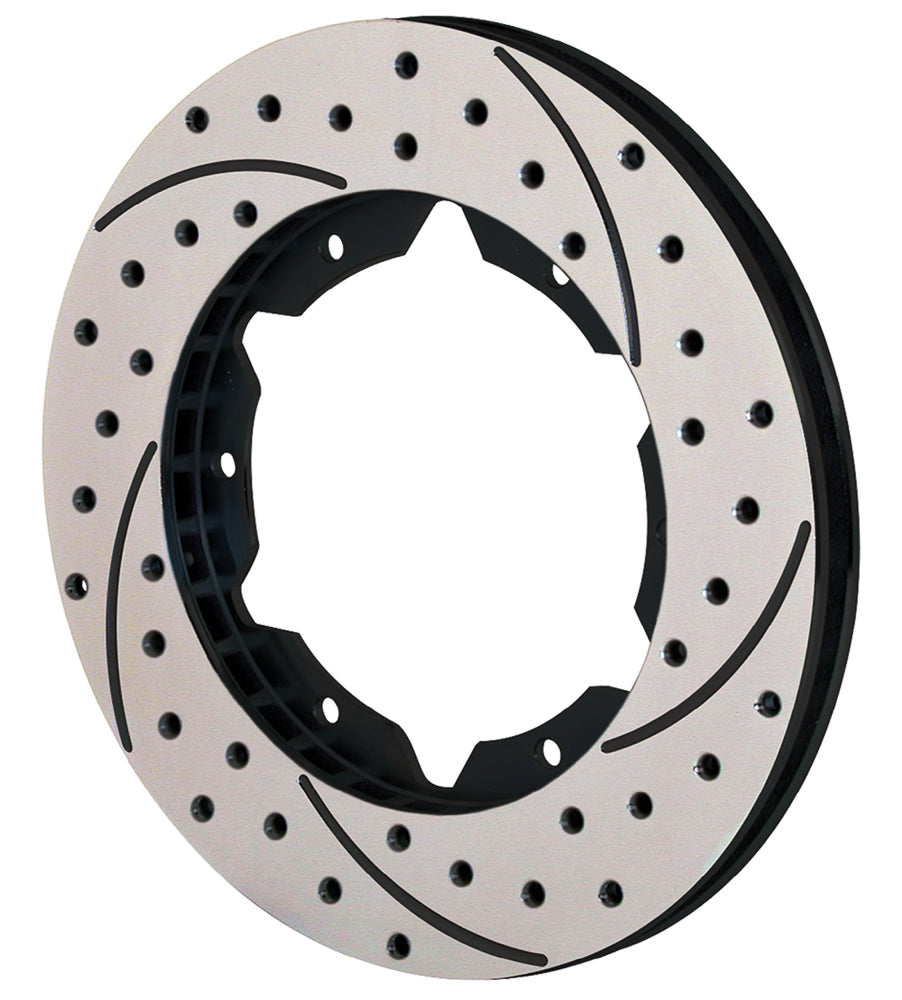

An 11-inch outside diameter provides the required pad sweep for this right-side SRP replacement. The drilled-and-slotted iron ring is 0.81 inch thick and black electro-coated, with 30 vanes behind the friction faces. Bill Wood established Wilwood in 1977. From Camarillo, California, the company designs and manufactures disc brake systems covering motorsport, street performance and specialized applications, with calipers, rotors, master cylinders, valves, fittings and lines in its product range. This rotor should be selected with the mounting arrangement, friction compound and hydraulic system in mind.
Technical Details
- Manufacturer part number: 160-7099-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.00 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 30 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 7.70 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Right-hand
- Rotor attachment pattern: 6 x 6.25 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 5.59 inches
- Far-side inside diameter: 7.42 inches
- Opposite-hand companion rotor: 160-7100-BK (sold separately)
- Intended use and restrictions: For racing durability, Wilwood recommends comparable ULHP or GT rotors. Suitable for moderate-temperature racing and street use. Medium-weight castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Match the six-on-6.25-inch rotor connection and 0.326-inch holes. Comparable ULHP or GT rotors may be the appropriate choice where maximum racing durability is required.
Wilwood product specifications · Rotor dimension diagram
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
