Product details

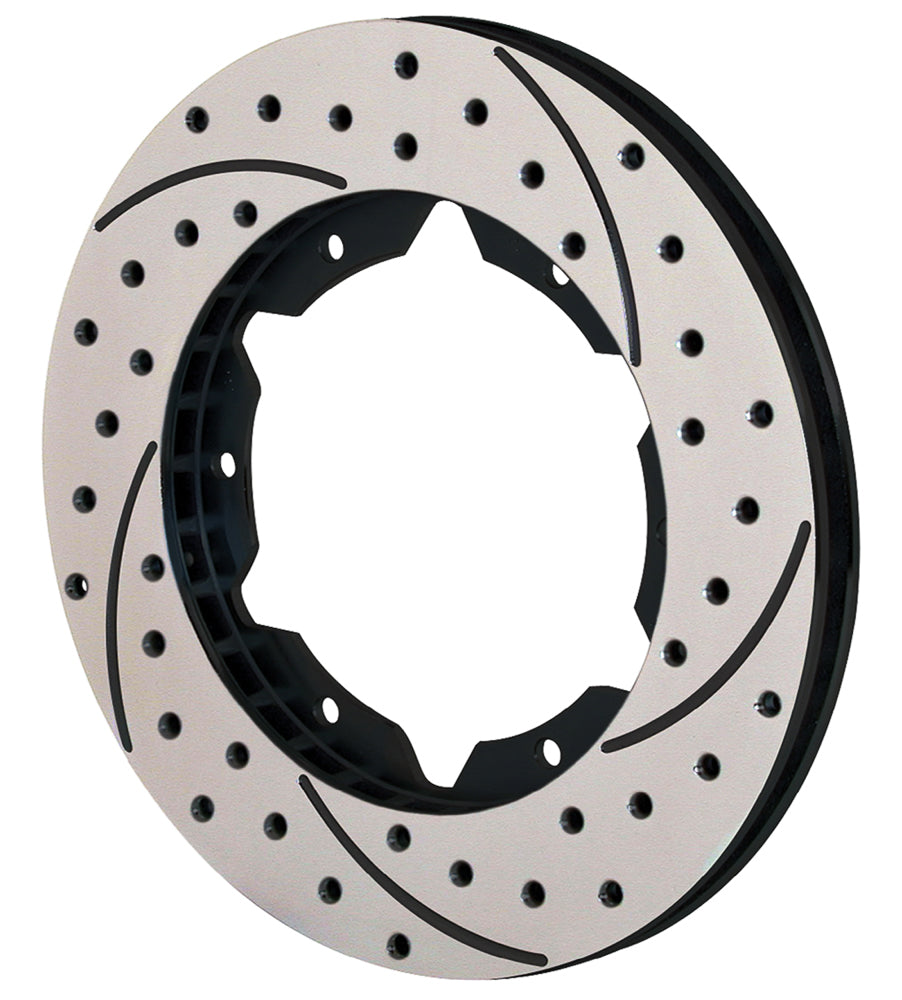

Directional drilling and slots give this right-hand compact rotor its SRP working surface. The 10.75-inch iron ring uses 30 vanes and a 0.81-inch section, with a six-hole attachment flange for the matching hat. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-7097-BK
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.75 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 30 vanes
- Friction surface: SRP Drilled & Slotted
- Finish: Black Electro Coat
- Approximate weight: 7.20 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Right-hand
- Rotor attachment pattern: 6 x 6.25 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 5.59 inches
- Far-side inside diameter: 7.00 inches
- Opposite-hand companion rotor: 160-7098-BK (sold separately)
- Intended use and restrictions: For racing durability, Wilwood recommends comparable ULHP or GT rotors. Suitable for moderate-temperature racing and street use. Medium-weight castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the 0.326-inch holes and 7.00-inch far-side inside diameter. Wilwood points to comparable ULHP or GT rotors when racing durability is the main priority.
Wilwood product specifications · Rotor dimension diagram
PMB Performance brings more than 20 years of brake expertise to component selection. Contact us with your existing rotor and brake-package details if you need help checking the match.
