Product details

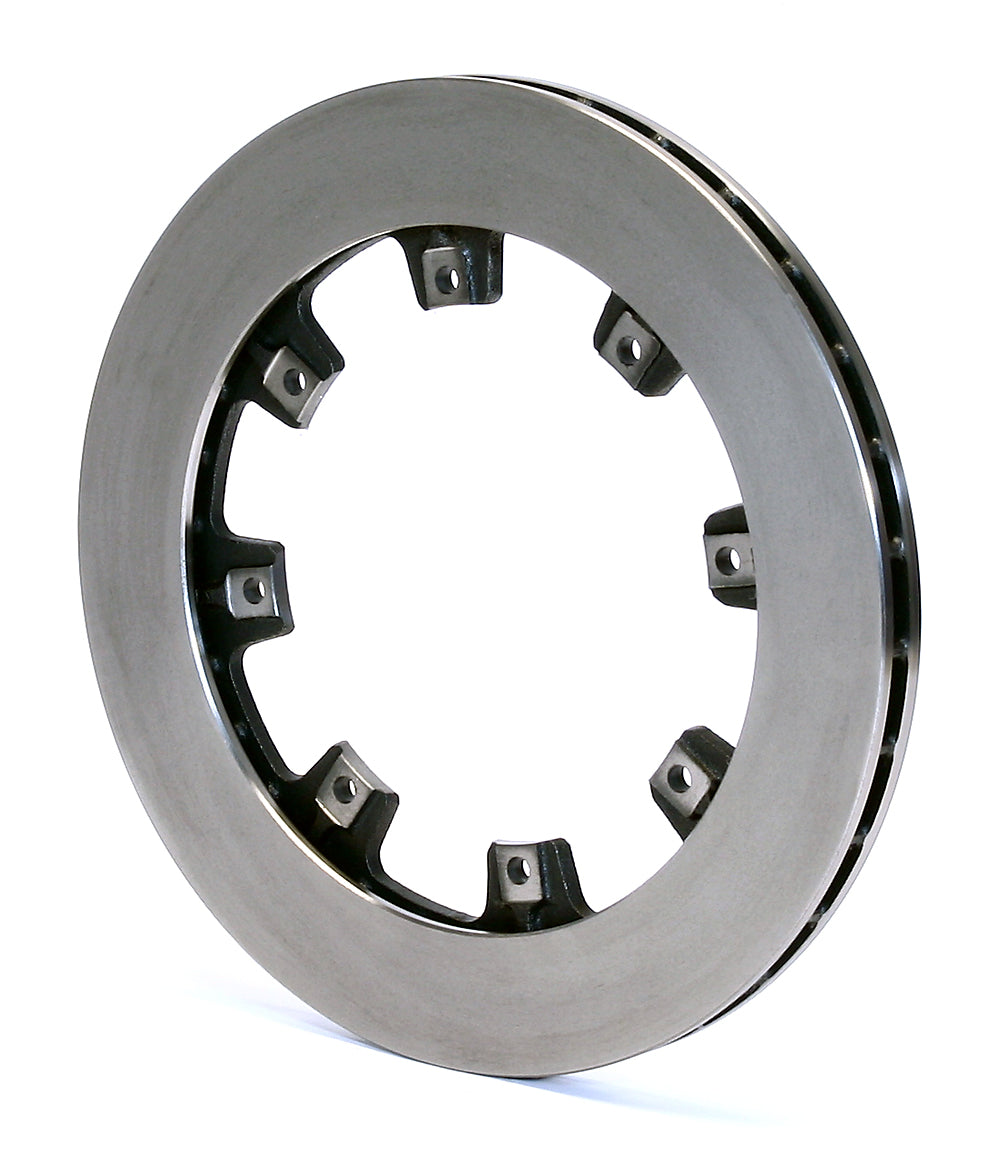

The wide center opening of this HP ring matches the 7.78-inch eight-hole attachment arrangement. Its 12.19-inch outside diameter and 0.81-inch thickness are shared by other rotor families, making the 7.29-inch register essential to identifying the correct version. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-6984
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.19 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 32 vanes
- Friction surface: Plain Face
- Finish: Plain
- Approximate weight: 8.60 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 8 x 7.78 inches
- Rotor mounting hole / thread: 0.251 inches
- Registration / lug inside diameter: 7.29 inches
- Far-side inside diameter: 8.53 inches
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Medium-weight castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Verify the 0.251-inch mounting holes and 8.53-inch far-side clearance. Use the plain 32-vane ring only where the complete brake assembly specifies this flange geometry.
Wilwood product specifications · Rotor dimension diagram
PMB Performance brings more than 20 years of brake expertise to component selection. Contact us with your existing rotor and brake-package details if you need help checking the match.
