Product details

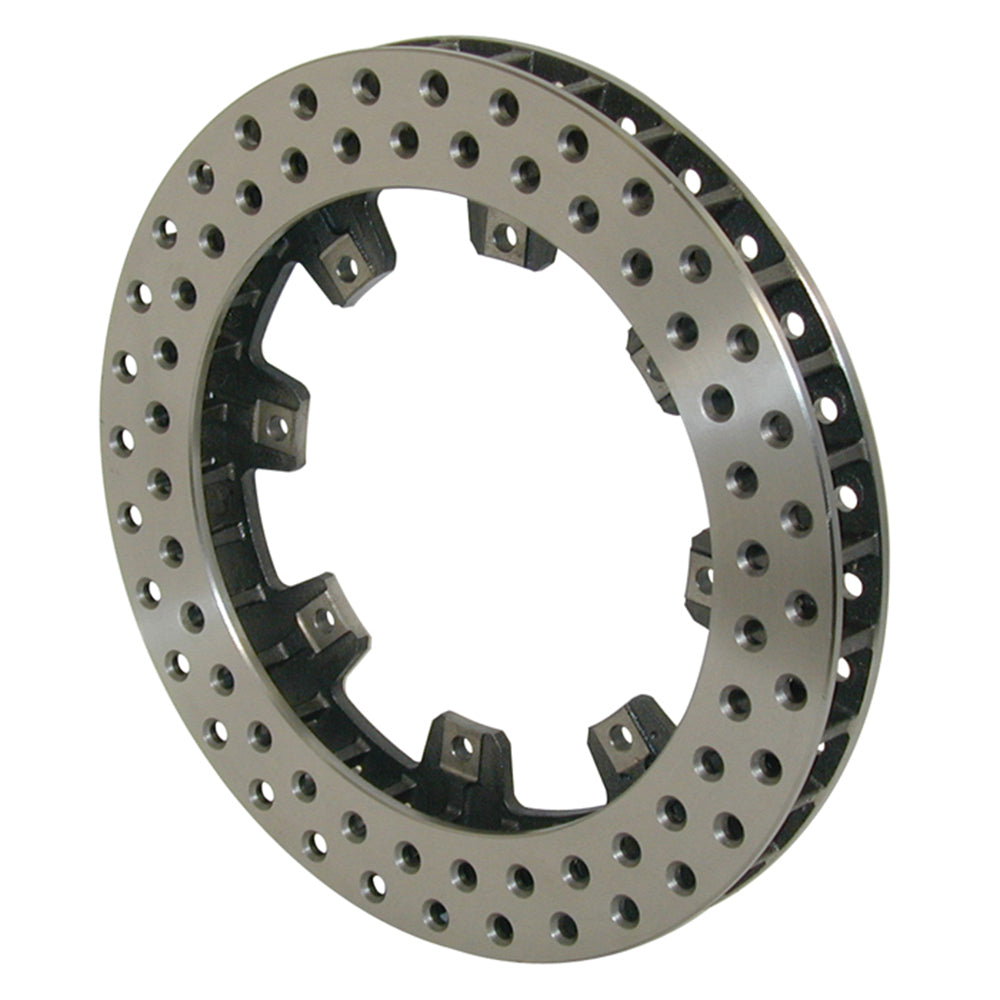

The larger 12.19-inch race-drilled ring maintains a 0.81-inch vented section for the corresponding dirt-racing assembly. Its iron casting is extensively drilled and should be chosen for the approved racing duty, not simply for its lower mass. Camarillo, California is home to Wilwood, founded by Bill Wood in 1977. The company designs and manufactures disc brake systems for motorsport, street performance and specialized applications, supplying rotors, calipers, master cylinders, valves, fittings and lines. Matching the rotor to the complete assembly matters as much as selecting its diameter or surface treatment.
Technical Details
- Manufacturer part number: 160-5865
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.19 inches
- Nominal thickness: 0.81 inches
- Rotor material: Iron
- Construction: 32 vanes
- Friction surface: Race Drilled
- Finish: Plain
- Approximate weight: 8.00 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 6.38 inches
- Far-side inside diameter: 8.56 inches
- Intended use and restrictions: For light to moderate dirt racing. Race-drilled rotors are unsafe for street use and can fail if misused.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Use only in appropriate light-to-moderate dirt-racing brakes. Misuse can cause failure; confirm the 6.38-inch register and 8.56-inch far-side inside diameter with the carrier.
