Product details

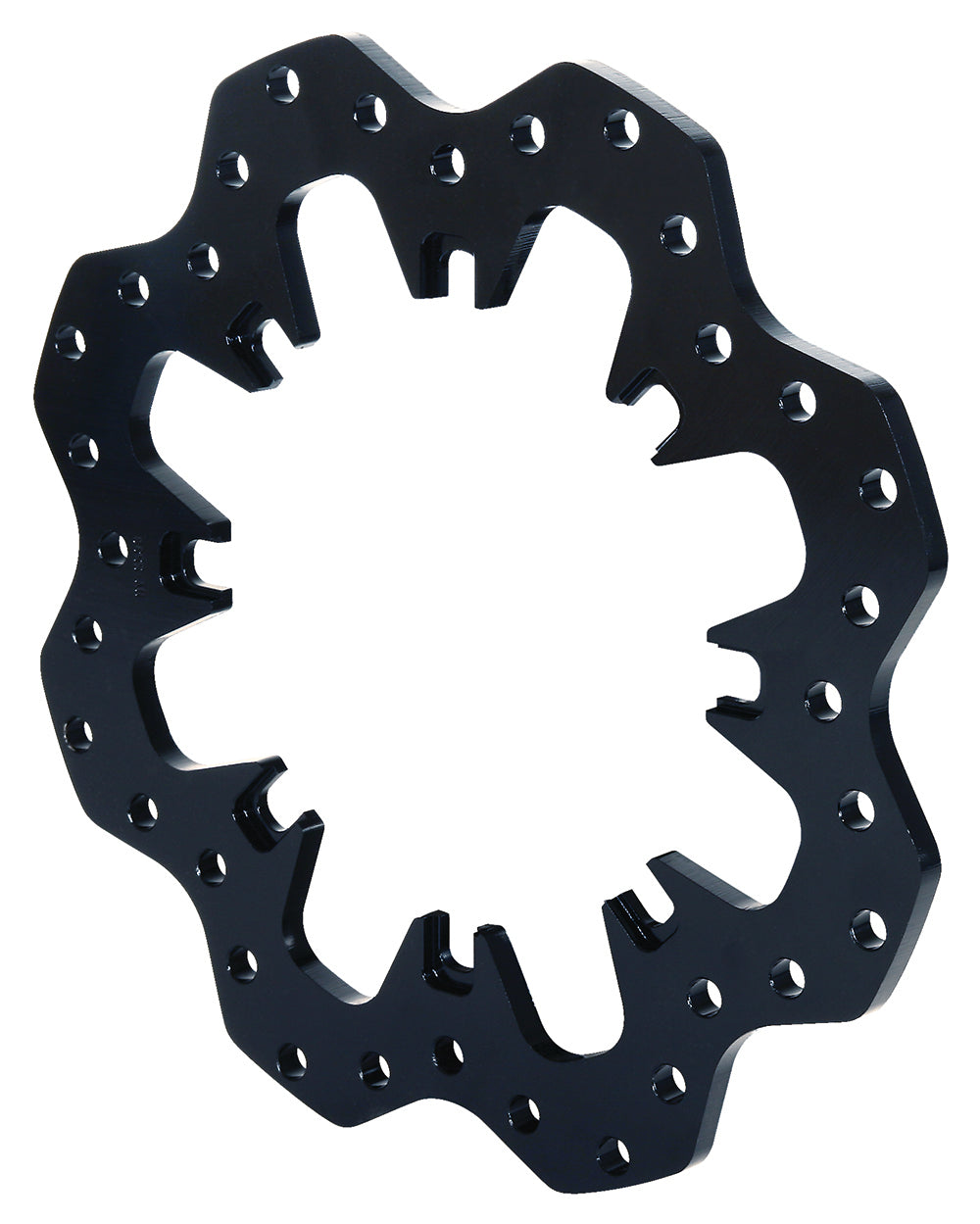

A scalloped outer edge and drilled face remove material from this 11.75-inch steel racing ring. Its dynamic mounting system allows the specified floating connection, which must be distinguished from a fixed rotor sharing an eight-on-seven-inch nominal interface. Wilwood began in 1977 with founder Bill Wood and is based in Camarillo, California, where it designs and manufactures disc brake systems. Calipers and rotors sit alongside master cylinders, valves, fittings and lines in a range serving motorsport, street performance and specialized applications. Selecting these parts together is essential to a correctly matched brake installation.
Technical Details
- Manufacturer part number: 160-5855
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 0.35 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Electro Coat
- Approximate weight: 4.50 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.316 inches
- Registration / lug inside diameter: 6.56 inches
- Intended use and restrictions: Floating-mount design. For drag or dirt racing; not for street use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Not for street use. Match the floating carrier, drive hardware and 6.56-inch registration dimension; do not substitute a conventional fixed hat without the required engineering.
