Product details

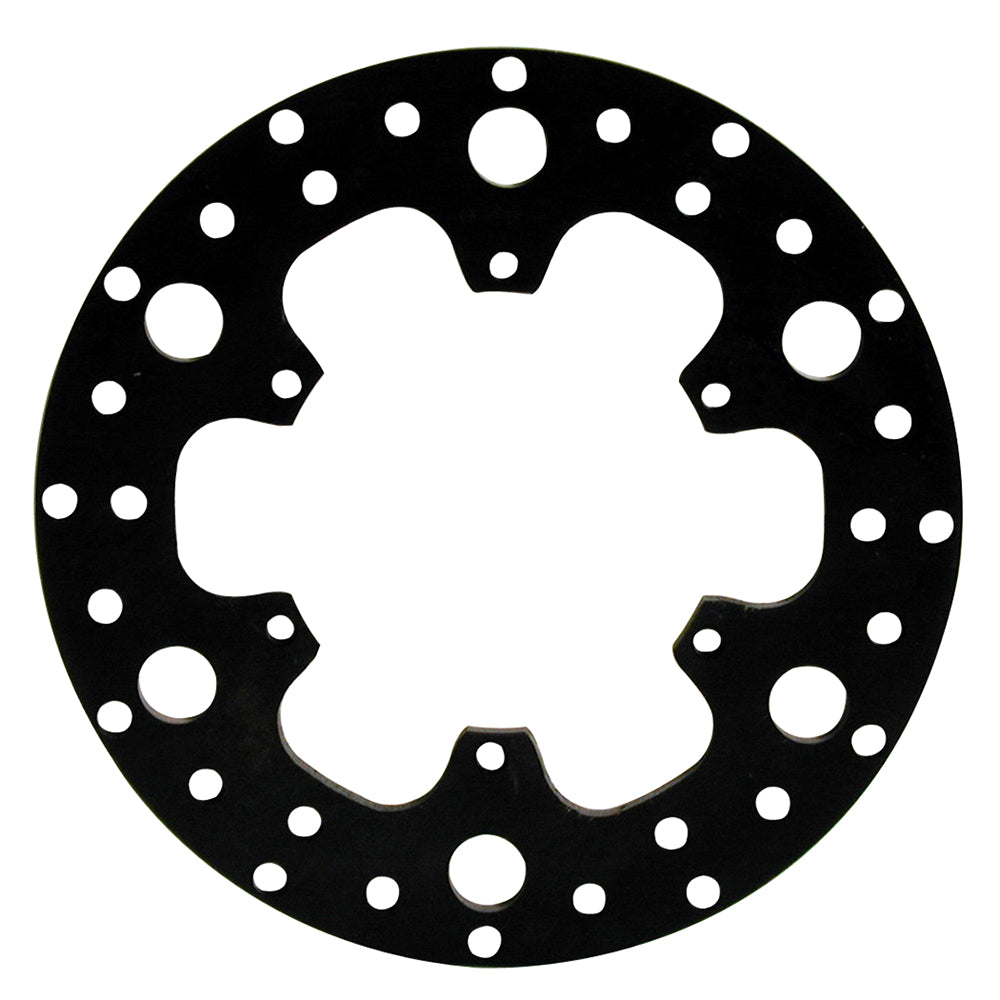

This thin steel rotor is intended for light asphalt and dirt racing where the complete brake package specifies a solid drilled ring. The 10.50-inch diameter and six-on-5.50-inch attachment circle resemble other compact rotors, but the 0.35-inch section has a distinct caliper requirement. A well-matched brake installation starts with compatible components. Wilwood designs and manufactures disc brake systems that include calipers, rotors, master cylinders, valves, fittings and lines, serving motorsport, street performance and specialized applications. Bill Wood founded the company in 1977 in Camarillo, California; this rotor should be evaluated as part of the complete braking package.
Technical Details
- Manufacturer part number: 160-3455
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.50 inches
- Nominal thickness: 0.35 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Electro Coat
- Approximate weight: 4.70 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 6 x 5.50 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 4.94 inches
- Intended use and restrictions: For light asphalt and dirt racing; not for street use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Not for street use. Confirm the 4.94-inch register, 0.326-inch mounting holes and the approved racing duty before installation.
Wilwood product specifications · Rotor dimension diagram
PMB Performance offers more than 20 years of brake experience and practical help with replacement parts. Contact our team if you need assistance confirming the rotor for your installation.
