Product details

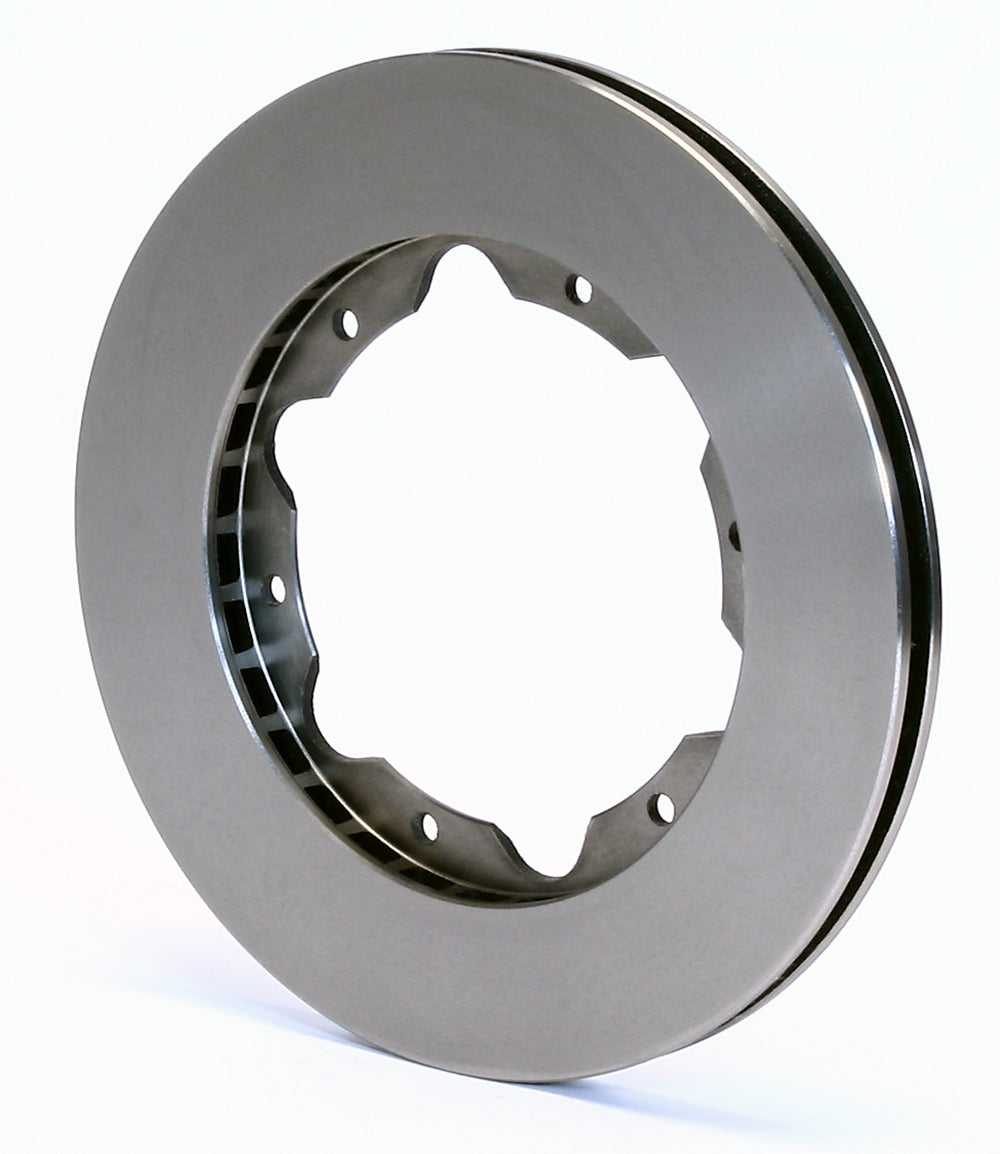

The 30-straight-vane core makes this compact Ultralite ring non-directional. Its 10.50-inch smooth friction face and 0.75-inch section use a six-hole mounting flange for the corresponding separate hat or hub. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-3450
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.50 inches
- Nominal thickness: 0.75 inches
- Rotor material: Iron
- Construction: 30 vanes
- Friction surface: Plain Face
- Finish: Plain
- Approximate weight: 6.60 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 6 x 5.50 inches
- Rotor mounting hole / thread: 0.326 inches
- Registration / lug inside diameter: 4.94 inches
- Far-side inside diameter: 6.75 inches
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Medium-weight castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Check the 5.50-inch attachment circle, 0.326-inch holes and 4.94-inch register. Match the rotor to the specified street or moderate-temperature racing assembly.
Wilwood product specifications · Rotor dimension diagram
Put PMB Performance’s 20-plus years of brake knowledge to work when matching this part to your build. We can help review the dimensions and application requirements.
