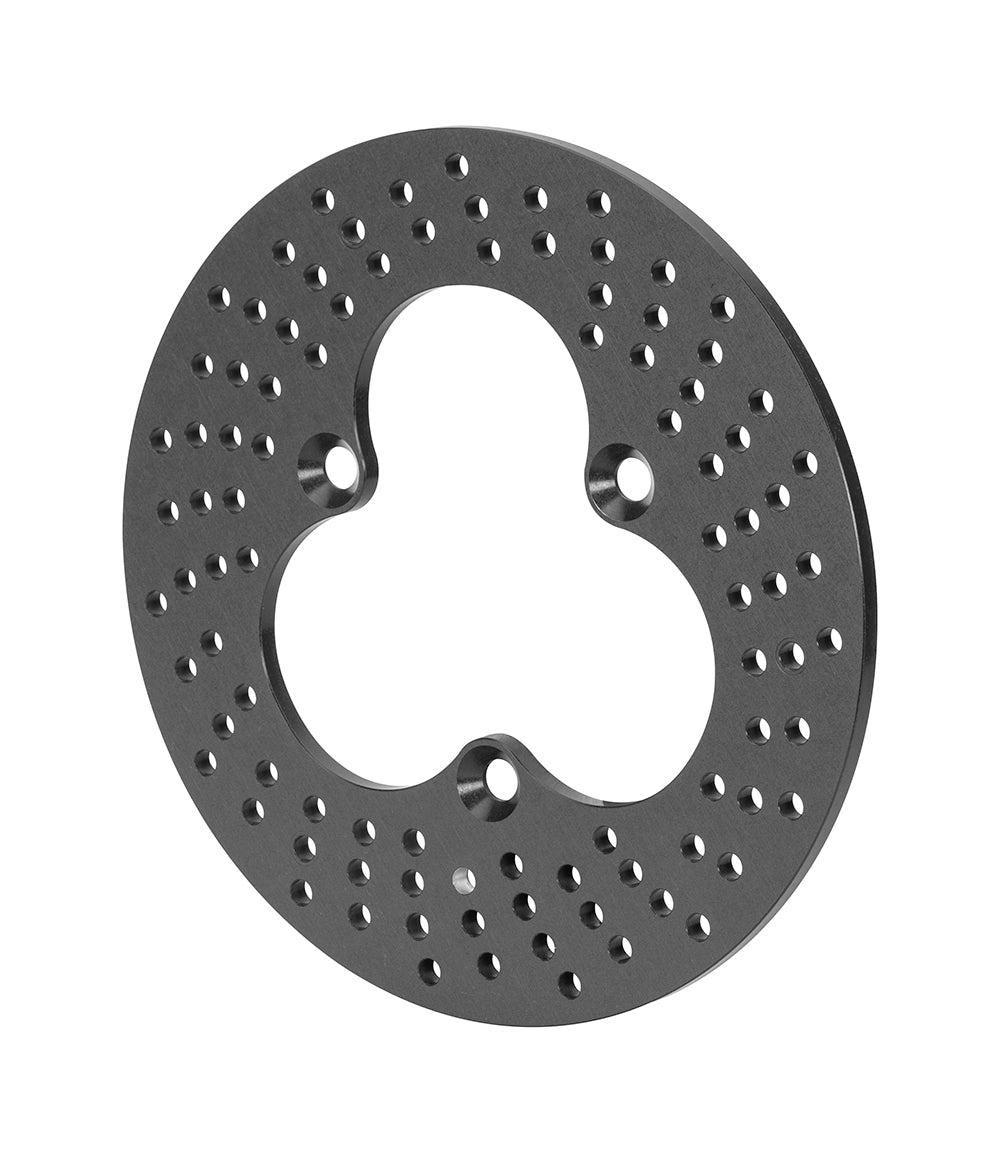

Wilwood Front Aluminum Sprint/Midget Rotor, Three-Hole Hard-Anodized Design

This Type III hard-anodized aluminum rotor uses a three-hole front-hub connection for specific Sprint and Midget racing applications. Its 0.31-inch section and drilled face are firmly identified, but conflicting manufacturer diameter references require confirmation before the exact ring is selected. Established in 1977 by Bill Wood, Wilwood develops its range around complete disc brake systems. The Camarillo, California manufacturer designs and manufactures calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Installation geometry, pad selection and braking duty should be considered together when choosing this component.

Technical Details

• Manufacturer part number: 160-3327A
• Quantity: One rotor; not an axle pair
• Nominal thickness: 0.31 inches
• Rotor material: Aluminum
• Construction: Solid
• Friction surface: Drilled
• Finish: Type III Ano
• Approximate weight: 1.80 lb
• Factory burnished: No
• Dynamically balanced: No
• Installation orientation: Non-directional
• Rotor attachment pattern: 3 x 5.00 inches
• Rotor mounting hole / thread: 0.516 inches
• Registration / lug inside diameter: 3.88 inches
• Outside-diameter references: Product page: 10.95 inches; flyer FL506: 10.20 inches; confirmation required
• Intended use and restrictions: The product page recommends Purple compound pads; see the compatibility confirmation below. Restricted racing applications only, including dirt Sprint and Midget racing. Unsafe for street use and unsuitable for most forms of racing. Misuse can cause catastrophic failure.

The hat or hub, fasteners, caliper and pads are not included.

Fitment & Compatibility

For the specified 3 x 5.00-inch Sprint/Midget front hub only. Unsafe for street use and unsuitable for most forms of racing; misuse can cause catastrophic failure. Resolve the diameter and pad-compound discrepancies described below before installation.

Pad-compound confirmation: the current rotor page recommends Purple compound, while Wilwood flyer FL506 specifies PolyMatrix Q for the hard-anodized aluminum rotors. Obtain Wilwood’s current recommendation for the exact rotor and caliper before selecting pads; these references should not be treated as interchangeable approvals.

Diameter confirmation: Wilwood’s exact product page lists 10.95 inches, but its FL506 flyer and aluminum-rotor press release assign 10.20 inches to this part. The linked drawing contains generic dimension labels without numeric values. Confirm the physical rotor diameter with Wilwood before purchase; neither reference is assumed to override the other.

Wilwood product specifications · Rotor dimension diagram

For more than 20 years, PMB Performance has helped customers choose brake components. Share the details of your current setup for assistance with rotor selection.
