Product details

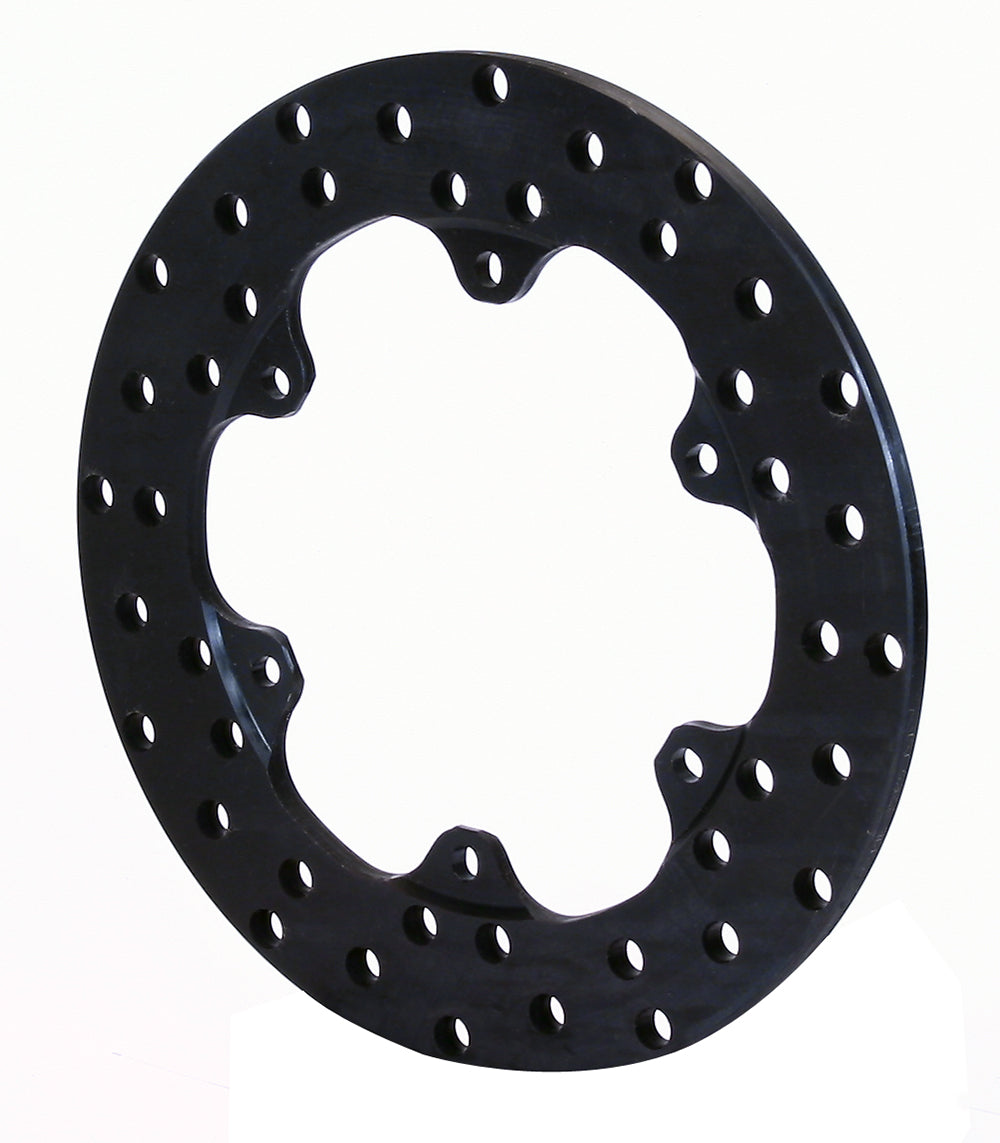

Black oxide is the listed finish on this solid steel drag rotor, rather than the electro-coat used on several similar rings. Its drilled 10.75-inch face and 0.35-inch section attach through six holes on a 6.25-inch circle. Camarillo, California is home to Wilwood, founded by Bill Wood in 1977. The company designs and manufactures disc brake systems for motorsport, street performance and specialized applications, supplying rotors, calipers, master cylinders, valves, fittings and lines. Matching the rotor to the complete assembly matters as much as selecting its diameter or surface treatment.
Technical Details
- Manufacturer part number: 160-3306
- Quantity: One rotor; not an axle pair
- Outside diameter: 10.75 inches
- Nominal thickness: 0.35 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Oxide
- Approximate weight: 4.70 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 6 x 6.25 inches
- Rotor mounting hole / thread: 0.316 inches
- Registration / lug inside diameter: 5.59 inches
- Intended use and restrictions: For drag racing only; not for street use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Not for street use. Match the drag-brake caliper and the 0.316-inch mounting holes, checking the 5.59-inch registration bore before assembly.
