Product details

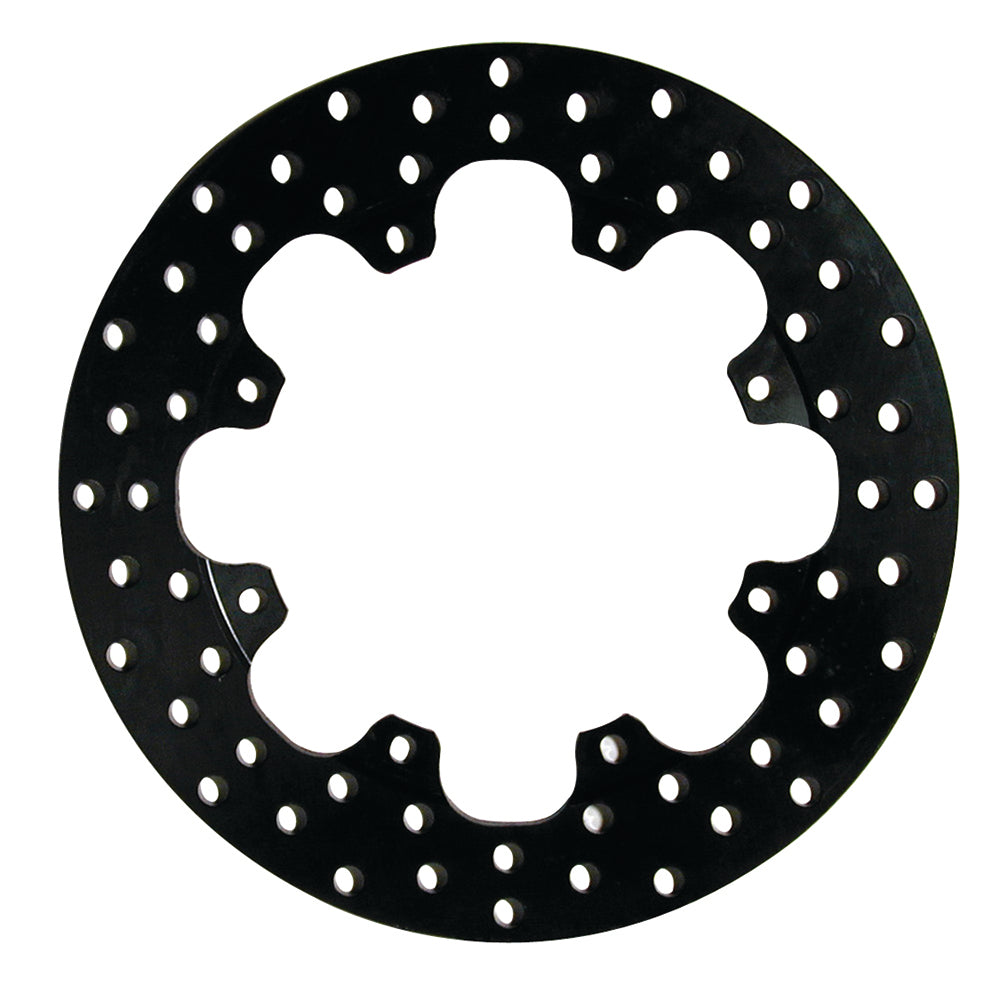

A drilled steel friction ring makes this a thin, solid rotor for the appropriate drag or dirt brake package. Its 11.75-inch outside diameter is paired with a 0.35-inch section, using eight conventional mounting holes rather than a lug-drive center. Founded by Bill Wood in 1977, Wilwood designs and manufactures disc brake systems in Camarillo, California. Its range includes calipers, rotors, master cylinders, valves, fittings and lines for motorsport, street performance and specialized applications. Rotor choice belongs within that complete system: the caliper, pad, mounting hardware and intended duty must work together.
Technical Details
- Manufacturer part number: 160-3202
- Quantity: One rotor; not an axle pair
- Outside diameter: 11.75 inches
- Nominal thickness: 0.35 inches
- Rotor material: Steel
- Construction: Solid
- Friction surface: Drilled
- Finish: Black Electro Coat
- Approximate weight: 5.30 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Non-directional
- Rotor attachment pattern: 8 x 7.00 inches
- Rotor mounting hole / thread: 0.316 inches
- Registration / lug inside diameter: 6.38 inches
- Intended use and restrictions: For drag or dirt racing; not for street use.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Not for street use. Match the 8 x 7.00-inch carrier connection, 0.316-inch holes and 6.38-inch register to the intended racing assembly.
Wilwood product specifications · Rotor dimension diagram
With over 20 years of brake experience, PMB Performance can help you compare the installed assembly with this rotor’s dimensions before ordering.
