Product details

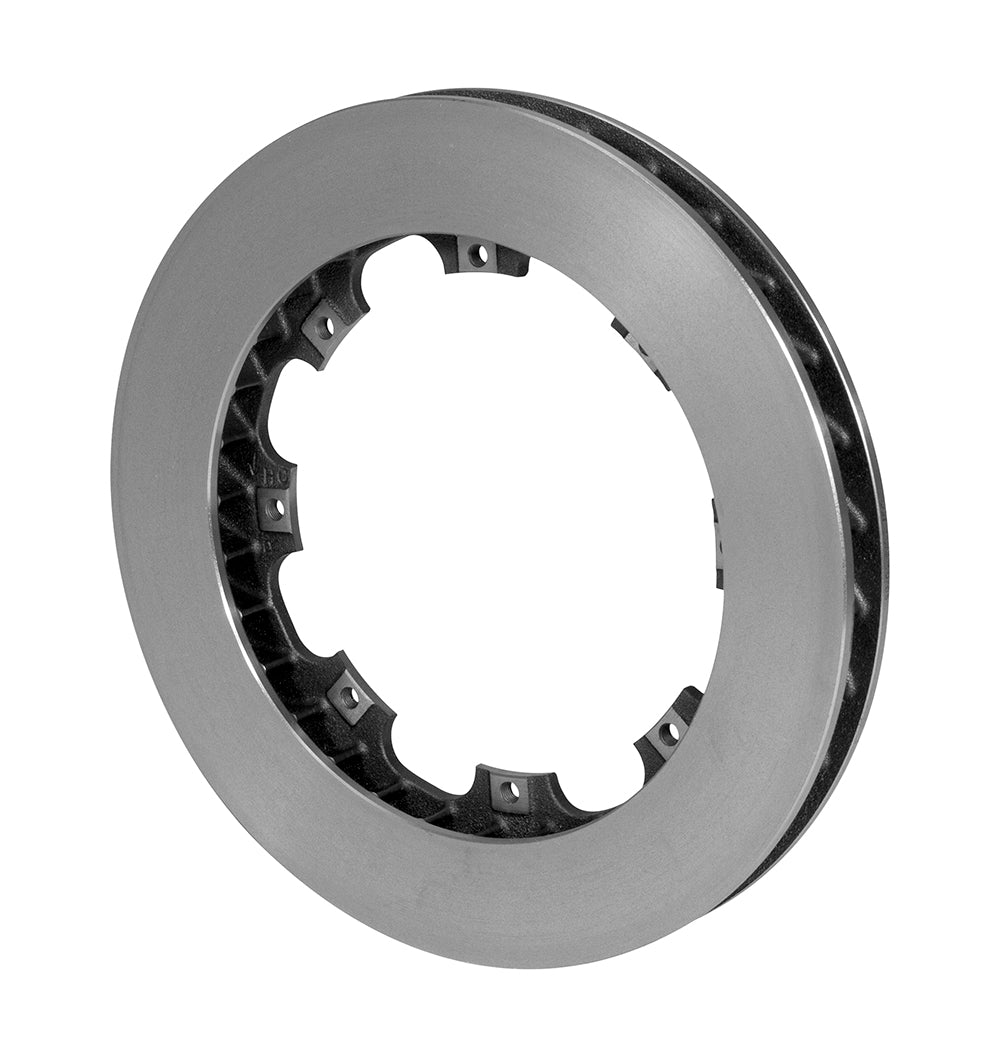

Eight threaded mounting points attach this left-hand Ultralite ring to its intended hat or hub. The 12.19 x 1.25-inch iron casting uses a 32-curved-vane core and plain faces, preserving the geometry of the matching thick-rotor package. Founded in 1977, Bill Wood’s Wilwood is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street performance and specialized applications. Its range runs from calipers and rotors to master cylinders, valves, fittings and lines. Choosing a rotor involves matching those surrounding components as well as the vehicle’s intended use.
Technical Details
- Manufacturer part number: 160-2901
- Quantity: One rotor; not an axle pair
- Outside diameter: 12.19 inches
- Nominal thickness: 1.25 inches
- Rotor material: Iron
- Construction: 32 curved vanes
- Friction surface: Plain Face
- Finish: Plain
- Approximate weight: 10.10 lb
- Factory burnished: No
- Dynamically balanced: No
- Installation orientation: Left-hand
- Rotor attachment pattern: 8 x 7.62 inches
- Rotor mounting hole / thread: 5/16-24
- Registration / lug inside diameter: 7.13 inches
- Far-side inside diameter: 8.50 inches
- Opposite-hand companion rotor: 160-2900 (sold separately)
- Intended use and restrictions: Suitable for moderate-temperature racing and street use. Medium-weight castings.
The hat or hub, fasteners, caliper and pads are not included.
Fitment & Compatibility
Confirm the 5/16-24 threads, 7.13-inch registration diameter and left-side installation. The rotor attachment circle is separate from the vehicle’s wheel pattern.
